Nipple 8192210

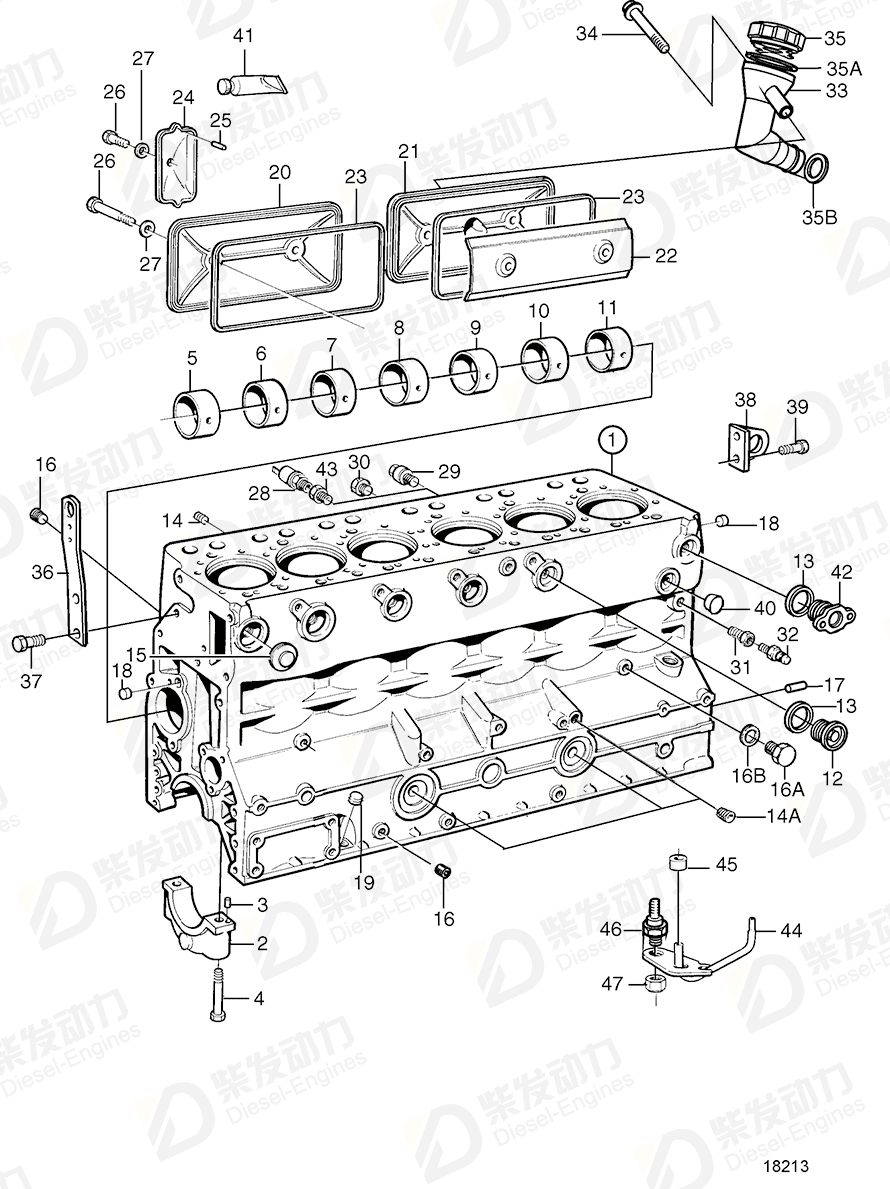

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Cylinder block |
420990 |
1 |
SN2061186155- |
| 3 |
Pin |
422426 |
1 |
|
| 4 |
Flange screw |
465899 |
14 |
|
| 5 |
Bushing |
422076 |
1 |
|
| 6 |
Bushing |
422077 |
1 |
|
| 7 |
Bushing |
422078 |
1 |
|
| 8 |
Bushing |
422079 |
1 |
|
| 9 |
Bushing |
422080 |
1 |
|
| 10 |
Bushing |
422081 |
1 |
|
| 11 |
Bushing |
422082 |
1 |
|
| 12 |
Plug |
467367 |
2 |
|
| 13 |
Gasket |
469328 |
3 |
|
| 14 |
Plug |
422369 |
2 |
|
| 14 |
Plug |
479979 |
5 |
|
| 15 |
Expansion plug |
968955 |
4 |
(941256) |
| 16 |
Plug |
952075 |
2 |
|
| 17 |
Pin |
191171 |
2 |
|
| 18 |
Cap plug |
955082 |
6 |
|
| 19 |
Cap plug |
955082 |
1 |
|
| 20 |
Inspection cover |
420120 |
1 |
|
| 21 |
Inspection cover |
420121 |
1 |
|
| 22 |
Splash plate |
471858 |
1 |
|
| 23 |
Gasket |
421121 |
2 |
|
| 24 |
Cover |
471854 |
1 |
|
| 25 |
Spring pin |
951973 |
1 |
|
| 26 |
Shoulder screw |
471855 |
5 |
|
| 27 |
Sealing ring |
471856 |
5 |
|
| 29 |
Nipple |
8192210 |
1 |
|
| 30 |
Plug |
479979 |
2 |
|
| 31 |
Nipple |
479954 |
1 |
(190130) |
| 32 |
Shut-off cock |
949918 |
1 |
(82745) |
| 33 |
Oil filler pipe |
3831123 |
1 |
|
| 34 |
Flange screw |
969189 |
1 |
L=85mm |
| 35 |
Oil filler cap |
421753 |
1 |
|
| 37 |
Flange screw |
965191 |
2 |
|
| 39 |
Flange screw |
965225 |
2 |
|
| 40 |
Expansion plug |
420589 |
1 |
|
| 41 |
Sealant |
1161231 |
1 |
304ml |
| 43 |
Elbow nipple |
809109 |
1 |
Later prod |
| 44 |
Piston cooling jet |
477437 |
6 |
|
| 45 |
Sealing ring |
466874 |
6 |
|
| 46 |
Stud |
471596 |
6 |
|
| 47 |
Lock nut |
948570 |
6 |
|
| 14A |
Plug |
968145 |
3 |
(952357) |
| 16A |
Plug |
965768 |
1 |
|
| 16B |
Gasket |
947281 |
1 |
|
| 35A |
Gasket |
1275379 |
1 |
|
| 35B |
Sealing ring |
421158 |
1 |
|
| Item |
Part Name |
Part No. |
| 29 |
Nipple 8192210 |
8192210 |
| Details |
| Engine model |
TD640VE |
| Application |
Cylinder Block |
