Nipple 835980

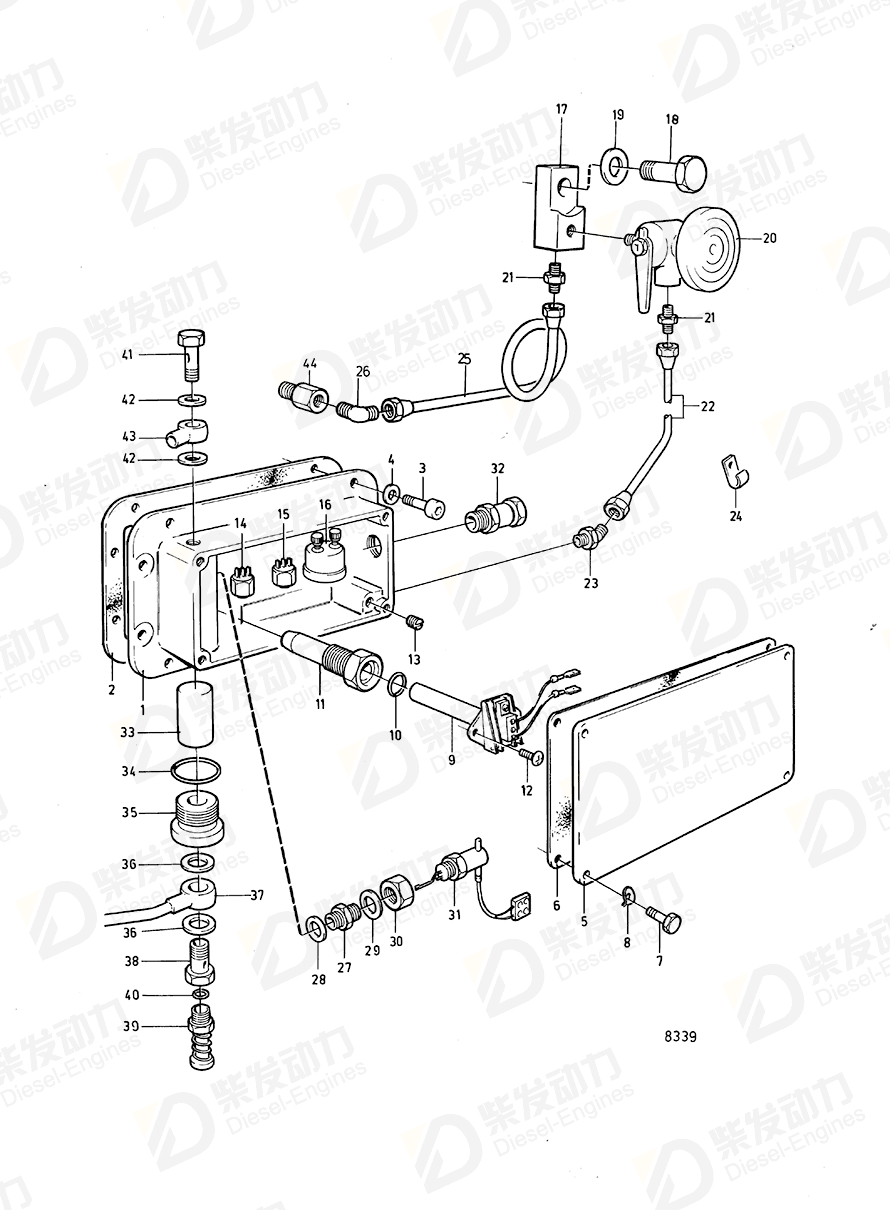

| No. | Part Name | Part Number | Qty | Description |
| 1 | Housing | 843635 | 1 | |
| 2 | Starter motor | 847307 | 1 | 24V |
| 3 | Hex. socket screw | 956569 | 12 | |
| 4 | Gasket | 11992 | 12 | |
| 5 | Cover | 843636 | 1 | |
| 6 | Gasket | 843638 | 1 | |
| 7 | Hexagon screw | 955271 | 4 | |
| 8 | Spring washer | 941906 | 4 | |
| 9 | Thermo monitor | 843768 | 1 | |
| 10 | Gasket | 957179 | 1 | For governor 225-1200. |
| 11 | Sleeve | 843288 | 1 | |
| 12 | Cross recessed screw | 956062 | 2 | |
| 13 | Plug | 16325 | 5 | |
| 14 | Pressure switch | 848368 | 1 | Alarm (843813) |
| 15 | Pressure monitor | 864284 | 1 | Stop (848367) |
| 16 | Sensor | 881432 | 1 | |
| 17 | Bracket | 844120 | 1 | |
| 18 | Hexagon screw | 955568 | 1 | For bracket 829839 with 8 holes., L=76mm |
| 19 | Washer | 955898 | 1 | Late type |
| 20 | Cock | 836273 | 1 | |
| 21 | Nipple | 954335 | 2 | |
| 22 | Tube | 845690 | 1 | |
| 22 | Oil pipe | 846618 | 1 | Engine with oil supervision in rear oil pan cover |
| 23 | Nipple | 831965 | 1 | |
| 24 | Attaching clamp | 18301 | 1 | |
| 24 | Clamp | 942400 | 2 | |
| 25 | Tube | 845689 | 1 | When oil supervision is mounted., See group 3 |
| 26 | Elbow nipple | 954342 | 1 | |
| 27 | Nipple | 843688 | 1 | |
| 28 | Gasket | 15304 | 1 | |
| 29 | Gasket | 957181 | 1 | |
| 30 | Lock nut | 843640 | 1 | |
| 31 | Flow monitor | 843757 | 1 | |
| 32 | Grommet | 881193 | 1 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 33 | Float | 843815 | 1 | |
| 34 | Gasket | 957191 | 1 | |
| 35 | Plug | 843639 | 1 | |
| 36 | Gasket | 957178 | 2 | |
| 37 | Draining pipe | 845674 | 1 | See group 3 |
| 37 | Oil pipe | 846617 | 1 | Engine with oil supervision in rear oil pan cover |
| 38 | Hollow screw | 823417 | 1 | |
| 39 | Valve | 844770 | 1 | |
| 40 | O-ring | 960202 | 1 | |
| 41 | Hollow screw | 25167 | 1 | |
| 42 | Gasket | 957178 | 2 | |
| 43 | Banjo nipple | 25168 | 1 | |
| 44 | Nipple | 835980 | 1 |
| Item | Part Name | Part No. |
| 44 | Nipple 835980 | 835980 |
| Details | |
| Engine model | D70CHC, D70CRC, TD70CHC, TD70CRC TAD1030P TAD1030V, TWD1031VE TAD121CHC TAD1230P TAD1230P, TD121GP-87 TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TAD1230V TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100G-87, TID100K-87 TD100GG TD100GG-85 TD100GG-87 TD100GP TD100GP-85 TD100HP-87 TD100HPB-87 TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD121CHC TD121CRC TD121G-87 TD121GP-87 TD610G, TWD610G TD610M TD610M, TD630ME TD610V TD610V, TWD610V, TD630VE, TWD630VE, TD640VE TD61A TD61AG TD61AP TD61AW, TD61ACE TD630ME TD630VE TD710G, TWD710G, TAD730G TD71A, TID71A, TWD710V TD730VE, TWD731VE, TAD730V TID100K TID100K-87 TID100KG TID100KG-87 TID100KGP-87 TID100KP TID100KP-87 TID100KPB-87 TID61AG TWD1030ME TWD1210P, TWD1211P TWD1210V, TWD1211V, TWD1230VE, TWD1231VE TWD1230ME TWD610V TWD630ME TWD630VE TWD740GE, TAD740GE, TAD741GE |
| Application | Air Compressor 15, 5 W and Installation Components Air Compressor 15, 5W5 and Installation Components: A Air Compressor 15, 5W5 and Installation Components: B Air Compressor 15, 5W5 and Installation Components: C Air Compressor 15, 5W5 and Installation Components: TID100K87 Air Compressor 15.5 W31 Air Compressor Knorr LP48 ESS Air Compressor TUFLO 500 Air Compressor Wabco 704 Air Compressor, TUFLO 500 and Installation Components: A Air Compressor, TUFLO 500 and Installation Components: B Air Compressor, TUFLO 500 and Installation Components: C Air Compressor, TUFLO 500 and Installation Components: TID100K87 Contacts and Sensors Contacts and Sensors: A Contacts and Sensors: B Cylinder Block Cylinder Block: A Cylinder Block: B Electrical Materials Electrical Materials: A Electrical Materials: B Electrical Materials: C Electrical System and Instruments Electrical System and Instruments: 867903 Electrical System and Instruments: 867905 Electrical System and Instruments: 867906 Electrical System and Instruments: 867907 Electrical System and Instruments: 867909 Electrical System and Instruments: 867910 Electrical System and Instruments: 868125 Electrical System and Instruments: 868126 Electrical System and Instruments: 868127 Electrical System and Instruments: 868128 Electrical System and Instruments: 868129 Electrical System and Instruments: 868145 Electrical System and Instruments: 868450 Electrical System and Instruments: 868452 Electrical System and Instruments: A Electrical System and Instruments: B Electrical System and Instruments: C Electrical System and Instruments: TD100GGP-87 Oil and Fuel Supervision with Installation Components Oil and Fuel Supervision with Installation Components: A Oil and Fuel Supervision with Installation Components: B |
| Specification | |
| Descriptions | Early type |
Related Products
Tags: Nipple, Volvo Penta, 835980
