Nipple 843586

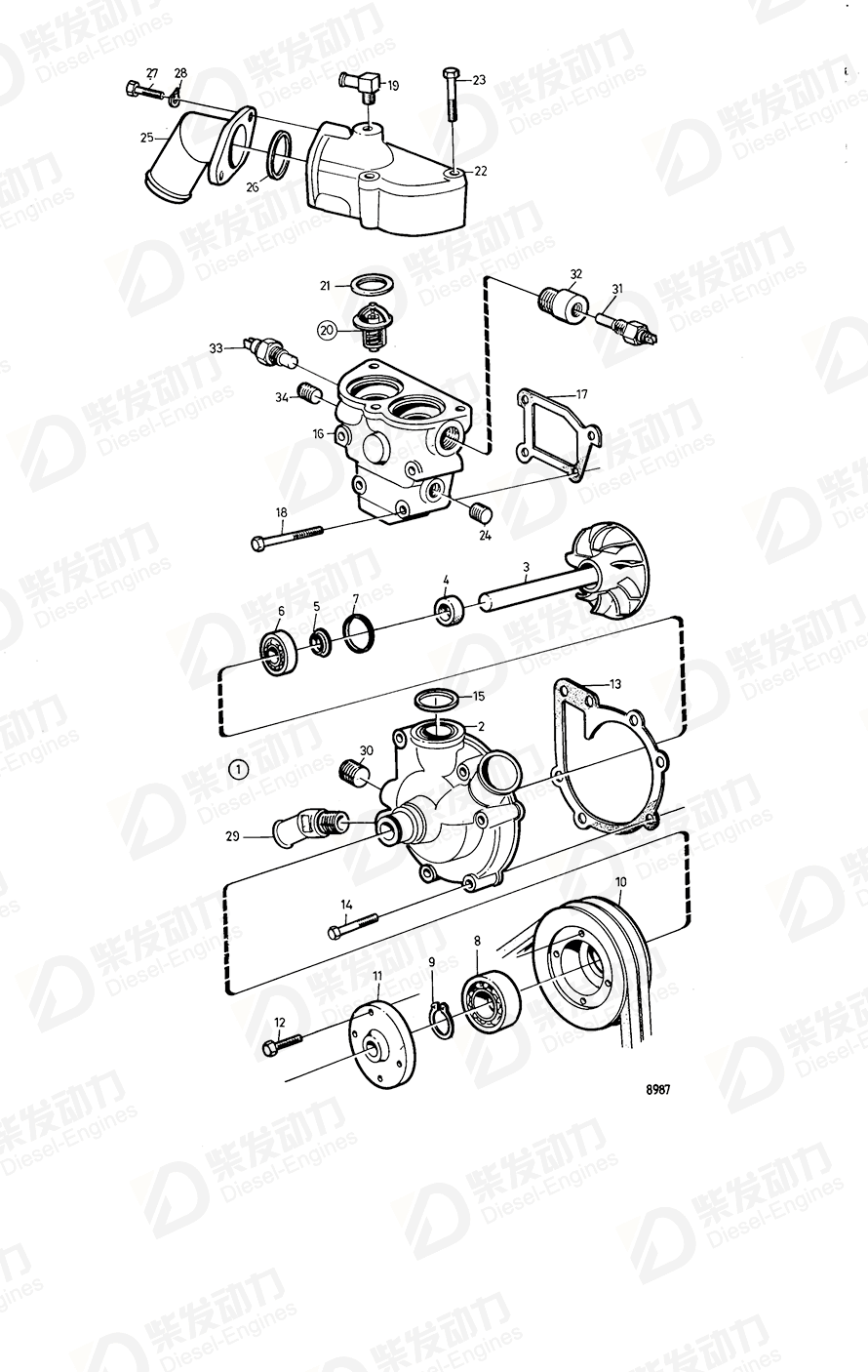

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 838938 | 1 | |
| 4 | Wear ring | 421306 | 1 | |
| 5 | Deflector | 70913 | 1 | |
| 6 | Ball bearing | 1660609 | 1 | (181670) |
| 7 | Sealing ring | 1545283 | 1 | (1542833) |
| 8 | Ball bearing | 181538 | 1 | |
| 9 | Retaining ring | 914462 | 1 | |
| 10 | Pulley | 1542235 | 1 | |
| 11 | Hub | 1542236 | 1 | |
| 12 | Flange screw | 946173 | 4 | |
| 13 | Gasket | 859027 | 1 | (1542229) |
| 14 | Flange screw | 947760 | 4 | M8x40mm |
| 14 | Flange screw | 965181 | 2 | |
| 15 | Sealing ring | 1542198 | 1 | |
| 16 | Thermostat housing | 1542186 | 1 | |
| 17 | Gasket | 1542187 | 1 | |
| 18 | Flange screw | 965180 | 2 | |
| 18 | Flange screw | 965184 | 2 | |
| 19 | Elbow nipple | 180283 | 1 | |
| 20 | Thermostat kit | 875787 | 1 | 76° |
| 20 | Thermostat kit | 875789 | 1 | (1544097) 76° |
| 21 | Sealing ring | 416033 | 2 | |
| 22 | Cover | 465122 | 1 | |
| 23 | Flange screw | 965188 | 3 | |
| 24 | Plug | 968145 | 1 | (952357) |
| 25 | Connecting pipe | 844853 | 1 | |
| 26 | O-ring | 925091 | 1 | |
| 27 | Hexagon screw | 940115 | 2 | |
| 28 | Spring washer | 942336 | 2 | |
| 29 | Nipple | 1542516 | 1 | MO17869- |
| 30 | Plug | 952077 | 1 | |
| 31 | Sensor | 827150 | 1 | AQ200D MO-11576, AQ225D MO-11736, AQ260A MO-11506, AQ290A MO-12259., Late type |
| 32 | Nipple | 843586 | 1 | |
| 33 | Thermo monitor | 822858 | 1 | 93°C,later prod |
| 34 | Repair kit | 875735 | 1 | See group 10A |
| 34 | Plug | 952077 | 1 |
| Item | Part Name | Part No. |
| 32 | Nipple 843586 | 843586 |
| Details | |
| Engine model | TD30A TD31ACE TD40A TD70G TD70G-83 TID70G |
| Application | Electrical System and Instruments Thermostat and Water Pump with Installation Components Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B |
| Specification | |
| Descriptions | MO109501/XXXXX- |
