Nipple 843688

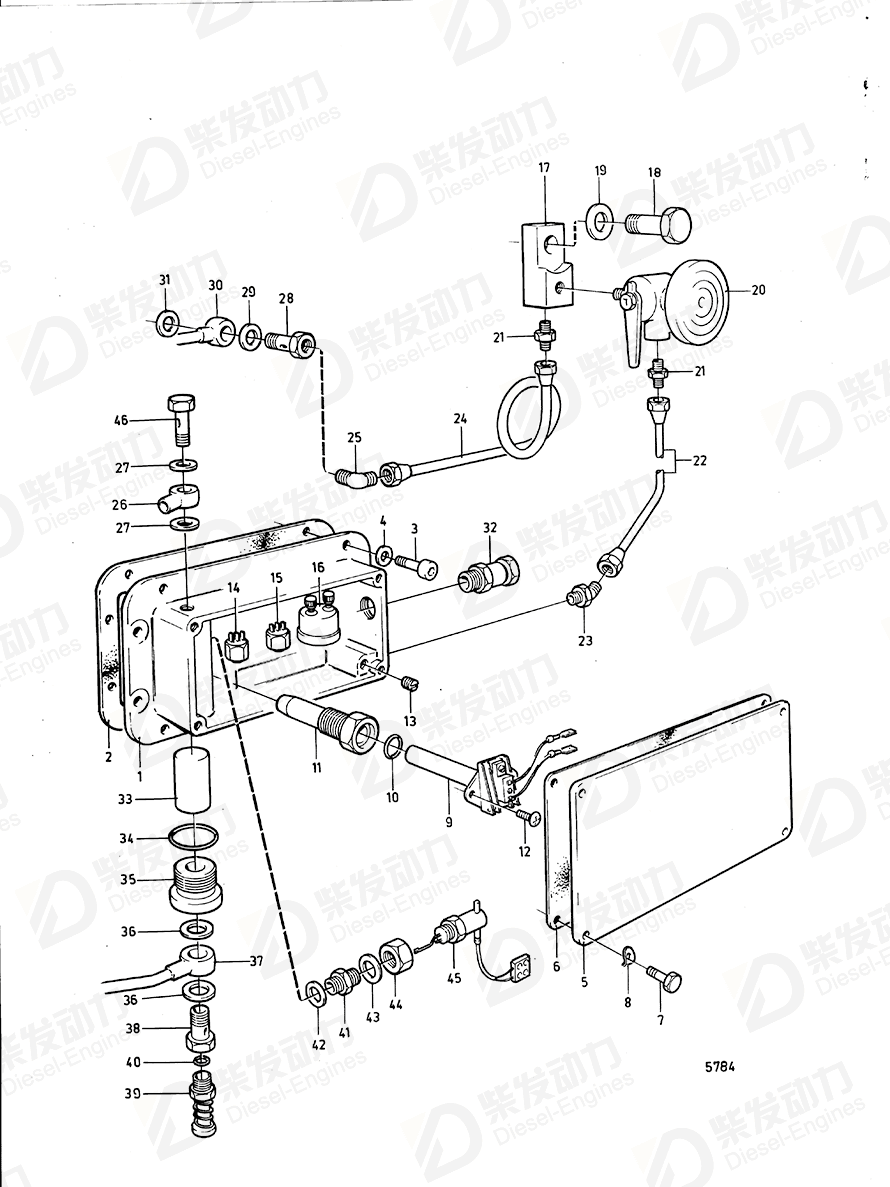

| No. | Part Name | Part Number | Qty | Description |
| 1 | Housing | 843635 | 1 | |
| 2 | Gasket | 823185 | 1 | |
| 3 | Hex. socket screw | 956569 | 12 | |
| 4 | Gasket | 11992 | 12 | |
| 5 | Cover | 843636 | 1 | |
| 6 | Gasket | 843638 | 1 | |
| 7 | Hexagon screw | 955271 | 4 | |
| 8 | Spring washer | 941906 | 4 | |
| 9 | Thermo monitor | 843768 | 1 | |
| 10 | Gasket | 957179 | 1 | For governor 225-1200. |
| 11 | Sleeve | 843288 | 1 | |
| 12 | Cross recessed screw | 956062 | 2 | |
| 13 | Plug | 16325 | 5 | |
| 14 | Contact | 843813 | 1 | |
| 15 | Contact | 843812 | 1 | |
| 16 | Sensor | 881432 | 1 | |
| 17 | Bracket | 844120 | 1 | |
| 18 | Hexagon screw | 955590 | 1 | For charging of 2 batteries,use charge distributor 831793 |
| 19 | Spring washer | 941912 | 1 | |
| 20 | Cock | 836273 | 1 | |
| 21 | Nipple | 954335 | 2 | |
| 22 | Oil pipe | 844284 | 1 | |
| 23 | Nipple | 831965 | 1 | |
| 24 | Oil pipe | 844283 | 1 | |
| 25 | Elbow nipple | 954342 | 1 | |
| 26 | Banjo nipple | 25168 | 1 | |
| 27 | Gasket | 957178 | 2 | |
| 28 | Hollow screw | 844116 | 1 | SEE GROUP 3 |
| 29 | Gasket | 942703 | 1 | |
| 31 | Gasket | 957181 | 1 | |
| 32 | Grommet | 881193 | 1 | Replaced by 1 alterator 841765 and 1 cable unit 841822. |
| 33 | Float | 843815 | 1 | |
| 34 | Gasket | 957191 | 1 | |
| 35 | Plug | 843639 | 1 | |
| 36 | Gasket | 957178 | 2 | |
| 37 | Tube | 844130 | 1 | See group 3 |
| 38 | Hollow screw | 823417 | 1 | |
| 39 | Valve | 844770 | 1 | |
| 40 | O-ring | 960202 | 1 | |
| 41 | Nipple | 843688 | 1 | |
| 42 | Gasket | 15304 | 1 | |
| 43 | Gasket | 957181 | 1 | |
| 44 | Lock nut | 843640 | 1 | |
| 45 | Flow monitor | 843757 | 1 | |
| 46 | Hollow screw | 25167 | 1 |
| Item | Part Name | Part No. |
| 41 | Nipple 843688 | 843688 |
| Details | |
| Engine model | D100BHC D100BRC D70CHC D70CHC, D70CRC, TD70CHC, TD70CRC D70CRC TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100AHC TD100ARC TD100CHC TD100CRC TD120AHC TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120ARC TD120BHC TD120BRC TD121CHC TD121CRC TD70CHC TD70CRC |
| Application | COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: A COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: B COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: C COOLANT SUPERVISION WITH INSTALLATION COMPONENTS: D Oil and Fuel Supervision with Installation Components OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: A OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: B OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: C OIL AND FUEL SUPERVISION WITH INSTALLATION COMPONENTS: D |
| Specification | |
| Descriptions | EARLY TYPE |
