Nipple 941875

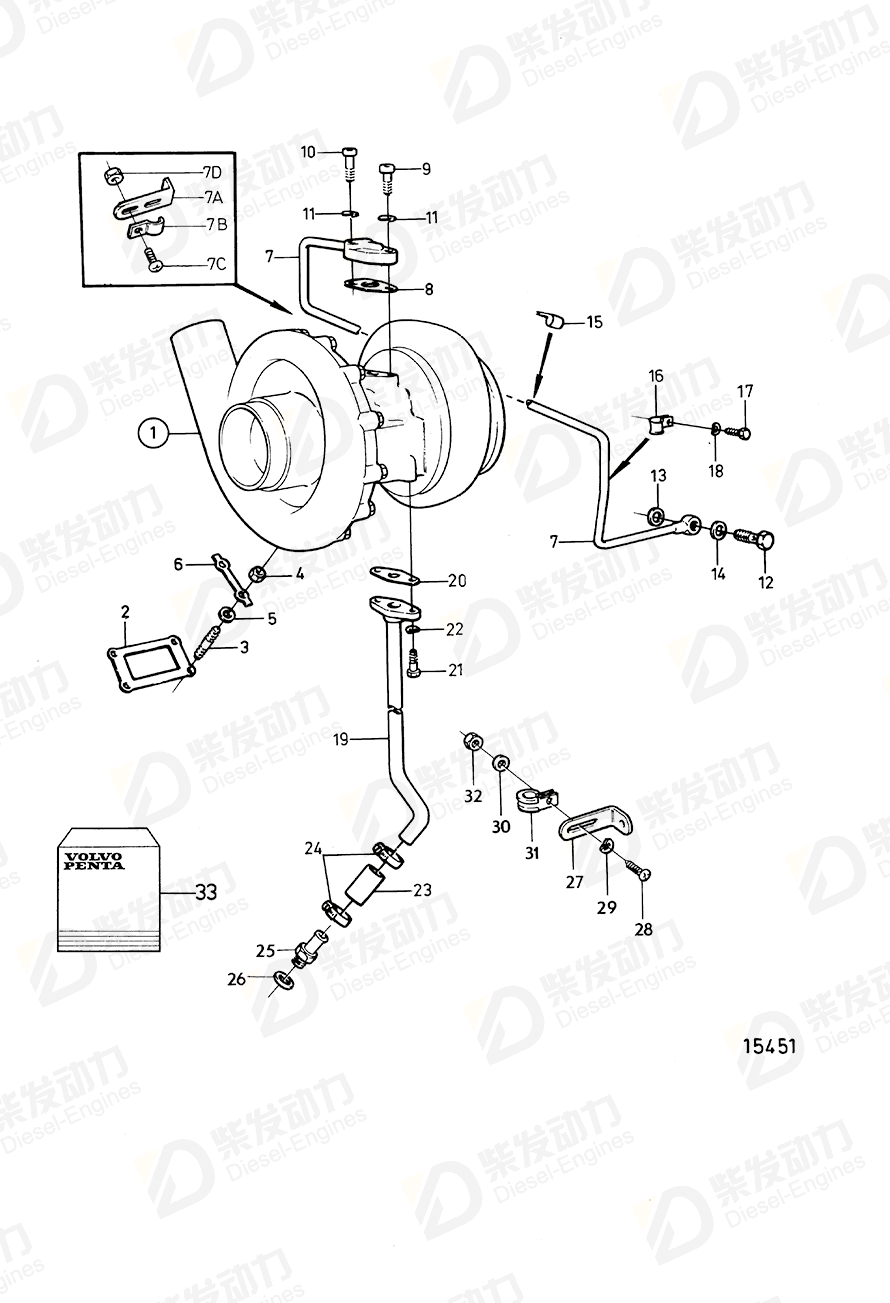

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802017 | 1 | (846652) |
| 2 | Gasket | 8194365 | 1 | |
| 3 | Stud | 8194545 | 4 | |
| 4 | Flange lock nut | 8194568 | 4 | |
| 5 | Washer | 940097 | 4 | |
| 6 | Tab washer | 1545277 | 2 | Included in gasket kit. |
| 7 | Oil pressure pipe | 849612 | 1 | |
| 8 | Plane gasket | 420641 | 1 | |
| 9 | Hexagon screw | 955295 | 1 | |
| 10 | Hexagon screw | 940142 | 1 | ÅKERMAN. |
| 11 | Spring washer | 941907 | 2 | |
| 12 | Hollow screw | 942007 | 1 | (954394) |
| 13 | Gasket | 942703 | 1 | |
| 14 | Gasket | 11998 | 1 | |
| 15 | Clamp | 968200 | 1 | |
| 16 | Clamp | 952626 | 1 | |
| 17 | Cross recessed screw | 950045 | 1 | |
| 18 | Spring washer | 941906 | 1 | |
| 19 | Oil return pipe | 862712 | 1 | SN-2100285314 |
| 19 | Oil return pipe | 3826204 | 1 | SN2100285315- |
| 20 | Plane gasket | 420643 | 1 | |
| 21 | Flange screw | 965215 | 2 | |
| 22 | Spring washer | 941907 | 2 | |
| 23 | Hose | 466328 | 1 | |
| 24 | Hose clamp | 994559 | 2 | |
| 25 | Nipple | 941875 | 1 | |
| 26 | Gasket, plug | 18677 | 1 | |
| 27 | Bracket | 965563 | 1 | |
| 28 | Cross recessed screw | 950046 | 1 | |
| 29 | Washer | 955893 | 1 | |
| 30 | Spring washer | 941906 | 1 | |
| 31 | Clamp | 952632 | 1 | Late type |
| 32 | Hexagon nut | 955825 | 1 | Late type |
| 33 | Gasket kit | 876354 | 1 | |
| 7A | Bracket | 965559 | 1 | |
| 7B | Clamp | 968200 | 1 | |
| 7C | Cross recessed screw | 950046 | 1 | |
| 7D | Hexagon nut | 955825 | 1 | Late type |
| Item | Part Name | Part No. |
| 25 | Nipple 941875 | 941875 |
| Details | |
| Engine model | TAD1030G TAD1030GE, TAD1031GE TAD1030V TAD1031GE TAD1032GE TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TD1010G TD1030ME TD1030VE TD120G TD120GG TD120HPP TD1210G TD121G TD121G-87 TD121GG TD121GG-86 TD121GP-87 TD60B TD60D TD60D-83 TD70G TD70G-83 TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KPB-87 TID121L-87, TID121LG, TID121LG-87, TID121LGP-87, TID121LP, TID121LP-87 TID70G TWD1010G TWD1030ME TWD1031VE TWD1210G TWD1210P, TWD1211P, TWD1211G TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE TWD1231VE |
| Application | Lubricating System, Angle of Inclination 10° Lubricating System, Angle of Inclination 40°: A Lubricating System, Standard Model: A Turbo and Installation Components Turbo and Installation Components, Low Mounted TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: A TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: B Turbo and Installation Components: A Turbo and Installation Components: B Turbo and Installation Components: C Turbo and Installation Components: TD120HP86 Turbo, High Mounted SN-2120147401 Turbo, High Mounted SN2120147402- Turbo, High Mounted SNXXXXXXXXXX/147402-, SN-XXXXXXXXXX/238056 Turbo, High Mounted, SNXXXXXXXXXX/238057-: A Turbo, High Mounted, SNXXXXXXXXXX/238057-: B Turbocharger Turbocharger, High Mounted Turbocharger, High Mounted: A Turbocharger, High Mounted: B Turbocharger, High Mounted: C Turbocharger: A Turbocharger: B Turbocharger: TD100-87 |
| Specification | |
| Descriptions | Spec.867639 |
