Nipple 947807

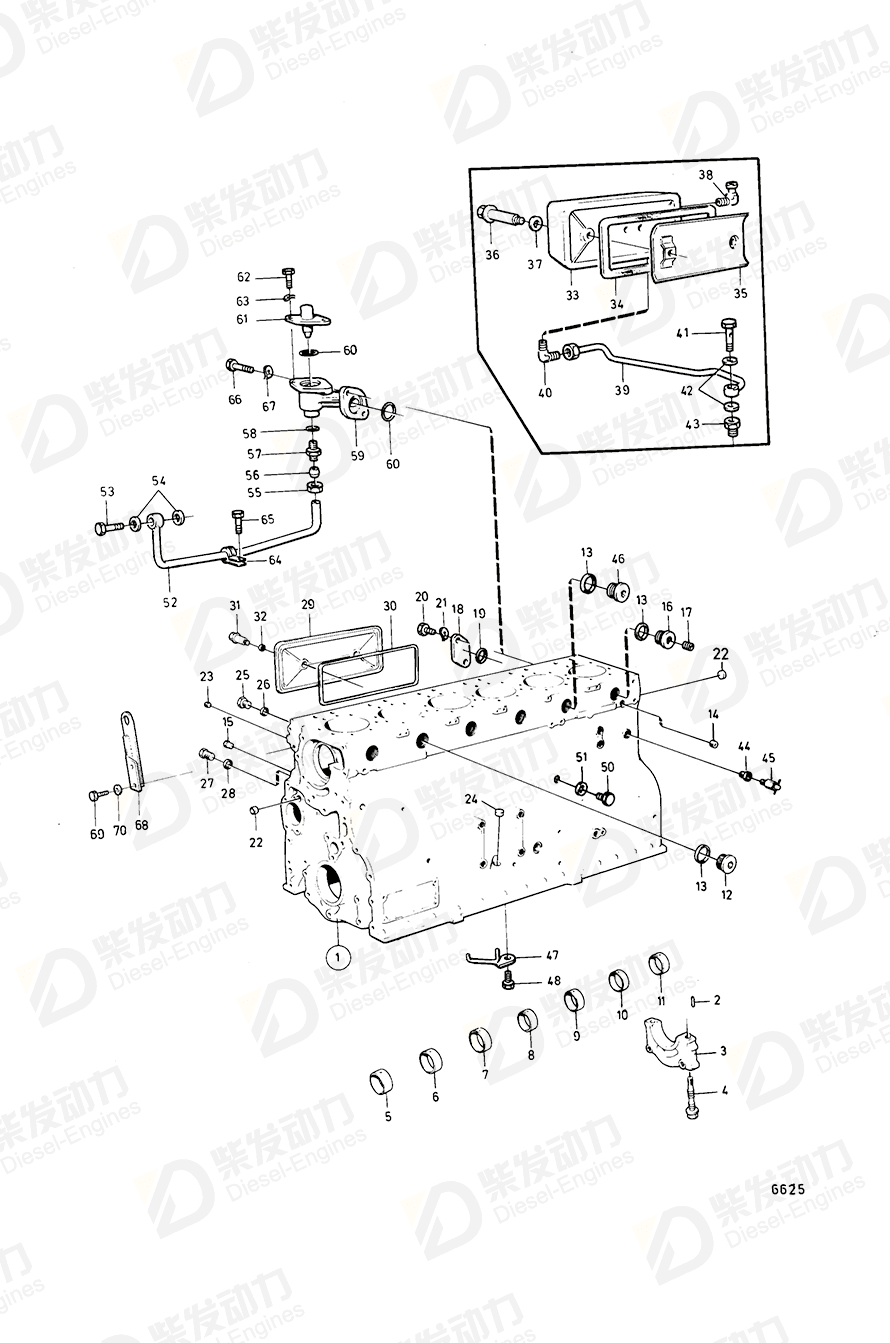

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 468702 | 1 | Spec. 9881, 9890. 9919, 9958, 9960., Replaced by 478990 |
| 1 | Cylinder block | 478990 | 1 | Spare part design., SNXXXXXXXXXX/199853- |
| 2 | Pin | 422426 | 1 | |
| 4 | Flange screw | 423444 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 467367 | 5 | |
| 13 | Gasket | 469328 | 6 | |
| 14 | Plug | 952075 | 2 | |
| 15 | Plug | 422369 | 7 | |
| 16 | Plug | 821335 | 1 | |
| 17 | Plug | 952077 | 1 | |
| 19 | O-ring | 925060 | 1 | |
| 20 | Hexagon screw | 955524 | 2 | Used on crankshaft 829999. |
| 21 | Spring washer | 941907 | 2 | |
| 22 | Cap plug | 955083 | 3 | |
| 23 | Plug | 952077 | 4 | |
| 24 | Cap plug | 955082 | 4 | |
| 25 | Plug | 16318 | 5 | |
| 26 | Gasket | 907132 | 5 | |
| 27 | Plug, 3/4-UNF | 948187 | 1 | |
| 28 | Gasket | 18818 | 1 | |
| 29 | Inspection cover | 423120 | 2 | |
| 30 | Gasket | 467409 | 2 | |
| 32 | Sealing ring | 424342 | 4 | |
| 33 | Crankcase ventilatio | 824365 | 1 | |
| 34 | Gasket | 824343 | 1 | |
| 35 | Splash plate | 824369 | 1 | |
| 36 | Screw | 823742 | 2 | |
| 37 | Sealing ring | 424342 | 2 | |
| 38 | Hose attachment | 815239 | 1 | |
| 39 | Oil pipe | 842134 | 1 | Spec. 9882, 9961., AQ140A MO-7019/XXXX. AQ120B MO-602/XXXX. |
| 40 | Elbow nipple | 954343 | 1 | Engine with oil supervision in rear oil pan cover |
| 41 | Hollow screw | 74040 | 1 | |
| 42 | Gasket | 957175 | 2 | |
| 43 | Nipple | 947807 | 1 | |
| 44 | Reduction nipple | 190130 | 1 | |
| 45 | Shut-off cock | 949918 | 1 | (82745) |
| 46 | Nipple | 836993 | 1 | See group 2B |
| 47 | Oil jet | 468539 | 6 | |
| 48 | Hexagon screw | 948587 | 6 | For DH10A, THD102KD |
| 50 | Plug | 961892 | 1 | D42A PP SPEC. 16053, 867638 |
| 51 | Gasket | 947621 | 1 | |
| 52 | Tube | 842830 | 1 | See group 2B |
| 53 | Hollow screw | 190714 | 1 | |
| 54 | Gasket | 947624 | 2 | |
| 55 | Fitting nut | 956985 | 1 | |
| 56 | Ferrule | 956971 | 1 | |
| 57 | Nipple | 192639 | 1 | |
| 58 | Gasket | 947624 | 1 | |
| 60 | O-ring | 949659 | 2 | |
| 61 | Valve | 468838 | 1 | |
| 62 | Hexagon screw | 940094 | 2 | |
| 63 | Spring washer | 941906 | 2 | |
| 64 | Clamp | 952629 | 1 | |
| 65 | Hexagon screw | 940100 | 1 | |
| 66 | Hexagon screw | 955525 | 2 | |
| 67 | Spring washer | 941907 | 2 | |
| 69 | Hexagon screw | 955561 | 2 | |
| 70 | Spring washer | 940280 | 2 |
| Item | Part Name | Part No. |
| 43 | Nipple 947807 | 947807 |
| Details | |
| Engine model | D100A D100B D100BHC D100BRC D120A TAD120AHC TAD120BHC TAD120CHC TD100A TD100AHC TD100ARC TD120A TD120AHC TD120ARC |
| Application | Cylinder Block Cylinder Block and Related Parts: A Cylinder Block and Related Parts: B Cylinder Block and Related Parts: C CYLINDER BLOCK: A CYLINDER BLOCK: B CYLINDER BLOCK: C CYLINDER BLOCK: D LUBRICATING SYSTEM |
| Specification | |
| Descriptions | MOXXXX/48090- Spec. 9882, 9961., AQ140A MO-7019/XXXX. AQ120B MO-602/XXXX. |
