Nipple, air compr. 479978

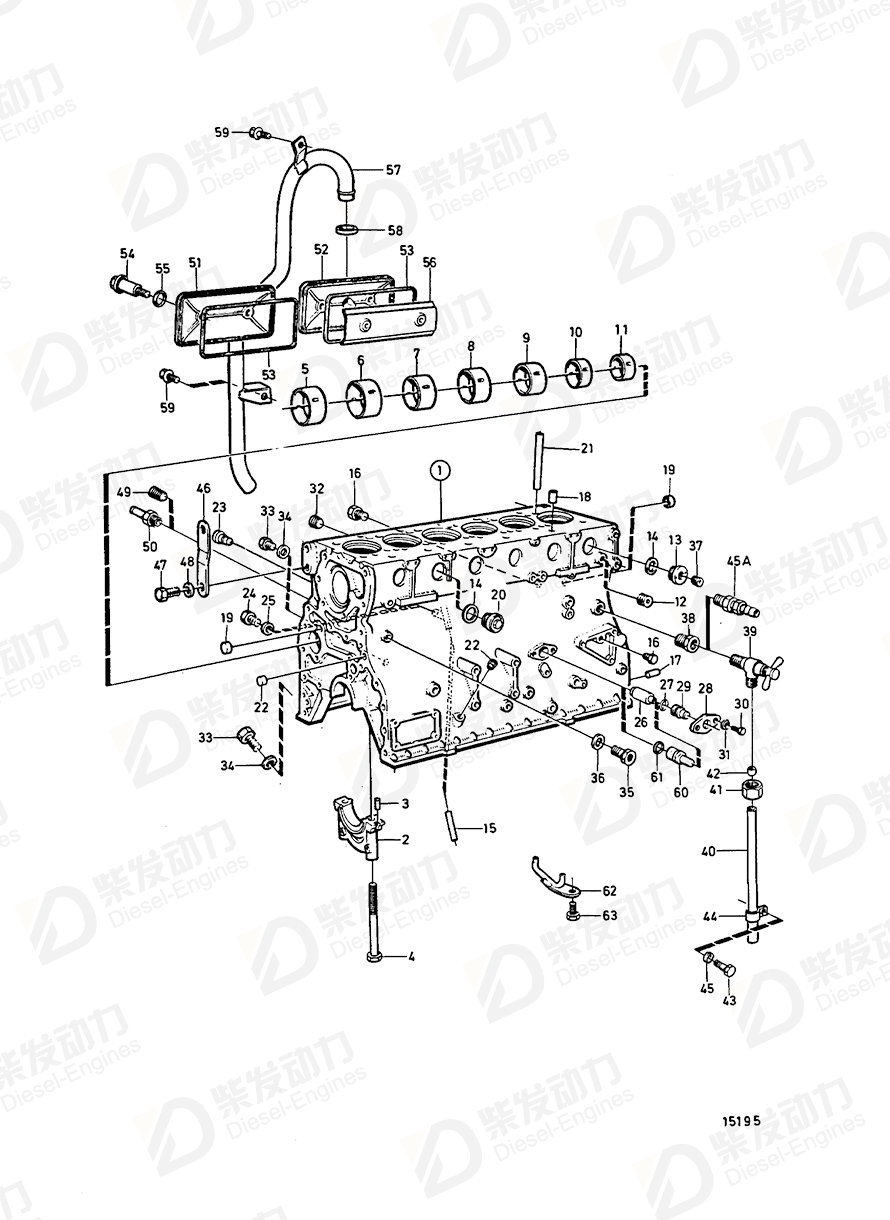

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder block | 479650 | 1 | Spare part design., Repl by 8194668 |
| 1 | Short block | 3801057 | 1 | Spare part design., Repl by 8194668 |
| 3 | Pin | 422426 | 1 | |
| 4 | Flange screw | 422067 | 14 | |
| 5 | Bushing | 422076 | 1 | |
| 6 | Bushing | 422077 | 1 | |
| 7 | Bushing | 422078 | 1 | |
| 8 | Bushing | 422079 | 1 | |
| 9 | Bushing | 422080 | 1 | |
| 10 | Bushing | 422081 | 1 | |
| 11 | Bushing | 422082 | 1 | |
| 12 | Plug | 952075 | 1 | |
| 13 | Plug | 821335 | 1 | |
| 14 | Gasket | 469328 | 7 | |
| 15 | Pipe | 468563 | 1 | |
| 16 | Plug | 479979 | 7 | |
| 17 | Pin | 191171 | 2 | |
| 18 | Pin | 950543 | 12 | |
| 19 | Cap plug | 955083 | 2 | |
| 20 | Plug | 467367 | 5 | |
| 21 | Pipe | 421068 | 1 | |
| 22 | Cap plug | 955082 | 4 | |
| 23 | Plug | 422369 | 2 | |
| 24 | Plug | 961892 | 1 | D42A PP SPEC. 16053, 867638 |
| 25 | Gasket | 969011 | 1 | |
| 26 | Pipe | 424801 | 1 | |
| 27 | O-ring | 949657 | 1 | (925060) |
| 28 | Flange | 424714 | 1 | |
| 29 | Plug | 424715 | 1 | |
| 30 | Hexagon screw | 955513 | 2 | |
| 31 | Spring washer | 941906 | 2 | |
| 32 | Plug | 952075 | 1 | |
| 33 | Plug, 3/4-UNF | 948187 | 2 | |
| 34 | Gasket | 18818 | 2 | |
| 35 | Plug, pump companion guard | 864865 | 1 | |
| 36 | Gasket | 11996 | 1 | |
| 37 | Plug | 479977 | 1 | |
| 38 | Nipple | 479954 | 1 | (190130) |
| 39 | Faucet | 479970 | 1 | Earlier prod (820436) |
| 40 | Drain tube | 821889 | 1 | |
| 41 | Fitting nut | 954357 | 1 | |
| 42 | Fitting | 954365 | 1 | |
| 43 | Hexagon screw | 940133 | 1 | |
| 44 | Clamp | 942400 | 1 | |
| 45 | Washer | 940097 | 1 | |
| 47 | Hexagon screw | 955561 | 2 | |
| 48 | Spring washer | 940280 | 2 | |
| 49 | Plug | 479977 | 1 | |
| 50 | Nipple, air compr. | 479978 | 1 | (961654) |
| 51 | Inspection cover | 423120 | 2 | |
| 52 | Inspection cover | 423121 | 1 | |
| 53 | Gasket | 469823 | 3 | |
| 54 | Shoulder screw | 422541 | 6 | |
| 55 | Sealing ring | 471856 | 6 | |
| 56 | Splash plate | 422542 | 1 | |
| 57 | Pipe | 422757 | 1 | |
| 57 | Tube | 467090 | 1 | |
| 58 | Sealing ring | 421158 | 1 | |
| 59 | Flange screw | 942402 | 2 | |
| 45A | Shut-off cock | 949918 | 1 | (82745) |
| Item | Part Name | Part No. |
| 50 | Nipple, air compr. 479978 | 479978 |
| Details | |
| Engine model | TAD1030P TAD1030V, TWD1031VE TAD1230P, TD121GP-87 TAD1230P, TD121GP-87, TWD1210P, TWD1211P, TD1210G, TWD1210G, TWD1211G TD100G-87 TD100G-87, TD1030ME TD100G-87, TD1030VE TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE TD1030VE, TWD1031VE TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD164KAE TWD1030ME TWD1230ME |
| Application | Air Compressor 15.5 Air Compressor 15.5 W31 Air Compressor Knorr LP48 ESS Air Compressor Wabco 704 Cylinder Block Cylinder Block: A Cylinder Block: B |
| Specification | |
| Descriptions | (961654) |
