Nut 346918

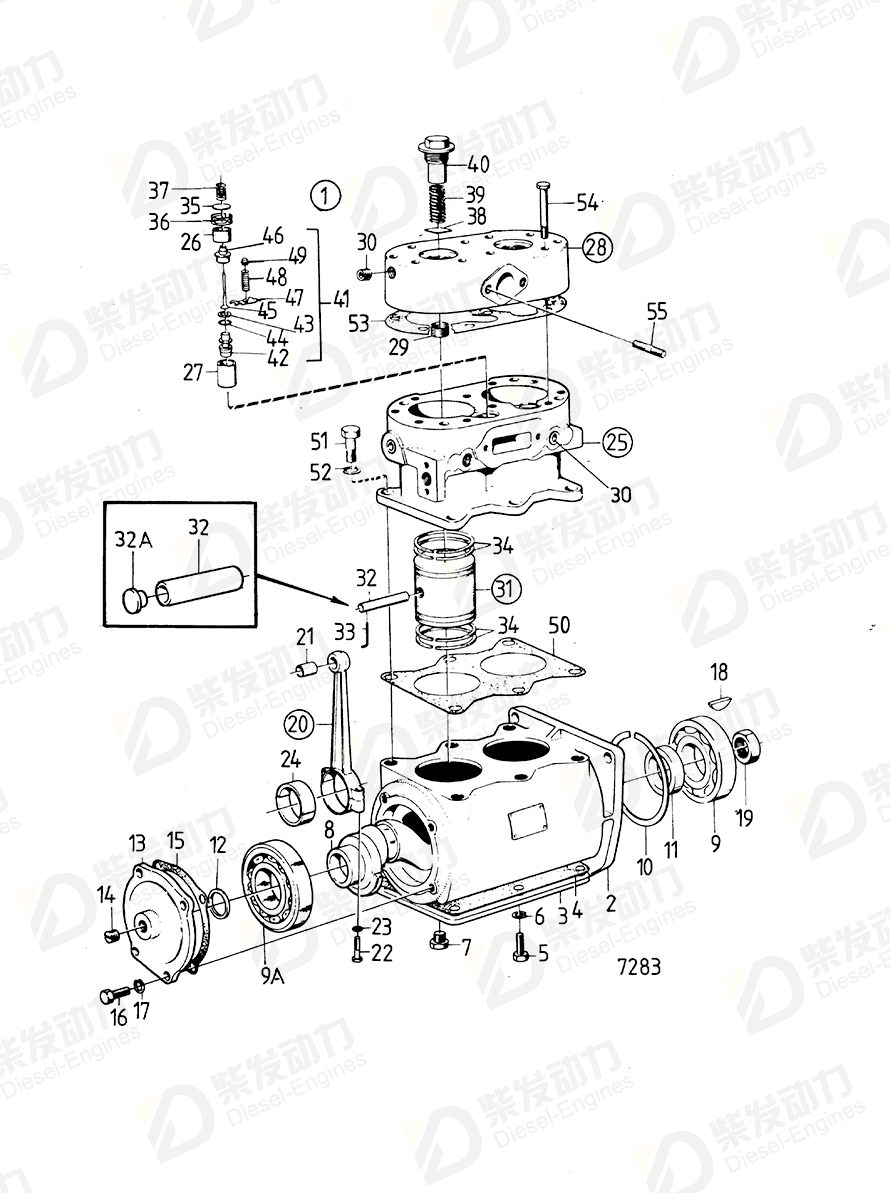

| No. | Part Name | Part Number | Qty | Description |
| 1 | Compressor, compressor components not spec. | 1599919 | 1 | TUFLO 500 |
| 2 | Crankcase | 346935 | 1 | |
| 3 | Cover | 346517 | 1 | |
| 4 | Gasket | 346938 | 1 | |
| 5 | Hexagon screw | 940100 | 6 | |
| 6 | Spring washer | 941906 | 6 | |
| 7 | Plug | 337793 | 1 | |
| 8 | Crankshaft | 347146 | 1 | |
| 9 | Ball bearing | 11014 | 2 | |
| 10 | Lock ring | 346520 | 1 | |
| 11 | Spacer ring | 346914 | 1 | |
| 12 | Sealing ring | 324324 | 1 | |
| 13 | Cover | 344230 | 1 | |
| 14 | Plug | 325865 | 1 | |
| 15 | Gasket | 328731 | 1 | |
| 16 | Hexagon screw | 940135 | 4 | |
| 17 | Spring washer | 941907 | 4 | |
| 18 | Key | 1517545 | 1 | (346916) |
| 19 | Nut | 346918 | 1 | |
| 20 | Connecting rod | 346940 | 2 | |
| 21 | Bushing | 352973 | 2 | Early type |
| 22 | Screw | 328737 | 4 | |
| 23 | Lock washer | 328738 | 4 | |
| 24 | Bearing shell | 346942 | 4 | Std D |
| 24 | Bearing shell | 346943 | 4 | 0.25mm u.s |
| 24 | Bearing shell | 346944 | 4 | 0.50mm u.s |
| 25 | Cylinder block | 328743 | 1 | |
| 26 | Valve seat | 324343 | 2 | |
| 27 | Bushing | 326832 | 2 | |
| 28 | Cylinder head | 328744 | 1 | |
| 29 | Valve seat | 328745 | 1 | |
| 30 | Plug | 191026 | 5 | |
| 31 | Piston | 1697477 | 2 | Std D |
| 31 | Piston | 1697478 | 2 | 0.25mm o.s. later prod |
| 34 | Piston ring kit | 272560 | 1 | Std D early type |
| 34 | Piston ring kit | 272561 | 1 | 0.25mm o.s earlier prod |
| 35 | Inlet valve | 324344 | 2 | |
| 36 | Guide | 328756 | 2 | |
| 37 | Spring | 324346 | 2 | |
| 38 | Valve disc | 328757 | 2 | |
| 39 | Spring | 324349 | 2 | |
| 40 | Plug | 324350 | 2 | |
| 41 | Repair kit | 276543 | 1 | |
| 42 | Piston | 331876 | 2 | |
| 43 | Ring | 326834 | 2 | |
| 44 | O-ring | 326835 | 2 | |
| 45 | Push rod | 331877 | 2 | |
| 46 | Guide | 331878 | 2 | |
| 47 | Bearing | 344231 | 1 | |
| 48 | Spring | 324355 | 1 | |
| 49 | Guide | 326839 | 1 | |
| 50 | Gasket | 1697532 | 1 | |
| 51 | Hexagon screw | 940115 | 6 | |
| 52 | Spring washer | 941908 | 6 | |
| 53 | Gasket | 1697531 | 1 | |
| 54 | Hexagon screw | 940136 | 10 | |
| 55 | Repair kit | 272813 | 1 | See group 10A |
| 55 | Stud | 344232 | 2 | |
| 9A | Ball bearing | 183260 | 1 |
| Item | Part Name | Part No. |
| 19 | Nut 346918 | 346918 |
| Details | |
| Engine model | D100A D100B D120A D120A, TD120A D70B D70B, TD70B TAD1230P TAD1230V TD100A TD100G TD100G, TD100G-85, TID100K TD100G-85 TD100G-87 TD100G-87, TD1030ME TD100G-87, TD1030VE TD100G-87, TID100K-87 TD1030ME, TWD1030ME TD1030VE, TWD1031VE TD120A TD120GG TD121G-87 TD121GP-87 TD60A TD60B TD60D TD60D-83 TD610M, TD630ME TD610V, TD630VE, TD640VE TD61A, TD61AW TD70B TD70G TD70G-83 TD71A TD71A, TD71AW TD730ME TID100K TID60D TID70G TID71A TID71A, TWD710V, TWD731VE, TWD740VE TWD1210P, TWD1211P TWD1210V, TWD1211V, TWD1230VE, TWD1231VE TWD1230ME TWD610P TWD610V TWD630ME TWD630VE TWD710P TWD730ME TWD731ME |
| Application | Air Compressor Air Compressor &Knorr &LP48 &Ess Air Compressor &TUFLO 500 and Installation Components AIR COMPRESSOR AND INSTALLATION COMPONENTS Air Compressor and Installation Components: A Air Compressor and Installation Components: B Air Compressor and Installation Components: C Air Compressor Knorr LP48 Air Compressor Knorr LP48 ESS Air Compressor Knorr LP48 ESS: A Air Compressor Knorr LP48 ESS: B Air Compressor Knorr LP48 ESS: C Air Compressor Knorr LP48: A Air Compressor Knorr LP48: B Air Compressor TUFLO 500 AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 500 AND INSTALLATION COMPONENTS: B Air Compressor TUFLO 700 and Installation Components AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: A AIR COMPRESSOR TUFLO 700 AND INSTALLATION COMPONENTS: B Air Compressor, Components Air Compressor, TUFLO 500 and Installation Components Air Compressor, TUFLO 500 and Installation Components: A Air Compressor, TUFLO 500 and Installation Components: B Air Compressor, TUFLO 500 and Installation Components: C Air Compressor, TUFLO 500 and Installation Components: TID100K87 Air Compressor: 1599919 Air Compressor: 1611815 Air Compressor: 343938 Air Compressor: 351450 Air Compressor: 351453 Hydraulic Pump and Control Valve with Installation Components Hydraulic Pump and Installation Components Hydraulic Pump: 349221 Hydraulic Pump: 356506 |
| Specification | |
| Descriptions | Not incl. |
