Nut 6606324

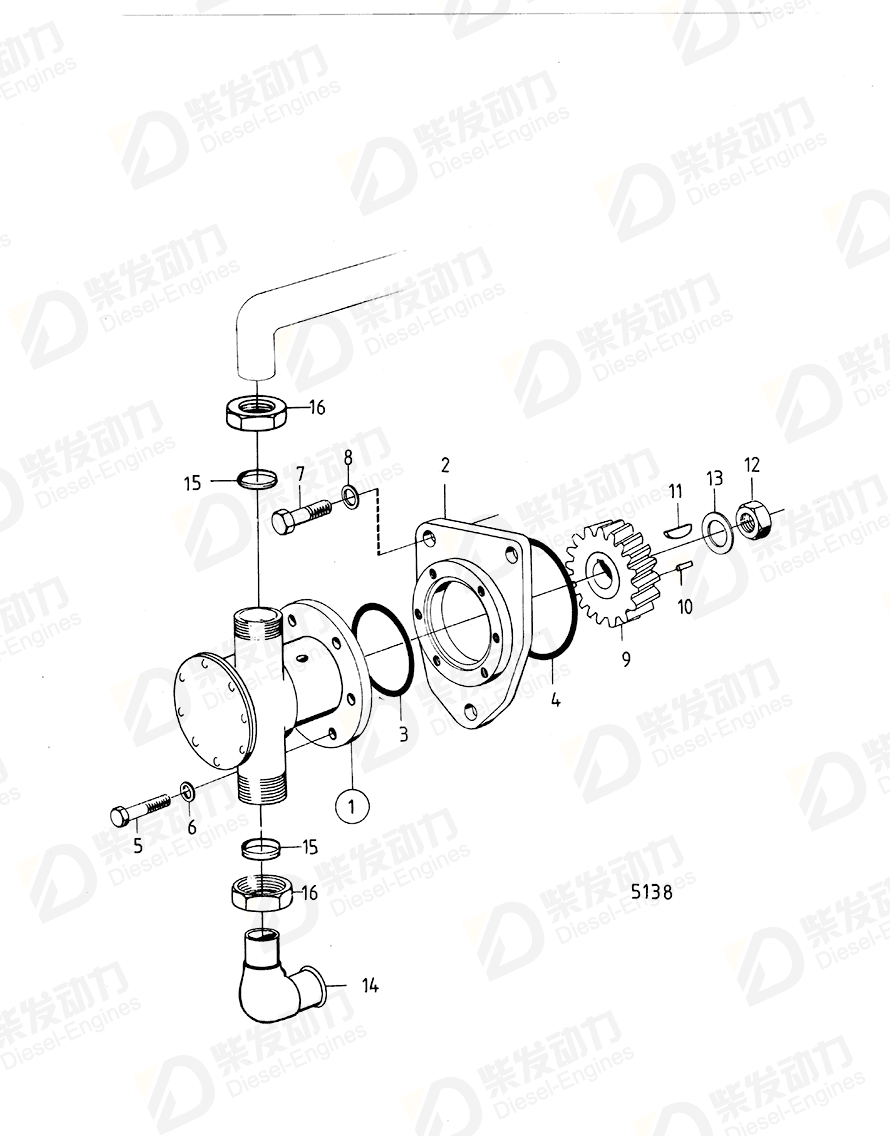

| No. |
Part Name |
Part Number |
Qty |
Description |
| 1 |
Sea water pump |
837371 |
1 |
|
| 2 |
Spacer |
820695 |
1 |
|
| 3 |
O-ring |
925095 |
1 |
|
| 4 |
Gasket |
413619 |
1 |
|
| 5 |
Hexagon screw |
940114 |
3 |
|
| 6 |
Spring washer |
942336 |
3 |
|
| 7 |
Hexagon screw |
955576 |
3 |
|
| 7 |
Hexagon screw |
955577 |
2 |
Forged pistons., L=38mm |
| 8 |
Spring washer |
941911 |
3 |
|
| 9 |
Gear |
820637 |
1 |
See group 2A |
| 10 |
Pin |
950564 |
1 |
|
| 11 |
Woodruff key |
942406 |
1 |
SEE GROUP 2A |
| 12 |
Hexagon nut |
955860 |
1 |
|
| 13 |
Tab washer |
942735 |
1 |
|
| 14 |
Anchorage |
837276 |
1 |
|
| 15 |
Sealing ring |
807957 |
2 |
|
| 16 |
Nut |
6606324 |
2 |
|
| Item |
Part Name |
Part No. |
| 16 |
Nut 6606324 |
6606324 |
| Details |
| Engine model |
D70CHC, TD70CHC |
| Application |
Sea Water Pump and Installation Components |
Tags:
Nut,
Volvo Penta,
6606324
