Nut 843797

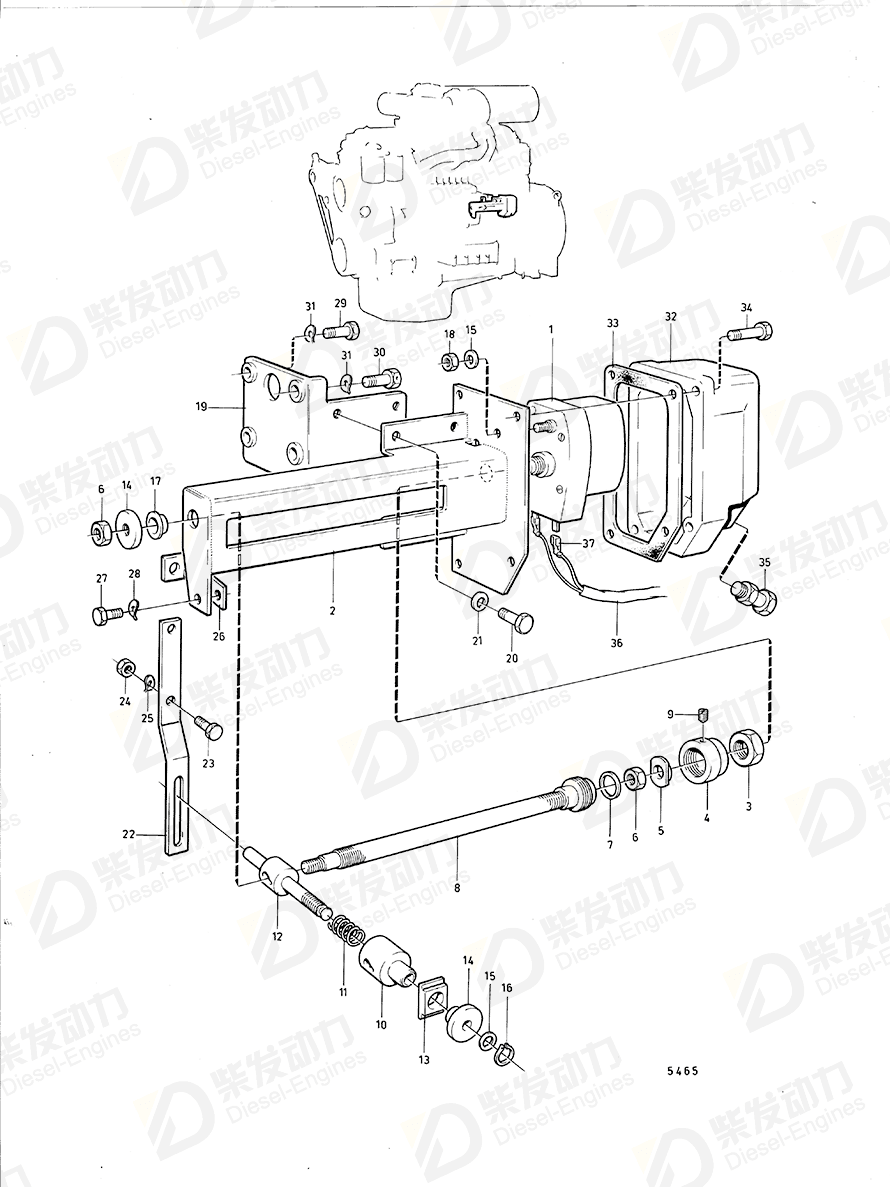

| No. | Part Name | Part Number | Qty | Description |
| 1 | Engine | 843794 | 1 | 24V |
| 2 | Retainer | 843795 | 1 | |
| 3 | Nut | 843796 | 1 | |
| 4 | Nut | 843797 | 1 | |
| 5 | Dog | 843798 | 1 | |
| 6 | Hexagon nut | 955781 | 2 | |
| 7 | Spring washer | 949938 | 1 | (941909) |
| 8 | Adjusting screw | 843799 | 1 | |
| 9 | Set screw | 945647 | 1 | (116226) |
| 10 | Sleeve | 843802 | 1 | |
| 11 | Spring | 813945 | 1 | |
| 12 | Piston | 843803 | 1 | |
| 13 | Bushing | 843804 | 1 | |
| 14 | Control button | 843805 | 2 | |
| 15 | Split pin | 907824 | 1 | |
| 16 | E-circlip | 951667 | 1 | |
| 17 | Bushing | 843806 | 1 | |
| 18 | Hexagon nut | 955780 | 1 | |
| 19 | Bracket | 843807 | 1 | |
| 20 | Hexagon screw | 955269 | 4 | For 1570594 |
| 21 | Spring washer | 941906 | 4 | |
| 22 | Intermediate lever | 843808 | 1 | |
| 23 | Hexagon screw | 955273 | 2 | |
| 24 | Hexagon nut | 955781 | 1 | |
| 25 | Spring washer | 941906 | 2 | |
| 26 | Attaching plate | 843810 | 1 | |
| 27 | Hexagon screw | 955269 | 1 | For 1570594 |
| 28 | Spring washer | 941906 | 1 | |
| 29 | Hexagon screw | 955274 | 3 | |
| 30 | Screw | 844540 | 1 | |
| 31 | Spring washer | 941906 | 4 | |
| 32 | Cover | 843889 | 1 | |
| 33 | Gasket | 843890 | 1 | |
| 34 | Hexagon screw | 955271 | 4 | |
| 35 | Grommet | 881191 | 1 | Early type |
| Item | Part Name | Part No. |
| 4 | Nut 843797 | 843797 |
| Details | |
| Engine model | D120A, TD120A D70B, TD70B D70CHC, D70CRC, TD70CHC, TD70CRC TD100ARC TD100CHC TD100CRC TD100G, TD100HP-87, TID100K TD1010G TD120AHC, TD120ARC, TAD120AHC, TAD120BHC TD120BHC TD120BRC TD120C TD120HP-86, TD121G, TID121K, TID121L-87 TD1210G TD121CHC TD121CRC TD610G, TWD610G TD61AG, TID61AG TD70G TD710G, TWD710G TD71AG, TID71AG TID121FG TID162AG, TID162AGP TWD1010G TWD1210G, TWD1211G TWD1620G, TWD1630G |
| Application | Control Motor Control Motor for Speed Control Control Motor Type ''Bosch'' and Installation Comp, MOXXXXX/29818 Control Motor Type ''Bosch'' and Installation Comp., MOXXXXX/29818- CONTROL MOTOR WITH INSTALLATION COMPONENTS Control Motor with Installation Components: A Control Motor with Installation Components: B |
