Nut 943152

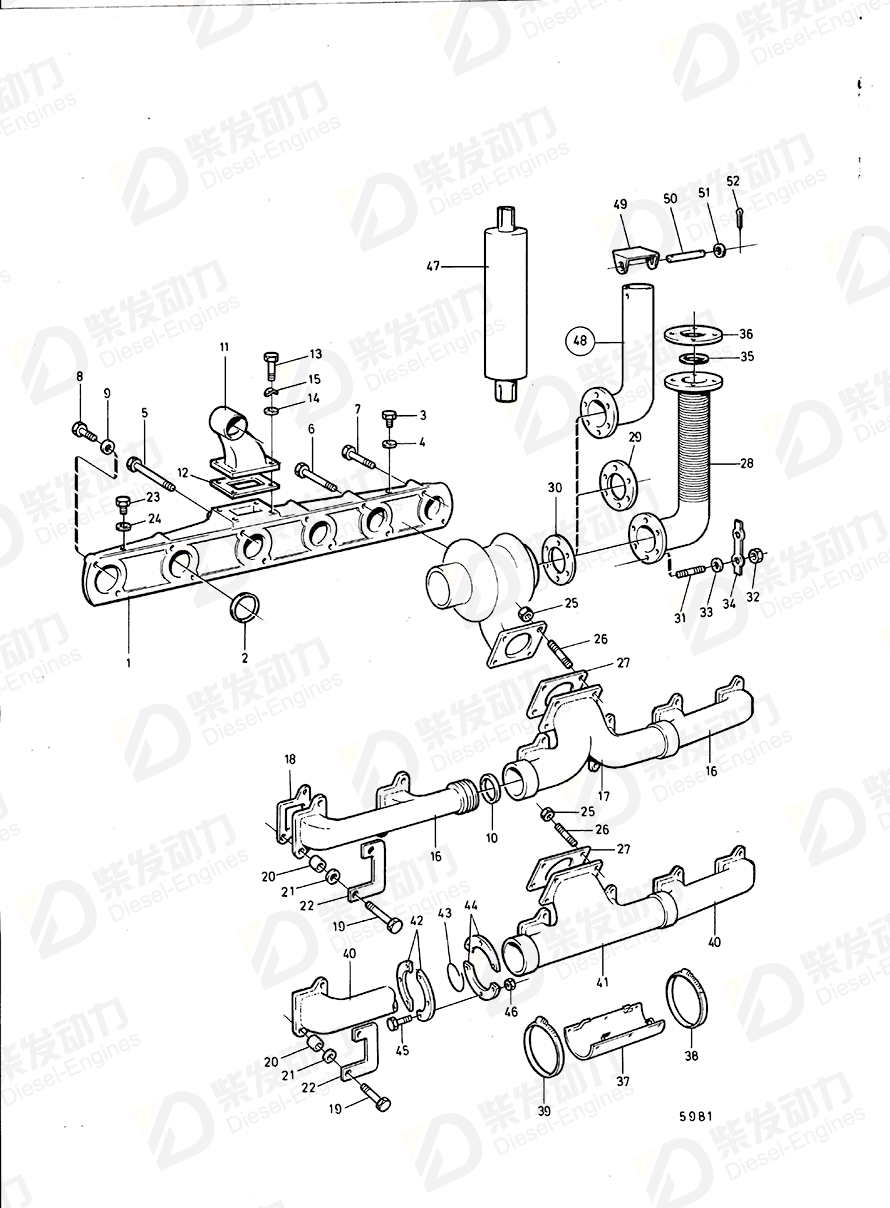

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 468988 | 1 | |
| 2 | Rubber ring | 423174 | 6 | |
| 3 | Hexagon screw | 940113 | 1 | |
| 4 | Gasket | 957171 | 1 | |
| 5 | Hexagon screw | 955533 | 4 | For engine with 40° angle of inclination, L=102mm |
| 6 | Hexagon screw | 955530 | 4 | |
| 6 | Hexagon screw | 955531 | 2 | Late type |
| 7 | Hexagon screw | 940136 | 2 | |
| 8 | Hexagon screw | 940161 | 2 | For engine with 40° angle of inclination, L=45mm |
| 9 | Washer | 955894 | 12 | |
| 10 | Sealing ring | 423057 | 4 | |
| 11 | Connecting pipe | 468241 | 1 | FOR ENGINE WITHOUT VOLVO PENTA RADIATOR., (468241) |
| 11 | Connecting pipe | 468257 | 1 | See group 3 |
| 12 | Gasket | 468243 | 1 | When coolant supervision not is mounted |
| 13 | Hexagon screw | 940159 | 4 | |
| 14 | Washer | 955894 | 4 | |
| 15 | Spring washer | 941907 | 4 | |
| 16 | Exhaust pipe | 423274 | 2 | |
| 17 | Exhaust pipe | 836266 | 1 | |
| 18 | Gasket | 468647 | 6 | |
| 19 | Hexagon screw | 955536 | 12 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 20 | Spacer sleeve | 422217 | 12 | |
| 21 | Washer | 941744 | 12 | |
| 22 | Lock washer | 423350 | 6 | |
| 23 | Plug | 16318 | 1 | |
| 24 | Gasket | 907132 | 1 | |
| 25 | Nut | 943152 | 4 | |
| 26 | Stud | 953261 | 4 | |
| 27 | Gasket | 417382 | 1 | |
| 28 | Exhaust hose, exhaust hose | 846308 | 1 | (821278) |
| 29 | Flange | 844476 | 1 | Late type |
| 30 | Gasket | 411710 | 1 | |
| 31 | Stud | 953259 | 6 | |
| 32 | Nut | 943152 | 6 | |
| 33 | Washer | 960148 | 6 | Spec. 867446, 867477, 867494, 867630, 867618., MAFI spec. 867578. |
| 34 | Tab washer | 15193 | 3 | |
| 35 | Gasket | 807578 | 1 | |
| 36 | Flange | 807625 | 1 | |
| 37 | Radiation shield | 822987 | 1 | |
| 38 | Hose clamp | 943479 | 1 | |
| 39 | Hose clamp | 943482 | 1 | (951798) |
| 40 | Exhaust pipe | 423274 | 2 | |
| 41 | Exhaust pipe | 836266 | 1 | |
| 42 | Brace | 842448 | 4 | Åkerman spec. 867454., Engine with oil cooler fitted on front of the engine. |
| 43 | Sealing cord | 843445 | 1 | Ers av 1 pc 466833,1st 465473., Replaced by 1pc 843088 and 8PCS 955365. |
| 44 | Brace | 836265 | 4 | |
| 45 | Hexagon screw | 955518 | 8 | Ers av 1 pc 466833,1st 465473., Replaced by 1pc 843088 and 8PCS 955365. |
| 46 | Lock nut | 944579 | 8 | Ers av 1 pc 466833,1st 465473., Replaced by 1pc 843088 and 8PCS 955365. |
| Item | Part Name | Part No. |
| 25 | Nut 943152 | 943152 |
| Details | |
| Engine model | D100A D100B D100BHC, D100BRC D120A D42A D70B D70CHC, D70CRC TAD120AHC TAD120BHC TAD120CHC TD100A TD100AHC, TD100ARC TD120A TD120AHC, TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HPP TD45B TD60A TD60B TD60D TD60D-83 TD70B TD70G TD70G-83 TID120FG TID120FPP TID120HPP TID121FG TID60D TID60DG TID70G |
| Application | Exhaust Bend and Installation Components Induction and Exhaust Manifold with Installation Components INDUCTION AND EXHAUST SYSTEM Induction and Exhaust System: A Induction and Exhaust System: B Induction- and Exhaust Manifold Induction- and Exhaust Manifold, Classed Engine: A Induction- and Exhaust Manifold, Classed Engine: C Induction- and Exhaust Manifold: A Induction- and Exhaust Manifold: B Induction- and Exhaust Manifold: C INDUCTION-AND EXHAUST MANIFOLD Induction-and Exhaust Manifold, Classed Engine INDUCTION-AND EXHAUST MANIFOLD: A INDUCTION-AND EXHAUST MANIFOLD: B Inlet-,Exhaust Manifold and Turbocharger Repair Kits: B Silencer and Exhaust Pipe Power Pack Silencer and Exhaust Pipe Spec.867285 Std Spec.867284 Alt SILENCER AND INSTALLATION COMPONENTS Silencer and Installation Components, Power Pack SILENCER AND INSTALLATION COMPONENTS: B SILENCER AND INSTALLATION COMPONENTS: TID121FP Silencer and Rear Exhaust Pipe and Installation Components: B Turbo and Installation Components Turbo and Installation Components, Classed Engine Turbo and Installation Components, Low Mounted TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: A TURBO AND INSTALLATION COMPONENTS, LOW MOUNTED: B Turbo and Installation Components, MO-47460/XXXXX Turbo and Installation Components, MO47461/XXXXX- Turbo and Installation Components: A Turbo and Installation Components: B TURBO AND INSTALLATION COMPONENTS: TID121FP |
| Specification | |
| Descriptions | (191894) D42A PP SPEC. 16053, 867638., (191894) Early production D70B spec. 867055. EARLY TYPE Included in water pump 844635. MO 21083/XXXXX- Spec. 867277, MOXXXXX/32502-., (191894) |
