Nut plate 845903

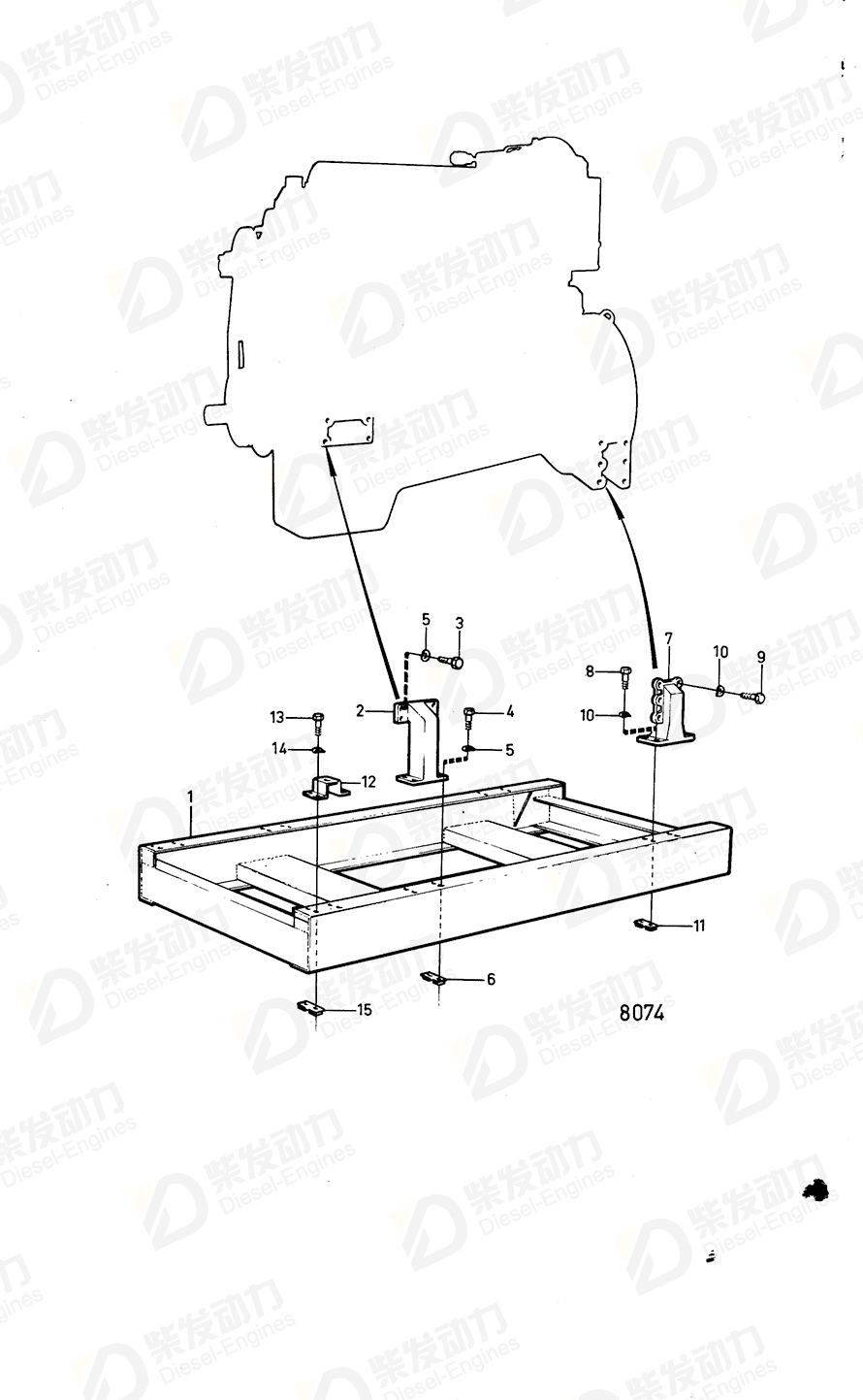

| No. | Part Name | Part Number | Qty | Description |
| 1 | Frame | 847068 | 1 | |
| 2 | Bracket | 820510 | 2 | D70B spec.867055 alt spec.867277.D70BK, TD70B |
| 3 | Hexagon screw | 955564 | 4 | |
| 3 | Hexagon screw | 955568 | 4 | For bracket 829839 with 8 holes., L=76mm |
| 4 | Hexagon screw | 955346 | 8 | D100B PP, TD100A PP |
| 5 | Spring washer | 940280 | 16 | |
| 6 | Nut plate | 845904 | 4 | D70B PP alt |
| 7 | Engine bracket | 843068 | 2 | Power Pack |
| 8 | Hexagon screw | 955342 | 8 | D100B PP, TD100A PP |
| 9 | Hexagon screw | 955561 | 12 | |
| 10 | Spring washer | 940280 | 20 | |
| 11 | Nut plate | 845905 | 4 | D100B PP, TD100A PP |
| 12 | Radiator bracket | 844560 | 2 | |
| 13 | Hexagon screw | 955318 | 8 | |
| 14 | Spring washer | 941908 | 8 | |
| 15 | Nut plate | 845903 | 4 |
| Item | Part Name | Part No. |
| 15 | Nut plate 845903 | 845903 |
| Details | |
| Engine model | TD60B TD60D-83 TID60D |
| Application | Engine Suspension, Power Pack ENGINE SUSPENSION, POWER PACK: A ENGINE SUSPENSION, POWER PACK: B |
