O-ring 1542783

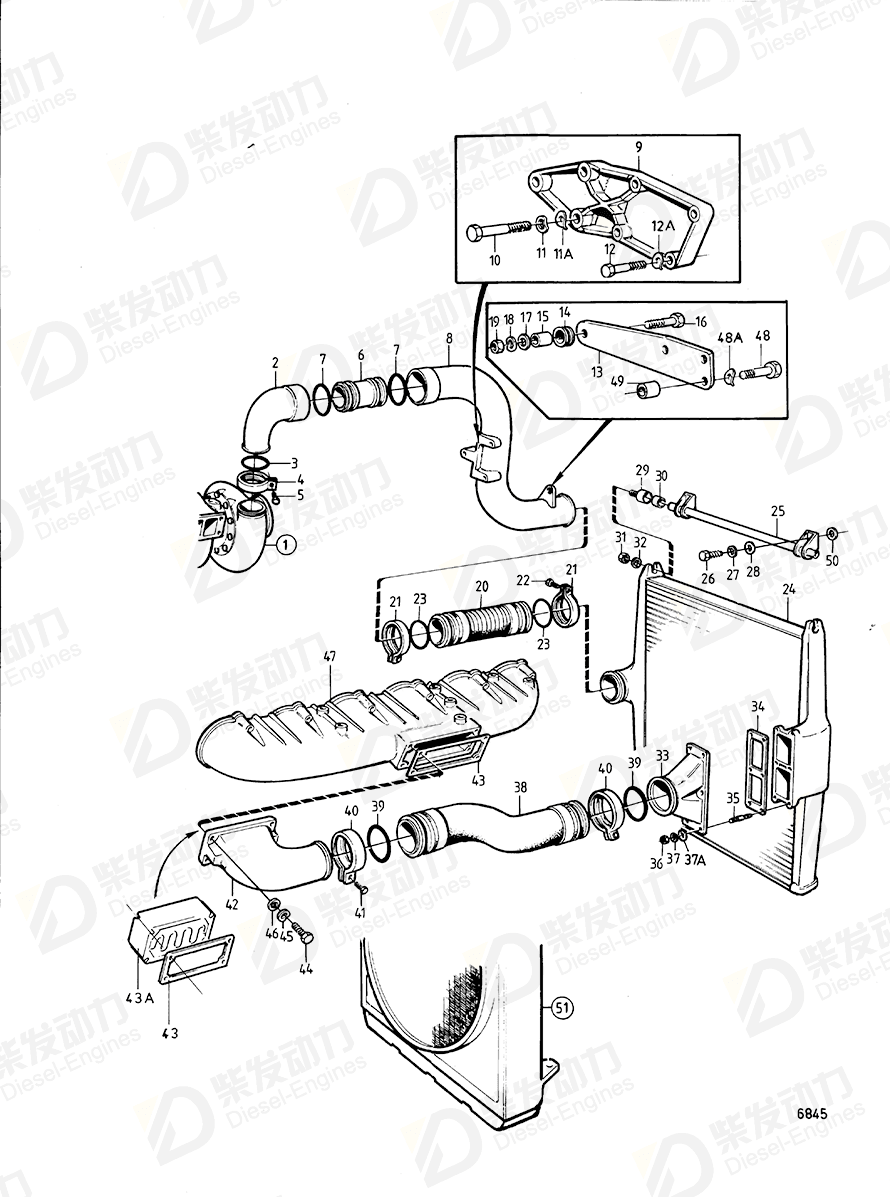

| No. | Part Name | Part Number | Qty | Description |
| 2 | Connecting pipe | 1542764 | 1 | |
| 3 | Sealing ring | 1542781 | 1 | |
| 4 | V-clamp | 1542778 | 1 | |
| 5 | Hexagon screw | 949335 | 1 | |
| 6 | Tube | 476885 | 1 | |
| 7 | O-ring | 1542783 | 2 | |
| 8 | Connecting pipe | 1542904 | 1 | |
| 9 | Bracket | 1542905 | 1 | |
| 10 | Hexagon screw | 955300 | 3 | (955299) |
| 11 | Washer | 960141 | 3 | |
| 12 | Screw | 955516 | 4 | |
| 13 | Bracket | 1542906 | 1 | |
| 14 | Spacer | 476846 | 1 | |
| 15 | Spacer sleeve | 1542793 | 1 | |
| 16 | Hexagon screw | 940142 | 1 | ÅKERMAN. |
| 17 | Washer | 947354 | 1 | |
| 18 | Spring washer | 941907 | 1 | |
| 19 | Hexagon nut | 955782 | 1 | |
| 20 | Hose | 476828 | 1 | |
| 21 | Clamp | 1542776 | 2 | |
| 22 | Hexagon screw | 949335 | 2 | |
| 23 | Sealing ring | 1542780 | 2 | |
| 24 | Intercooler | 1542735 | 1 | |
| 25 | Radiator anchorage | 1542500 | 1 | |
| 26 | Hexagon screw | 955296 | 2 | |
| 27 | Spring washer | 941907 | 2 | |
| 28 | Washer | 955894 | 2 | |
| 29 | Sleeve | 1542503 | 2 | |
| 30 | Rubber cushion | 1542505 | 2 | |
| 31 | Hexagon nut | 955791 | 2 | |
| 32 | Washer | 960141 | 2 | |
| 33 | Connecting pipe | 1542891 | 1 | |
| 34 | Gasket | 1542514 | 1 | |
| 35 | Stud | 953043 | 6 | |
| 36 | Hexagon nut | 955782 | 6 | |
| 37 | Spring washer | 941907 | 6 | |
| 38 | Hose | 1542890 | 1 | |
| 39 | Sealing ring | 1542780 | 2 | |
| 40 | Clamp | 1542776 | 2 | |
| 41 | Hexagon screw | 949335 | 2 | |
| 42 | Connecting pipe | 1660381 | 1 | |
| 43 | Gasket | 424618 | 2 | |
| 44 | Hexagon screw | 955532 | 4 | Only for thermoswitch control 837500,837501., L=95mm |
| 45 | Spring washer | 941907 | 4 | |
| 46 | Washer | 955894 | 4 | |
| 48 | Hexagon screw | 942338 | 3 | |
| 49 | Spacer sleeve | 1542934 | 3 | |
| 50 | Washer | 191172 | 2 | Spec.867054, 867221. |
| 11A | Spring washer | 941907 | 3 | |
| 12A | Spring washer | 941906 | 4 | |
| 37A | Washer | 955894 | 6 | |
| 43A | Starter element | 471867 | 1 | |
| 48A | Spring washer | 942336 | 3 |
| Item | Part Name | Part No. |
| 7 | O-ring 1542783 | 1542783 |
| Details | |
| Engine model | DH10A TAD1630G, TAD1630GE TAD1630P TAD1630V TAD1631G, TAD1631GE TD100G-87 THD102KB THD102KD TID120FG TID120FPP TID120HPP TID121FG TID162AG, TID162AGP, TID162AP, TID162APB TWD1620G TWD1630G TWD1630P TWD1630V |
| Application | Induction Manifold and Intercooler INTERCOOLER AND INSTALLATION COMPONENTS Repair Kits Repair Kits: A Repair Kits: B Repair Kits: TD100-87 |
