O-ring 20459953

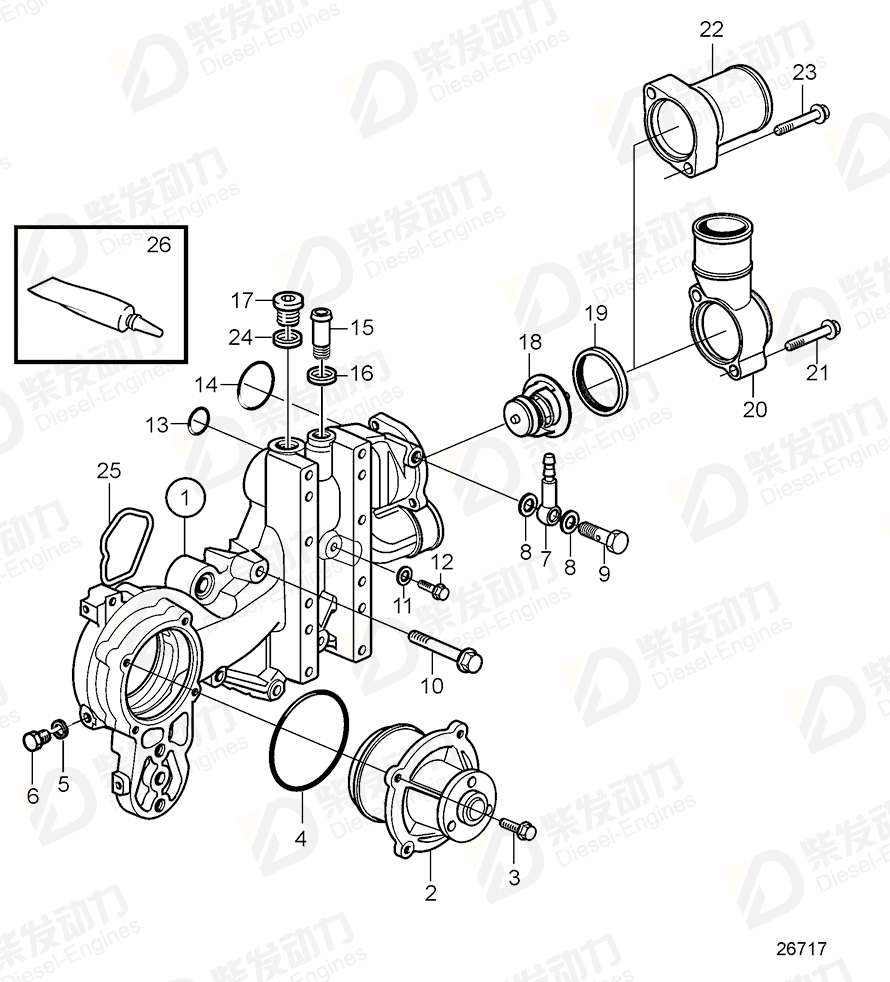

| No. | Part Name | Part Number | Qty | Description |
| 1 | Fan console | 21125744 | 1 | SN01099384-10642780 |
| 1 | Fan console | 21248822 | 1 | SN10642781- |
| 1 | Fan console | 21636765 | 1 | SN-01099383 |
| 2 | Coolant pump | 21125771 | 1 | SN01099384-10644021, Replaced by 21247955, Replaced by 21404502 |
| 2 | Coolant pump | 21247955 | 1 | SN10644021- |
| 3 | Flange screw | 984734 | 4 | |
| 4 | O-ring | 20502536 | 1 | |
| 5 | Gasket | 947281 | 1 | |
| 6 | Plug | 888774 | 1 | (20405556) |
| 7 | Fitting | 20551429 | 1 | |
| 8 | Gasket | 993605 | 2 | |
| 9 | Hollow screw | 20460936 | 1 | |
| 10 | Flange screw | 984741 | 5 | L=70mm |
| 11 | Sealing ring | 20459900 | 1 | |
| 12 | Flange screw | 20405898 | 1 | |
| 13 | O-ring | 21527767 | 1 | |
| 14 | O-ring | 20459953 | 1 | |
| 15 | Hose connection | 20412313 | 1 | |
| 16 | Gasket | 947622 | 2 | |
| 17 | Plug | 20459195 | 1 | |
| 18 | Thermostat | 20450736 | 1 | |
| 19 | Sealing ring | 20459961 | 1 | |
| 20 | Outlet pipe | 20450735 | 1 | |
| 21 | Flange screw | 973924 | 2 | |
| 22 | Connection pipe | 20817900 | 1 | Coolant outlet, sidewards |
| 23 | Flange screw | 20412324 | 2 | |
| 24 | Gasket | 947628 | 1 | |
| 25 | Guide washer | 21793275 | 1 | |
| 26 | Sealant | 1161231 | 1 | 304ml |
| Item | Part Name | Part No. |
| 14 | O-ring 20459953 | 20459953 |
| Details | |
| Engine model | TAD650VE TAD650VE, TAD660VE TAD660VE TD420VE, TAD420VE, TAD620VE |
| Application | Repair Kits Water Pump and Thermostat Housing Water Pump and Thermostat Housing with Bracket for Fan. |
