O-ring 3587350

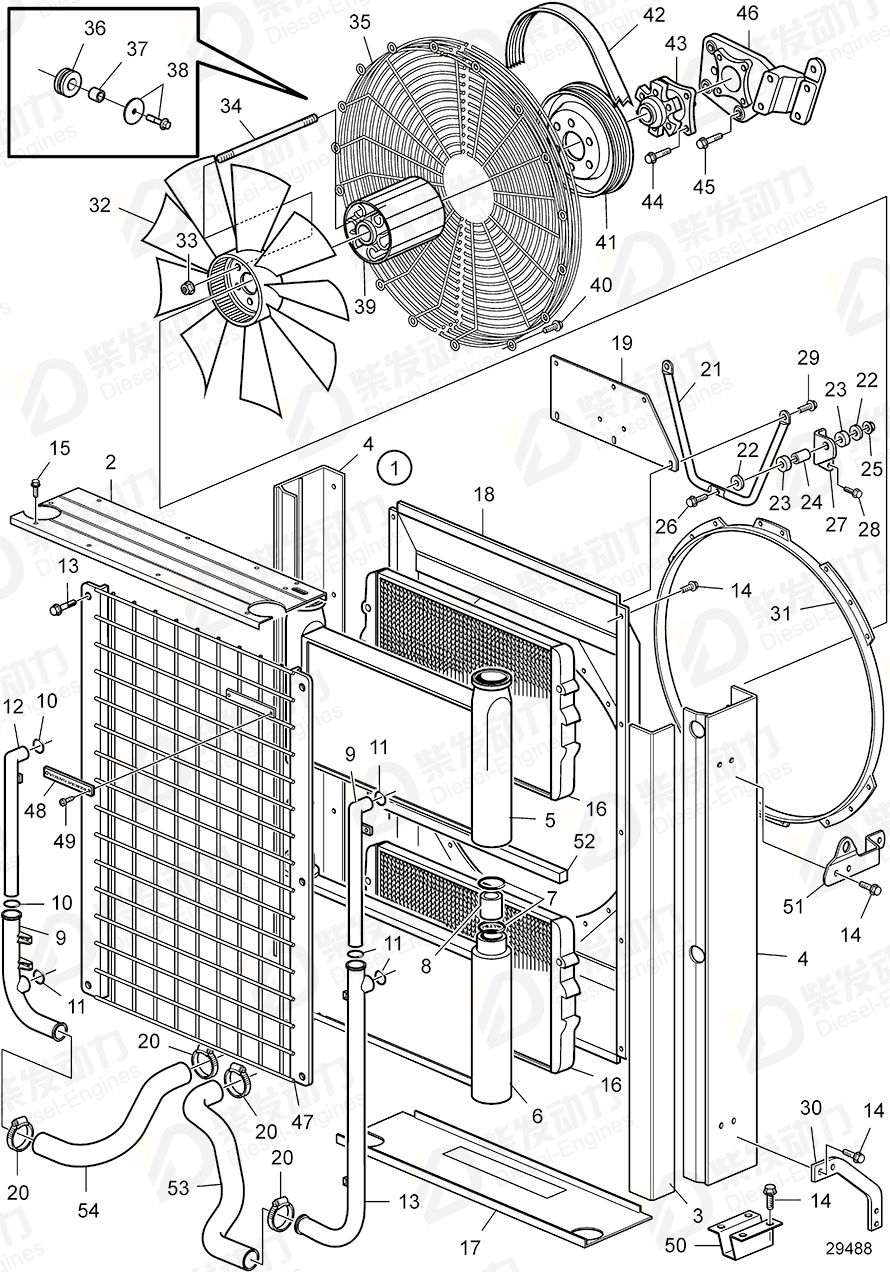

| No. | Part Name | Part Number | Qty | Description |
| 2 | Frame profile | 3587701 | 1 | |
| 3 | Frame profile | 3587742 | 2 | |
| 4 | Frame profile | 3587699 | 1 | |
| 5 | Charge air cooler | 3838129 | 1 | |
| 6 | Charge air cooler | 3587692 | 1 | |
| 7 | O-ring | 3587694 | 8 | |
| 8 | Intermediate pipe | 3587693 | 2 | |
| 9 | Radiator piping | 3587695 | 1 | |
| 10 | Radiator piping | 3587697 | 1 | |
| 11 | O-ring | 3587350 | 6 | |
| 12 | Radiator piping | 3587696 | 1 | |
| 13 | Radiator piping | 3587698 | 1 | |
| 14 | Flange screw | 984733 | 18 | |
| 15 | Screw | 3587729 | 22 | |
| 16 | Radiator | 3838130 | 2 | |
| 17 | Frame profile | 3587700 | 1 | |
| 18 | Fan shroud | 3838131 | 1 | |
| 19 | Bracket | 3587730 | 1 | |
| 20 | Hose clamp | 943480 | 4 | MO-XXXXX/98707., (951797) |
| 21 | Stay | 889223 | 1 | |
| 22 | Washer | 948556 | 2 | |
| 23 | Rubber bushing | 866857 | 2 | |
| 24 | Spacer sleeve | 252202 | 1 | |
| 25 | Flange nut | 966818 | 1 | Alt |
| 26 | Flange screw | 968302 | 1 | |
| 27 | Bracket | 889231 | 1 | |
| 28 | Flange screw | 984752 | 3 | |
| 29 | Flange screw | 946472 | 2 | |
| 30 | Bracket | 3808825 | 1 | Left |
| 30 | Bracket | 3808827 | 1 | Right |
| 31 | Fan ring | 3827612 | 1 | |
| 31 | Fan ring | 78467816 | 1 | For Fan guard 78467466 |
| 32 | Fan | 3828963 | 1 | Suction fan, D=890mm |
| 33 | Flange lock nut | 971098 | 6 | |
| 34 | Stud | 130204 | 6 | |
| 35 | Fan guard | 3825490 | 2 | |
| 35 | Fan guard | 78467466 | 2 | |
| 36 | Rubber damper | 21860181 | 12 | |
| 37 | Spacer sleeve | 845988 | 12 | |
| 38 | Flange screw | 22147274 | 12 | |
| 39 | Fan hub | 3829537 | 1 | |
| 40 | Flange screw | 994386 | 12 | |
| 41 | Pulley | 3828043 | 1 | Ratio 1:0,84, Not for TAD1374VE, TAD1375VE |
| 42 | V-ribbed belt | 3819398 | 1 | For TAD1640GE SN2016029185- |
| 42 | V-ribbed belt | 3827075 | 1 | For TAD1640GE SN-2016029184 |
| 43 | Fan hub | 21924453 | 1 | |
| 44 | Flange screw | 984754 | 4 | |
| 45 | Flange screw | 965221 | 5 | |
| 46 | Bracket | 3830000 | 1 | |
| 47 | Radiator protector | 3829123 | 1 | Replaced by 21154155 |
| 47 | Radiator protector | 21154155 | 1 | |
| 48 | Emblem | 846118 | 1 | |
| 49 | Screw | 941651 | 2 | |
| 50 | Frame profile | 3587744 | 1 | |
| 51 | Bracket | 3830508 | 1 | Right |
| 51 | Bracket | 3830509 | 1 | Left |
| 52 | Sealing strip | 3587741 | 4 | |
| 53 | Radiator hose | 3809808 | 1 | |
| 54 | Radiator hose | 3809806 | 1 |
| Item | Part Name | Part No. |
| 11 | O-ring 3587350 | 3587350 |
| Details | |
| Engine model | TAD1640GE, TAD1641GE, TAD1642GE TAD1641VE, TAD1642VE TAD1641VE, TAD1642VE, TAD1643VE, TAD1650VE, TAD1660VE, TAD1661VE, TAD1662VE |
| Application | Radiator and Pushing Fan. SN-2016028724 Radiator and Sunktion Fan. SN-2016079647 |
