O-ring 3812484

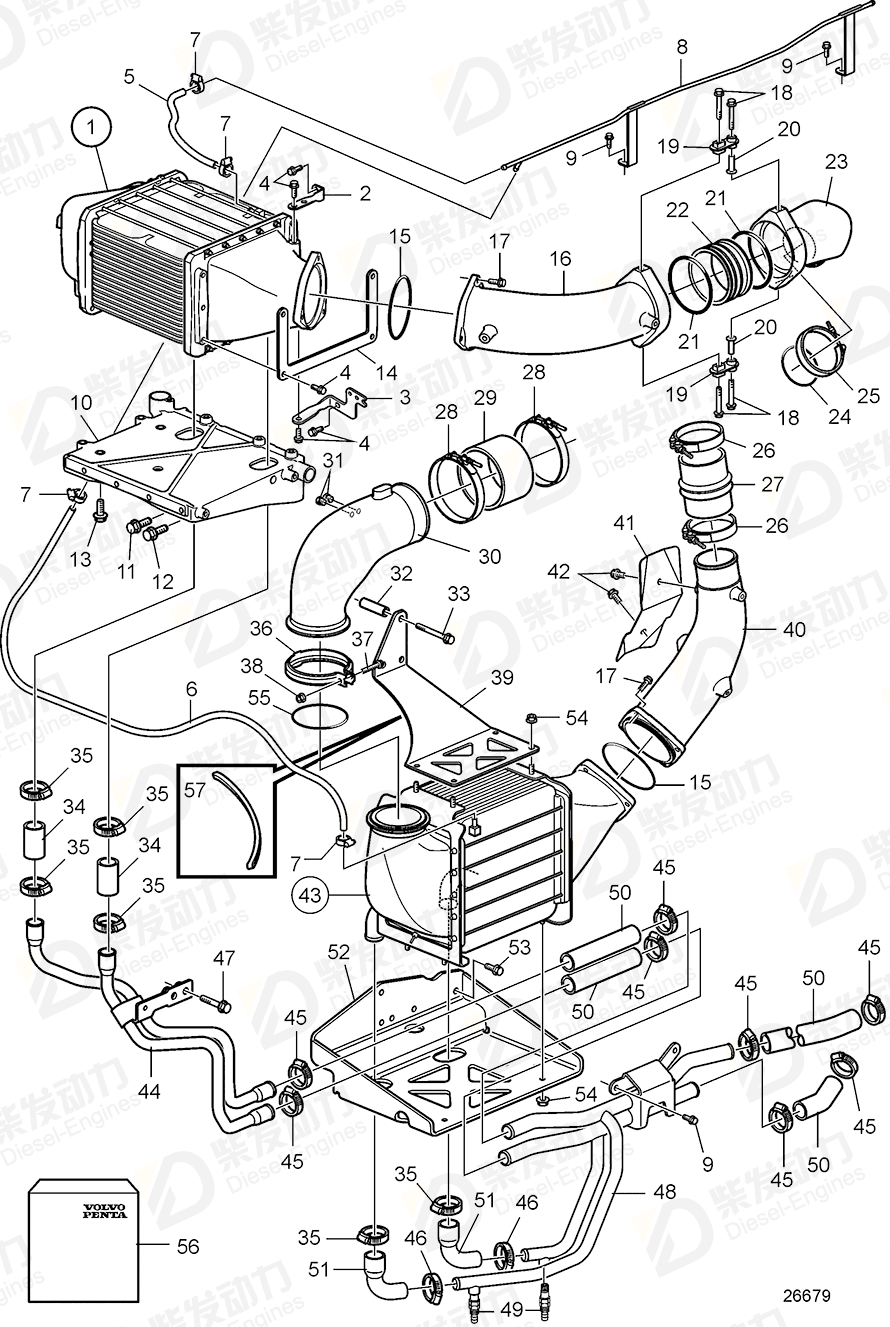

| No. | Part Name | Part Number | Qty | Description |
| 1 | Charge air cooler | 3886562 | 1 | Replaced by 21245572 |
| 1 | Charge air cooler | 21245200 | 1 | Replaced by 21945663 |
| 1 | Charge air cooler | 21245572 | 1 | Replaced by 21245200 |
| 1 | Charge air cooler | 21757126 | 1 | |
| 1 | Charge air cooler | 21945663 | 1 | Ersatt av 21757126 |
| 2 | Bracket | 3883562 | 2 | |
| 3 | Bracket | 3595478 | 1 | SN2016108371- |
| 3 | Bracket | 21736480 | 1 | SN-2016108370 |
| 4 | Flange screw | 984734 | 8 | |
| 5 | Rubber hose | 943366 | 1 | L=600mm late type |
| 6 | Rubber hose | 943366 | 1 | L=600mm late type |
| 7 | Hose clamp | 994555 | 4 | |
| 8 | Air vent pipe | 3886012 | 1 | |
| 9 | Flange screw | 984733 | 4 | |
| 10 | Bracket | 21723126 | 1 | |
| 11 | Flange screw | 965194 | 2 | |
| 12 | Flange screw | 965226 | 4 | L=45mm |
| 13 | Flange screw | 984755 | 4 | |
| 14 | Bracket | 3842094 | 1 | |
| 15 | O-ring | 948888 | 2 | |
| 16 | Connecting pipe | 3593652 | 1 | |
| 17 | Flange screw | 984735 | 7 | |
| 18 | Flange screw | 973924 | 4 | |
| 19 | Link arm | 3594032 | 2 | |
| 20 | Sleeve | 3849960 | 2 | |
| 21 | O-ring | 3812484 | 2 | |
| 22 | Connector | 3808387 | 1 | |
| 23 | Connecting pipe | 3593649 | 1 | |
| 24 | O-ring | 945512 | 1 | |
| 25 | V-clamp | 3886542 | 1 | |
| 26 | Hose clamp | 865575 | 2 | |
| 27 | Charge air hose | 865127 | 1 | |
| 28 | Hose clamp | 1544735 | 2 | |
| 29 | Charge air hose | 3841259 | 1 | |
| 30 | Connecting pipe | 3819654 | 1 | |
| 31 | Plug | 479979 | 2 | |
| 32 | Spacer | 3883335 | 3 | |
| 33 | Flange screw | 984760 | 3 | |
| 34 | Hose | 952974 | 1 | |
| 35 | Hose clamp | 994561 | 6 | |
| 36 | V-clamp | 1624612 | 1 | |
| 37 | Flange screw | 973924 | 1 | |
| 38 | Flange lock nut | 990950 | 1 | |
| 39 | Bracket | 3840411 | 1 | Replaced by 21297785 |
| 39 | Bracket | 21297785 | 1 | |
| 40 | Connecting pipe | 3840414 | 1 | |
| 41 | Heat shield | 3883371 | 1 | |
| 42 | Flange screw | 984732 | 2 | |
| 43 | Charge air cooler | 3819674 | 1 | Replaced by 21245553 |
| 43 | Charge air cooler | 21245553 | 1 | Ersatt av 21709397 |
| 43 | Charge air cooler | 21709397 | 1 | Ersatt av 21945675 |
| 43 | Charge air cooler | 21712163 | 1 | |
| 43 | Charge air cooler | 21945675 | 1 | Ersatt av 21712163 |
| 44 | Coolant pipe | 3842108 | 1 | Replaced by 22995887 |
| 44 | Coolant pipe | 22995887 | 1 | |
| 45 | Hose clamp | 994560 | 6 | |
| 46 | Hose clamp | 994561 | 2 | |
| 47 | Flange screw | 975112 | 2 | |
| 48 | Coolant pipe | 22432253 | 1 | |
| 49 | Shut-off cock | 949918 | 2 | (82745) |
| 50 | Hose | 952973 | 1 | L = 110 MM |
| 51 | Hose | 3842112 | 2 | |
| 52 | Bracket | 3819698 | 1 | Replaced by 3889909 |
| 52 | Bracket | 3889909 | 1 | Replaced by 23002494 |
| 52 | Bracket | 23002494 | 1 | |
| 53 | Flange screw | 984752 | 3 | |
| 54 | Flange nut | 990940 | 8 | |
| 55 | O-ring | 975610 | 1 | For engines without air compressor. |
| 56 | Spare parts kit | 21110401 | 1 | For 3819674 |
| 57 | Moulding | 22000711 | 1 |
| Item | Part Name | Part No. |
| 21 | O-ring 3812484 | 3812484 |
| Details | |
| Engine model | TWD1643GE TWD1643GE, TWD1652GE, TWD1653GE, TWD1663GE TWD1663GE |
| Application | After Cooler and Installation Components Intake and Exhaust Manifold SN-2016103090 Repair Kits |
