O-ring 423281

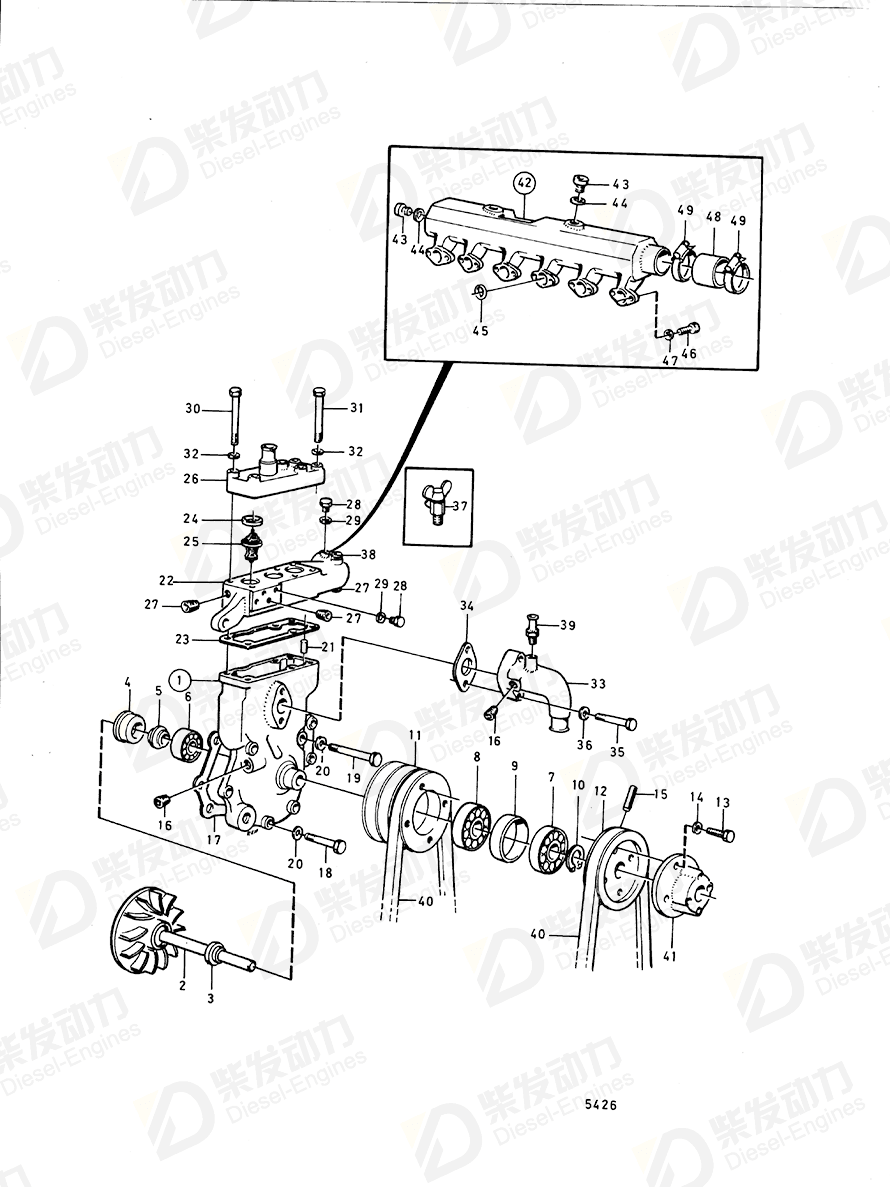

| No. | Part Name | Part Number | Qty | Description |
| 1 | Water pump | 822330 | 1 | |
| 1 | Coolant pump | 3803206 | 1 | |
| 2 | Shaft | 823484 | 1 | |
| 3 | Wear ring | 421306 | 1 | |
| 4 | Sealing ring | 1542833 | 1 | |
| 5 | Deflector | 70913 | 1 | |
| 6 | Ball bearing | 181670 | 1 | |
| 7 | Ball bearing | 11013 | 1 | |
| 8 | Ball bearing | 181538 | 1 | |
| 9 | Spacer sleeve | 422202 | 1 | |
| 10 | Retaining ring | 914462 | 1 | |
| 11 | V-belt pulley | 423125 | 1 | |
| 12 | V-belt pulley | 422499 | 1 | Replaced by late production of drive device and 1pc 837710,4PCS 955534,4PCS 942336,1pc 837711, 1pc 74033,1pc 837709,2pcs 957171,1pc 11994 and 1pc 925254. |
| 13 | Hexagon screw | 955525 | 4 | |
| 14 | Spring washer | 941907 | 4 | |
| 15 | Spring pin | 951969 | 1 | Spec. 867139. |
| 16 | Plug | 952077 | 2 | |
| 17 | Gasket | 423351 | 1 | |
| 18 | Hexagon screw | 955536 | 5 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 19 | Hexagon screw | 955542 | 2 | |
| 20 | Spring washer | 942336 | 7 | |
| 21 | Spring pin | 951973 | 2 | |
| 22 | Thermostat housing | 836788 | 1 | |
| 23 | Gasket | 423352 | 1 | |
| 24 | Sealing ring | 416033 | 3 | |
| 25 | Thermostat kit | 3831425 | 1 | 76°C later prod |
| 26 | Upper section | 822344 | 1 | |
| 27 | Plug | 952077 | 4 | |
| 28 | Plug | 180761 | 3 | |
| 29 | Gasket | 11996 | 3 | |
| 30 | Hexagon screw | 959796 | 2 | L=140mm |
| 30 | Hexagon screw | 959798 | 2 | |
| 31 | Hexagon screw | 959796 | 4 | L=140mm |
| 31 | Hexagon screw | 959798 | 4 | |
| 32 | Washer | 940097 | 6 | |
| 33 | Pipe elbow, pipe | 423137 | 1 | For turbo with rotor 842832., (822430) |
| 34 | Gasket | 423138 | 1 | |
| 35 | Hexagon screw | 955540 | 2 | MOXXXXX/105195- |
| 36 | Spring washer | 942336 | 2 | |
| 37 | Shut-off cock | 82745 | 1 | |
| 38 | Plug | 952075 | 1 | |
| 39 | Nipple | 941845 | 1 | |
| 41 | Hub | 422493 | 1 | Replaced by late production of drive device and 1pc 837710,4PCS 955534,4PCS 942336,1pc 837711, 1pc 74033,1pc 837709,2pcs 957171,1pc 11994 and 1pc 925254. |
| 42 | Water pipe | 468552 | 1 | |
| 43 | Plug | 467366 | 3 | |
| 44 | Gasket | 468463 | 3 | |
| 45 | O-ring | 423281 | 6 | |
| 46 | Hexagon screw | 955525 | 12 | |
| 47 | Spring washer | 941907 | 12 | |
| 48 | Radiator hose | 470464 | 1 | (468216) |
| 49 | Overhaul kit | 875461 | 1 | See group 10A |
| 49 | Hose clamp | 943480 | 2 | MO-XXXXX/98707., (951797) |
| Item | Part Name | Part No. |
| 45 | O-ring 423281 | 423281 |
| Details | |
| Engine model | D120A TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TD120A TD120C TD120G TD120GG TD120HP-86 TD120HPP TD1210G, TWD1210G, TWD1211G TD121CHC TD121CRC TD121G TD121G-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE TD121GG TD121GG, TD121GGP TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD121GP-87, TWD1211P TD121GPB-87 TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP TID121K-87 TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121KG-87 TID121KGP TID121KP-87, TID121KPB-87 TID121L-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG TID121LG, TID121LP TID121LG-87 TID121LGP-87 TID121LP TID121LP-87, TID121LPB-87 TWD1210P TWD1210P, TWD1211P TWD1210V, TWD1211V TWD1230ME TWD1230VE, TWD1231VE TWD1231VE |
| Application | Repair Kits Repair Kits, Repair Kits,: A Repair Kits,: B Repair Kits: A Repair Kits: B Repair Kits: C Repair Kits: D Thermostat and Water Pump with Installation Components Thermostat and Water Pump with Installation Components: A Thermostat and Water Pump with Installation Components: B Thermostat and Water Pump with Installation Components: C Thermostat and Water Pump with Installation Components: D THERMOSTAT AND WATER PUMP WITH INSTALLATION COMPONENTS: TID121FP Water Pump and Thermostat Housing Water Pump and Thermostat Housing, Earlier Prod. Water Pump and Thermostat Housing, Later Prod.: A Water Pump and Thermostat Housing, Later Prod.: B Water Pump and Thermostat Housing, Later Prod.: C Water Pump and Thermostat SN-XXXXXXXXXX/21158 Water Pump and Thermostat SNXXXXXXXXXX/211549-: A Water Pump and Thermostat SNXXXXXXXXXX/211549-: B Water Pump and Thermostat: A Water Pump and Thermostat: B |
