O-ring 862402

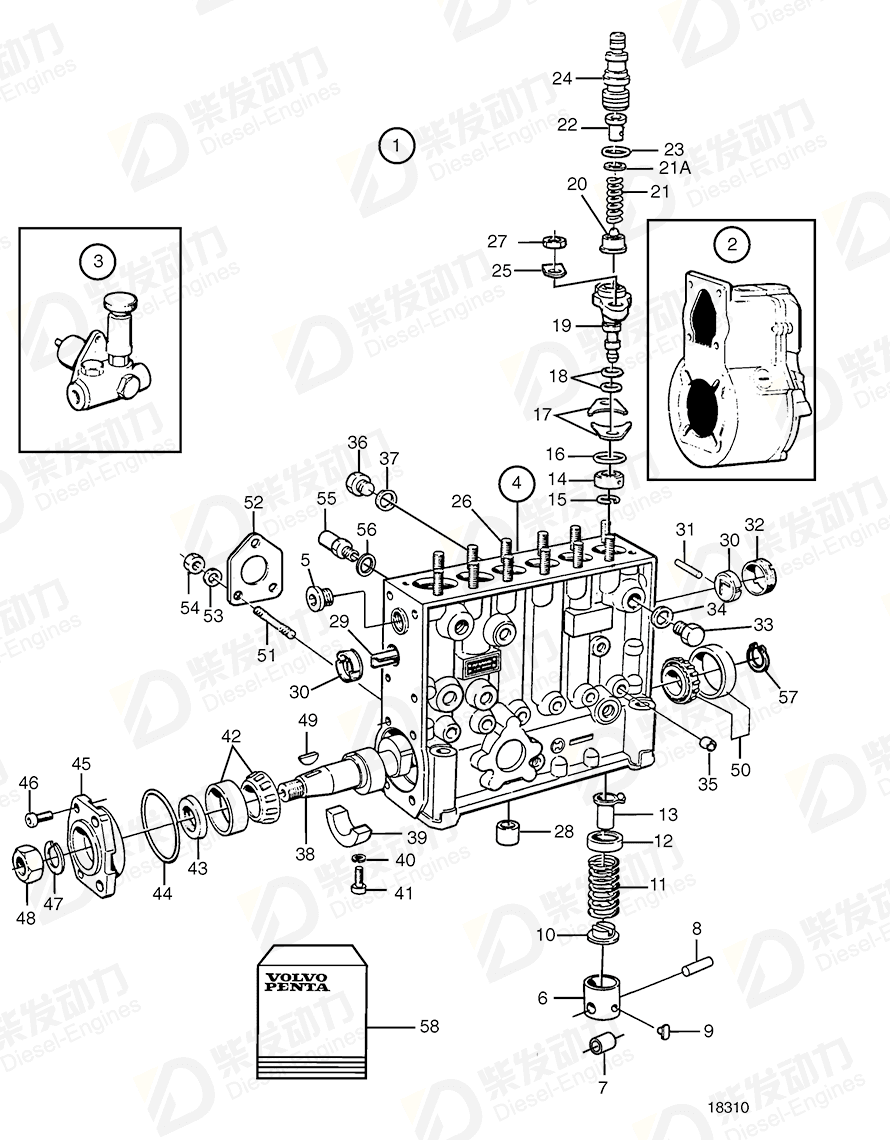

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 849441 | 1 | |
| 1 | Injection pump, exch | 3803697 | 1 | |
| 2 | Governor | 863473 | 1 | |
| 3 | Feed pump | 863474 | 1 | |
| 5 | Plug | 240121 | 1 | |
| 6 | Tappet | 862409 | 6 | |
| 10 | Spring disc | 862408 | 6 | |
| 11 | Compression spring | 862407 | 6 | |
| 12 | Spring disc | 239984 | 6 | |
| 13 | Control sleeve | 862406 | 6 | |
| 14 | Cap | 862401 | 6 | |
| 15 | Retaining ring | 848299 | 6 | Included in small parts kit |
| 16 | O-ring | 862402 | 6 | Included in small parts kit. |
| 17 | Shim | 244381 | 1 | TH=1,50mm |
| 17 | Shim | 244382 | 1 | TH=1,60mm |
| 17 | Shim | 244383 | 1 | TH=1,70mm |
| 17 | Shim | 244384 | 1 | TH=1,80mm |
| 17 | Shim | 244385 | 1 | TH=1,90mm |
| 17 | Shim | 244386 | 1 | TH=2,00mm |
| 17 | Shim | 244633 | 1 | TH=1,2mm |
| 17 | Shim | 244634 | 1 | TH=1,3mm |
| 17 | Shim | 244635 | 1 | TH=1,4mm |
| 17 | Shim | 244908 | 1 | TH=0,75mm |
| 17 | Shim | 244909 | 1 | TH=0,95mm |
| 17 | Shim | 244910 | 1 | TH=1,05mm |
| 17 | Shim | 244911 | 1 | TH=1,15mm |
| 17 | Shim | 244912 | 1 | TH=1.55mm |
| 17 | Shim | 244913 | 1 | TH=1,65mm |
| 17 | Shim | 244914 | 1 | TH=1,75mm |
| 17 | Shim | 244915 | 1 | TH=2.15mm |
| 17 | Shim | 244916 | 1 | TH=2.20mm |
| 17 | Adjusting washer | 844990 | 1 | TH=0.40mm |
| 17 | Adjusting washer | 844991 | 1 | TH=0.50mm |
| 17 | Adjusting washer | 844992 | 1 | TH=0.70mm |
| 17 | Adjusting washer | 844993 | 1 | TH=0.80mm |
| 17 | Adjusting washer | 844994 | 1 | TH=1.00mm |
| 17 | Adjusting washer | 844995 | 1 | TH=1.10mm |
| 17 | Adjusting washer | 844996 | 1 | TH=1,30mm |
| 17 | Washer | 845238 | 1 | TH=0.9mm |
| 17 | Adjusting plate | 847428 | 1 | TH=0.45mm |
| 17 | Adjusting plate | 847429 | 1 | TH=0.6mm |
| 17 | Adjusting plate | 847430 | 1 | TH=0,85mm |
| 17 | Adjusting plate | 847431 | 1 | TH=1,35mm |
| 17 | Adjusting plate | 847432 | 1 | TH=1,45mm |
| 17 | Adjusting plate | 847433 | 1 | TH=2,1mm |
| 18 | O-ring | 240422 | 12 | |
| 19 | Pump element | 863498 | 6 | |
| 20 | Delivery valve | 1697952 | 6 | |
| 21 | Washer | 240973 | 1 | TH=0.5mm |
| 21 | Compression spring | 862397 | 6 | |
| 22 | Spacer | 862396 | 6 | Included in small parts kit. |
| 23 | O-ring | 862400 | 6 | Included in small parts kit. |
| 24 | Valve retainer | 1697950 | 6 | |
| 25 | Washer | 862404 | 12 | |
| 26 | Stud | 862403 | 12 | |
| 27 | Nut | 862405 | 12 | |
| 29 | Control rod | 240907 | 1 | |
| 30 | Bushing | 240014 | 2 | |
| 31 | Spring pin | 244008 | 1 | (131015) |
| 32 | Washer | 244699 | 2 | (240015) |
| 33 | Screw | 847439 | 1 | |
| 34 | Sealing ring | 239897 | 1 | |
| 35 | Cap | 244076 | 6 | |
| 37 | Gasket | 11996 | 1 | |
| 39 | Bearing | 1697955 | 1 | |
| 42 | Bearing | 862420 | 1 | |
| 43 | Sealing ring | 3825543 | 1 | Included in small parts kit. |
| 44 | O-ring | 862423 | 1 | Included in small parts kit. |
| 45 | Bearing cover | 862421 | 1 | |
| 46 | Screw | 862415 | 4 | |
| 47 | Spring washer | 941914 | 1 | |
| 48 | Hexagon nut | 955807 | 1 | |
| 49 | Key | 35168 | 1 | |
| 51 | Stud | 130673 | 3 | |
| 52 | Gasket | 863370 | 1 | |
| 53 | Spring washer | 941906 | 3 | |
| 54 | Hexagon nut | 940197 | 3 | |
| 55 | Overflow valve | 479775 | 1 | |
| 56 | Washer | 239987 | 1 | |
| 57 | Retaining ring | 914459 | 1 | |
| 58 | Spare parts kit | 862425 | 1 | |
| 21A | Washer | 240972 | 1 | TH=0.2mm |
| Item | Part Name | Part No. |
| 16 | O-ring 862402 | 862402 |
| Details | |
| Engine model | TAD1630P, TWD1630P, TWD1630PP, TAD1630PB TAD1630V, TWD1630V TD164KAE TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG, TID121LP TWD1620G |
| Application | Fuel Injection Pump, Components Fuel Injection Pump, Components: 3803738 Fuel Injection Pump: 848193 Fuel Injection Pump: 848910 Fuel Injection Pump: 864196 Repair Kits |
| Specification | |
| Descriptions | Included in small parts kit. |
