O-ring 925059

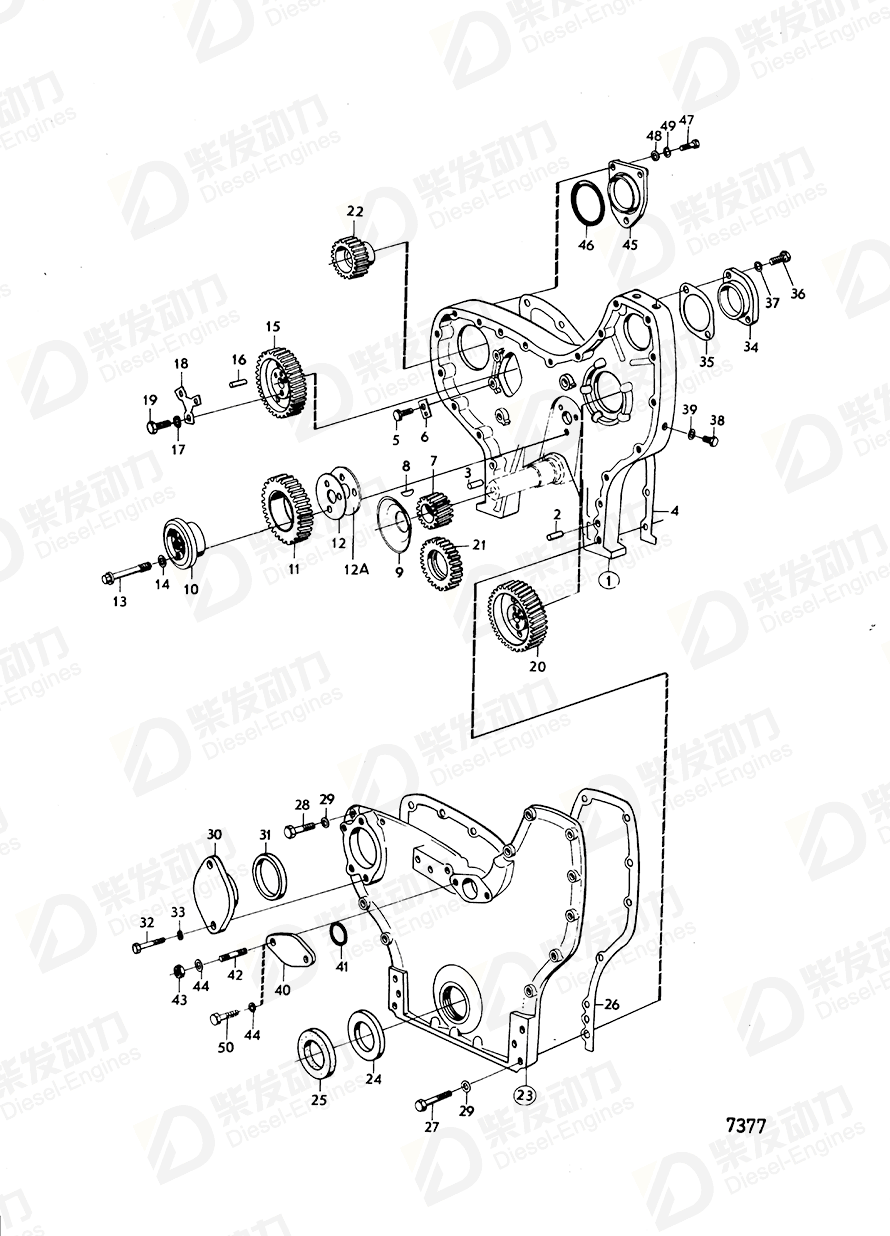

| No. | Part Name | Part Number | Qty | Description |
| 1 | Timing gear casing | 421413 | 1 | |
| 2 | Pin | 941511 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 3 | Pin | 941510 | 1 | For Aquamatic drive unit and Duoprop drive unit. |
| 4 | Gasket | 421057 | 1 | |
| 5 | Hexagon screw | 955525 | 5 | |
| 6 | Tab washer | 941571 | 5 | |
| 7 | Crankshaft gear | 421080 | 1 | |
| 8 | Woodruff key | 422253 | 1 | |
| 9 | Oil deflector | 420172 | 1 | |
| 10 | Bearing spindle | 467463 | 1 | MB20A MO-1470/XXXX. |
| 11 | Idler gear | 467461 | 1 | MB20A MO-1470/XXXX. |
| 12 | Thrust washer | 467529 | 1 | MO-608/XXXX. |
| 13 | Screw | 422316 | 3 | |
| 14 | Disc spring | 942180 | 3 | MO-56861/XXXXX |
| 15 | Gear | 421079 | 1 | |
| 16 | Pin | 950588 | 1 | |
| 17 | Washer | 467055 | 3 | |
| 18 | Lock washer | 467052 | 1 | |
| 19 | Hexagon screw | 940128 | 3 | |
| 20 | Gear | 421079 | 1 | |
| 21 | Idler gear | 421046 | 1 | |
| 22 | Gear | 423087 | 1 | |
| 23 | Cap | 896632 | 1 | |
| 24 | Sealing ring | 471055 | 1 | |
| 25 | Sealing ring | 942083 | 1 | |
| 26 | Gasket | 421061 | 1 | |
| 27 | Hexagon screw | 955530 | 1 | |
| 27 | Hexagon screw | 955532 | 6 | Only for thermoswitch control 837500,837501., L=95mm |
| 28 | Hexagon screw | 940136 | 2 | |
| 28 | Hexagon screw | 940186 | 8 | |
| 28 | Hexagon screw | 955527 | 4 | |
| 29 | Spring washer | 941907 | 21 | |
| 30 | Cover | 420183 | 1 | |
| 31 | Seal | 420213 | 1 | |
| 32 | Hexagon screw | 940115 | 2 | |
| 33 | Spring washer | 942336 | 2 | |
| 34 | Cover | 420183 | 1 | |
| 35 | Gasket | 820751 | 1 | |
| 36 | Hexagon screw | 940115 | 2 | |
| 37 | Spring washer | 942336 | 2 | |
| 38 | Plug | 943681 | 1 | AQ115A compression 8,4:1. |
| 39 | O-ring | 925059 | 1 | AQ115A compression 8,4:1. |
| 40 | Sealing cover | 823110 | 1 | |
| 41 | O-ring | 925254 | 1 | |
| 42 | Stud | 953257 | 2 | L = 35 MM |
| 43 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 44 | Spring washer | 942336 | 2 | |
| 45 | Cover | 420178 | 1 | |
| 46 | Gasket | 413619 | 1 | |
| 47 | Hexagon screw | 955576 | 3 | |
| 48 | Spring washer | 941911 | 3 | |
| 49 | Spring washer | 941911 | 3 | |
| 12A | Bearing shield | 467528 | 1 | MO-608/XXXX. |
| Item | Part Name | Part No. |
| 39 | O-ring 925059 | 925059 |
| Details | |
| Engine model | D100A D100A, D100B, TD100A D100B D100BHC D100BRC D120A D120A, TD120A D42A D70B D70CHC D70CHC, TD70CHC D70CRC TAD1030P TAD120AHC TAD120BHC TAD120CHC TAD121CHC TD100A TD100AHC TD100ARC TD100CHC TD100CRC TD100G TD100G-85 TD100G-87 TD100GG TD100GG-85 TD100GP TD100GP-85 TD1030ME TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120C TD120G TD120GG TD120HP-86 TD120HPP TD121CHC TD121CRC TD121G TD121G-87 TD121G-87, TD121GG-87, TD121GGP-87, TD121GPB-87 TD121GG TD121GG, TD121GG-86, TD121GG-87, TD121GGP-87 TD121GG, TD121GGP TD121GG-86 TD121GG-87 TD121GGP-87 TD121GP-87 TD30A TD40A TD45B TD60A TD60A, TD60B TD60B TD60D TD60D-83 TD70B TD70CHC TD70CRC TD70G TD70G-83 TID100K TID100KG TID100KP TID120FG TID120HPP TID121FG TID121K TID121K, TID121KG, TID121KP TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TID121K-87 TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87 TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121KG TID121KG-87 TID121KGP TID121KP TID121KP-87 TID121KPB-87 TID121L-87 TID121L-87, TID121LG-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TID121LG TID121LG, TID121LP TID121LG-87 TID121LP TID121LP-87 TID121LPB-87 TID60D TID60DG TID70G TWD1030ME |
| Application | Axle Rear Axle Direction Circulation Pump and Drive Device with Installation Components Electrical Equipment ELECTRICAL EQUIPMENT: A ELECTRICAL EQUIPMENT: B ELECTRICAL EQUIPMENT: C ELECTRICAL EQUIPMENT: D Electrical Materials ELECTRICAL SYSTEM AND INSTRUMENT Electrical System and Instrument: A Electrical System and Instrument: B ELECTRICAL SYSTEM AND INSTRUMENTS Electrical System and Instruments Excl Spec 867108, 867153: B Electrical System and Instruments Excl Spec 867108, 867153: C Electrical System and Instruments: A Electrical System and Instruments: B Electrical System and Instruments: C Electrical System and Instruments: TD120HP86 Electrical System and Instruments: TD121GPB-87 ELECTRICAL SYSTEM AND INSTRUMENTS: TID121FP Electrical System and Instruments: TID121LGP87 Electrical System and Instruments: TID121LGUT Electrical System: A Electrical System: B Electrical System: C Electrical System: D Electronic Speed Control and Stop Solenoid Electronic Speed Control and Stop Solenoid Type ''AMBAC'' Electronic Speed Control and Stop Solenoid Type AMBAC Electronic Speed Control and Stop Solenoid Type AMBAC: A Electronic Speed Control and Stop Solenoid Type AMBAC: B Induction and Exhaust Manifold: A Induction and Exhaust Manifold: B LUBRICATING SYSTEM Lubricating System: A Lubricating System: B Oil Cooler with Installation Components Oil Filter and Installation Components Oil Filter with Installation Components REPAIR KIT Repair Kit: A Repair Kit: B Repair Kits Repair Kits, Repair Kits,: A Repair Kits,: B REPAIR KITS: A REPAIR KITS: B REPAIR KITS: C REPAIR KITS: D Repair Kits: TD100-87 Timing Gear Casing and Gear: A Timing Gear Casing and Gear: B Timing Gear Casing and Gear: C Timing Gear Casing and Gear: D Timing Gear Casing and Gears Timing Gear Casing and Gears: A Timing Gear Casing and Gears: B Timing Gear Casing and Gears: C TIMING GEAR CASING AND TIMING GEAR: A TIMING GEAR CASING AND TIMING GEAR: B TIMING GEAR CASING AND TIMING GEAR: C TIMING GEAR CASING AND TIMING GEAR: D Timing Gear Casing and Timing Gears Timing Gear Casing and Timing Gears: A Timing Gear Casing and Timing Gears: B Timing Gear Housing |
| Specification | |
| Descriptions | AQ115A compression 8,4:1. For instrument panel 841094 and 841095., 24Vlate production. See group 2A See group 2B |
