O-ring 926039

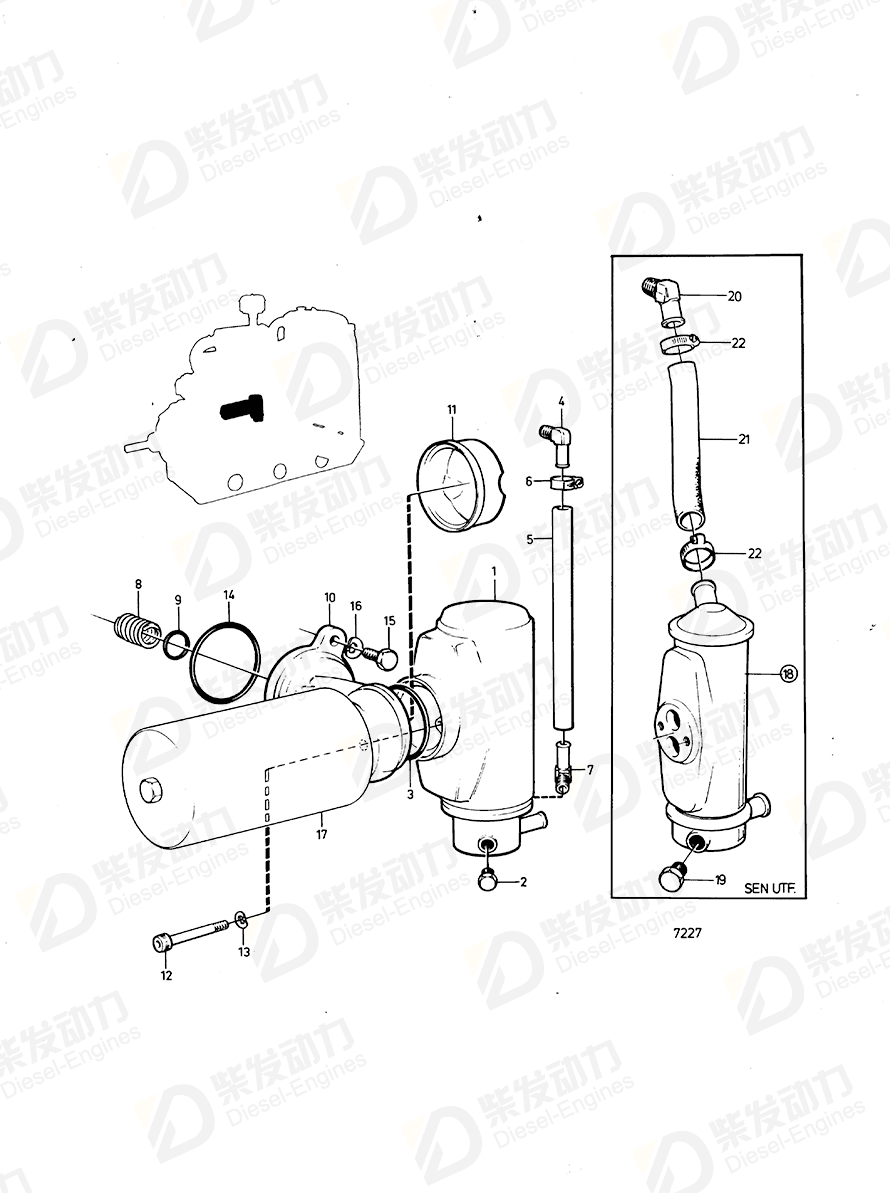

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil cooler | 787062 | 1 | REPLACED BY 1PC 4804681 OIL COOLER, 1PC 942590 ANGLE CONNECTION, 45MM 943369 HOSE AND 2PCS 943473 HOSE CLAMP., EARLY TYPE |
| 2 | Plug | 192134 | 1 | |
| 2 | Drain cock | 820436 | 1 | |
| 3 | O-ring | 926039 | 1 | |
| 4 | Nipple | 787113 | 1 | |
| 5 | Rubber hose | 943368 | 1 | L=4000mm |
| 6 | Hose clamp | 943473 | 2 | |
| 7 | Hose nipple | 961606 | 1 | |
| 8 | Nipple | 785816 | 1 | |
| 9 | O-ring | 926033 | 1 | |
| 10 | Bracket | 4804523 | 1 | (785798) |
| 11 | Cover | 785899 | 1 | FOR ENGINE WITHOUT OIL COOLER |
| 12 | Hex. socket screw | 959240 | 2 | |
| 13 | Toothed washer | 940109 | 2 | |
| 14 | O-ring | 926040 | 1 | |
| 15 | Hexagon screw | 955535 | 2 | |
| 16 | Toothed washer | 955950 | 2 | |
| 17 | Oil filter | 6612598 | 1 | |
| 18 | Oil cooler | 4804681 | 1 | LATE TYPE |
| 19 | Plug | 180759 | 1 | |
| 20 | Elbow nipple | 942590 | 1 | |
| 21 | Rubber hose | 943369 | 1 | L=165 mm |
| 22 | Hose clamp | 943473 | 2 |
| Item | Part Name | Part No. |
| 3 | O-ring 926039 | 926039 |
| Details | |
| Engine model | D42A TD45B |
| Application | Oil Cooler Sidemounted with Installation Components: A Oil Cooler Sidemounted with Installation Components: B OIL COOLER, SIDE MOUNTED WITH INSTALLATION COMPONENTS REPAIR KIT |
