O-ring 947060

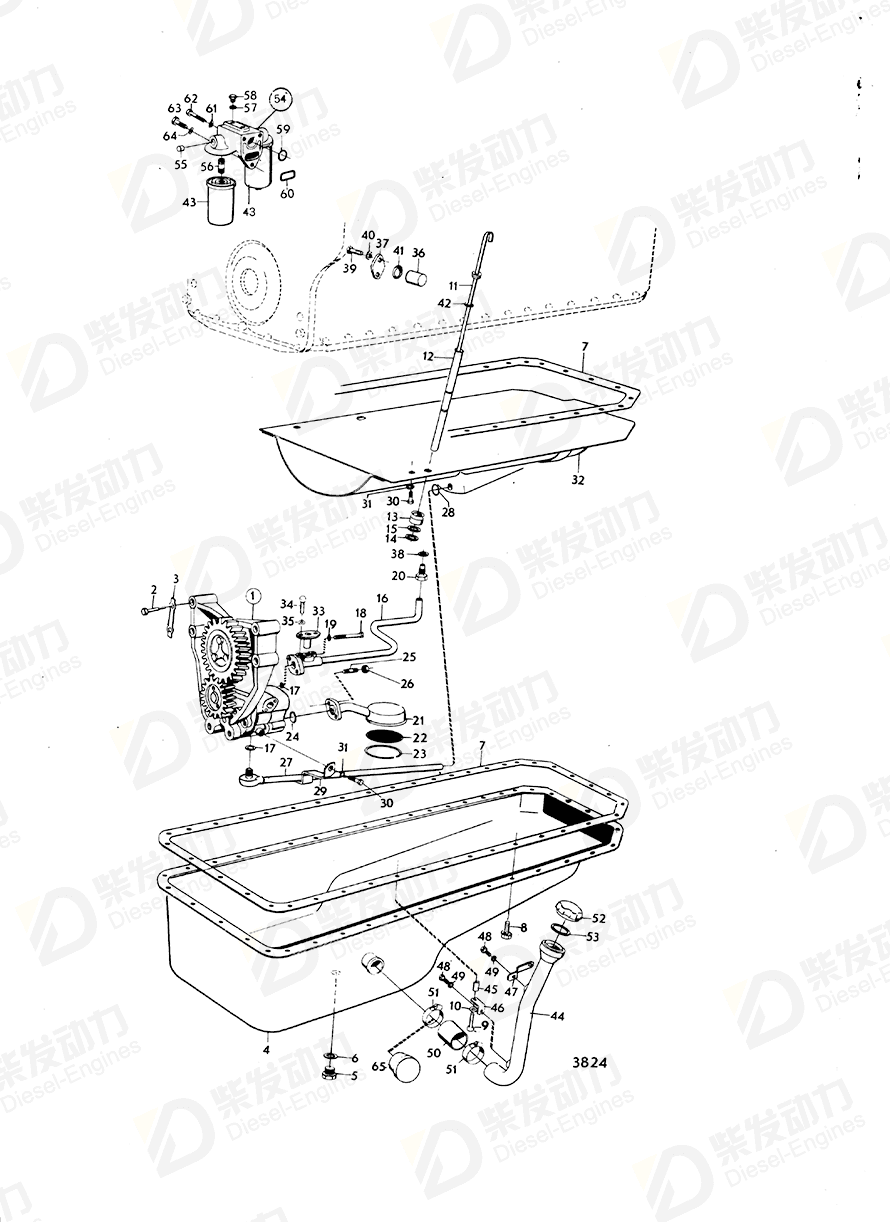

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 821120 | 1 | |
| 2 | Hexagon screw | 955538 | 4 | |
| 3 | Tab washer | 190529 | 2 | |
| 4 | Sump | 821345 | 1 | MO-40115/XXXXX |
| 4 | Oil pan | 823615 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-., Used on crankshaft 829999 |
| 5 | Magnetic plug | 192538 | 1 | |
| 6 | Gasket | 957185 | 1 | |
| 7 | Gasket | 422025 | 2 | |
| 8 | Flange screw | 944012 | 40 | |
| 9 | Hexagon screw | 955525 | 1 | |
| 10 | Spring washer | 941907 | 1 | |
| 11 | Oil dipstick | 823018 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 12 | Tube | 836179 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 13 | V-ring | 821988 | 1 | |
| 14 | Washer | 943056 | 1 | |
| 15 | Adjusting washer | 120656 | 1 | |
| 16 | Delivery pipe | 821483 | 1 | |
| 17 | O-ring | 947061 | 2 | |
| 18 | Hexagon screw | 192548 | 2 | |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Fitting | 822061 | 1 | |
| 21 | Oil strainer | 844392 | 1 | |
| 22 | Wire gauze | 414621 | 1 | |
| 23 | Retaining ring | 118125 | 1 | |
| 24 | O-ring | 948229 | 1 | Early type |
| 25 | Stud | 942596 | 2 | |
| 26 | Lock nut | 950353 | 2 | |
| 27 | Drain pipe | 822170 | 1 | |
| 28 | O-ring | 947060 | 1 | |
| 29 | Bracket | 821282 | 1 | |
| 30 | Hexagon screw | 955523 | 3 | |
| 31 | Spring washer | 941907 | 3 | |
| 32 | Baffle plate | 822143 | 1 | |
| 33 | Reduction valve | 875506 | 1 | |
| 34 | Hexagon screw | 940158 | 2 | |
| 35 | Spring washer | 941906 | 2 | |
| 36 | Sealing plug | 821919 | 1 | |
| 37 | Cap | 821655 | 1 | |
| 38 | Sealing ring | 822823 | 1 | |
| 39 | Hexagon screw | 940100 | 2 | |
| 40 | Spring washer | 941906 | 2 | |
| 41 | O-ring | 949721 | 1 | (925062) |
| 42 | O-ring | 955982 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 43 | Oil filter | 4785974 | 2 | |
| 44 | Oil filler pipe | 822885 | 1 | Used on crankshaft 829999., Alt |
| 45 | Spacer sleeve | 807183 | 1 | Used on crankshaft 829999. |
| 46 | Anchorage | 822887 | 1 | Used on crankshaft 829999 |
| 47 | Anchorage | 822890 | 1 | Used on crankshaft 829999 |
| 48 | Hexagon screw | 955524 | 2 | Used on crankshaft 829999. |
| 49 | Spring washer | 941907 | 2 | |
| 50 | Hose | 942711 | 1 | Used on crankshaft 829999., L=55mm |
| 51 | Hose clamp | 943478 | 2 | 62 (951794) |
| 52 | Oil filler cap | 420292 | 1 | |
| 53 | Gasket | 940096 | 1 | |
| 54 | Oil filter housing | 423064 | 1 | |
| 56 | Nipple | 423067 | 2 | |
| 57 | Gasket | 957185 | 2 | |
| 58 | Plug | 192114 | 2 | |
| 59 | O-ring | 949657 | 1 | (925060) |
| 60 | O-ring | 925069 | 1 | |
| 61 | Hexagon screw | 955543 | 2 | |
| 62 | Washer | 940097 | 2 | |
| 63 | Hexagon screw | 955535 | 1 | |
| 64 | Spring washer | 942336 | 1 | |
| 65 | Rubber cap | 837651 | 1 | Used on crankshaft 826834., Spec 867560 867561 867562 867563 867564 867565., Replaced by 818053., Alt |
| Item | Part Name | Part No. |
| 28 | O-ring 947060 | 947060 |
| Details | |
| Engine model | D100A, D100B D100B, TD100A D70B D70B, TD70B D70CRC TD100G, TD100G-85, TID100K TD100G-87 TD100G-87, TID100K-87 TD70B TD70CRC |
| Application | Lubricating System, 1000 Hours Running Lubricating System, 1000 Hours Running, Spec.9931, 9934, 867023 Lubricating System, 40° Inclination Lubricating System, Angle of Inclination 40° Lubricating System, Spec.9755, 9762, 9803, 9946, 867017, 867024,867045 Lubricating System: A Lubricating System: B Repair Kits: B Repair Kits: D |
| Specification | |
| Descriptions | D70B spec.867057,867058, (MOXXXXX/15607-,see lubricating system standard model),867059,867063,867221,867283.TD70B spec.867065 alt. |
