O-ring 960168

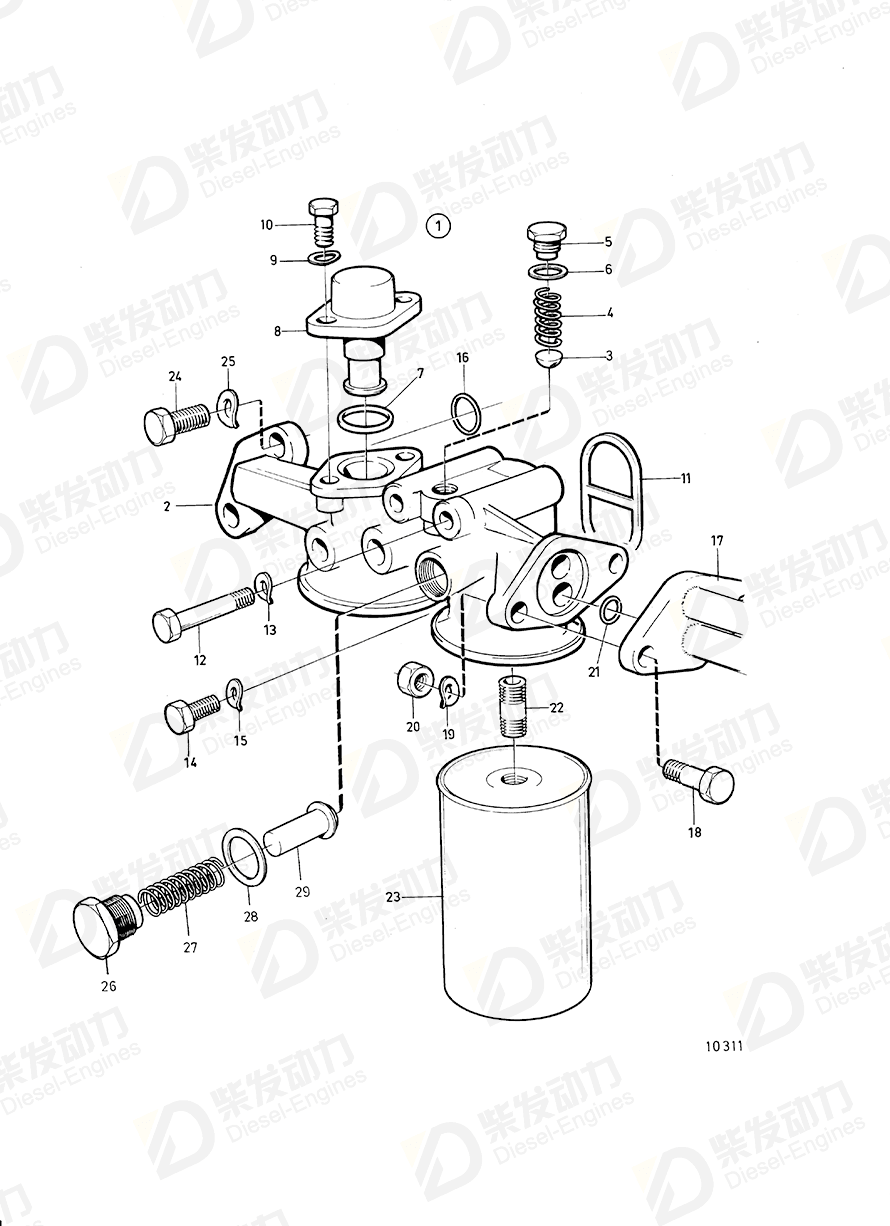

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 470979 | 1 | Compl repl by 470983 |
| 3 | Valve cone | 471085 | 1 | |
| 4 | Compression spring | 466653 | 1 | |
| 5 | Plug | 466624 | 1 | |
| 6 | Gasket | 947627 | 1 | |
| 7 | O-ring | 949659 | 1 | |
| 8 | Valve | 468838 | 1 | |
| 9 | Spring washer | 941906 | 1 | |
| 10 | Hexagon screw | 940094 | 1 | |
| 11 | Gasket | 469486 | 1 | |
| 12 | Hexagon screw | 942529 | 2 | |
| 13 | Spring washer | 942336 | 2 | |
| 14 | Hexagon screw | 940115 | 2 | |
| 15 | Spring washer | 942336 | 2 | |
| 16 | O-ring | 949659 | 1 | |
| 17 | Oil pipe | 846992 | 1 | See group 2B |
| 18 | Hexagon screw | 940135 | 2 | |
| 19 | Spring washer | 941907 | 2 | |
| 20 | Hexagon nut | 955782 | 2 | |
| 21 | O-ring | 960168 | 2 | |
| 22 | Nipple | 466623 | 2 | |
| 23 | Oil filter | 466634 | 2 | |
| 24 | Hexagon screw | 955525 | 2 | |
| 25 | Spring washer | 941907 | 2 | |
| 26 | Plug | 478176 | 1 | |
| 27 | Compression spring | 471775 | 1 | |
| 28 | Gasket | 957185 | 1 | |
| 29 | Valve cone | 471085 | 1 |
| Item | Part Name | Part No. |
| 21 | O-ring 960168 | 960168 |
| Details | |
| Engine model | TAD120AHC TD120AHC TD120AHC, TAD120AHC TD121CRC |
| Application | Oil Cooler with Installation Components Oil Filter and Installation Components Oil Filter with Installation Components |
| Specification | |
| Descriptions | See group 2A See group 2B |
