O-ring 976014

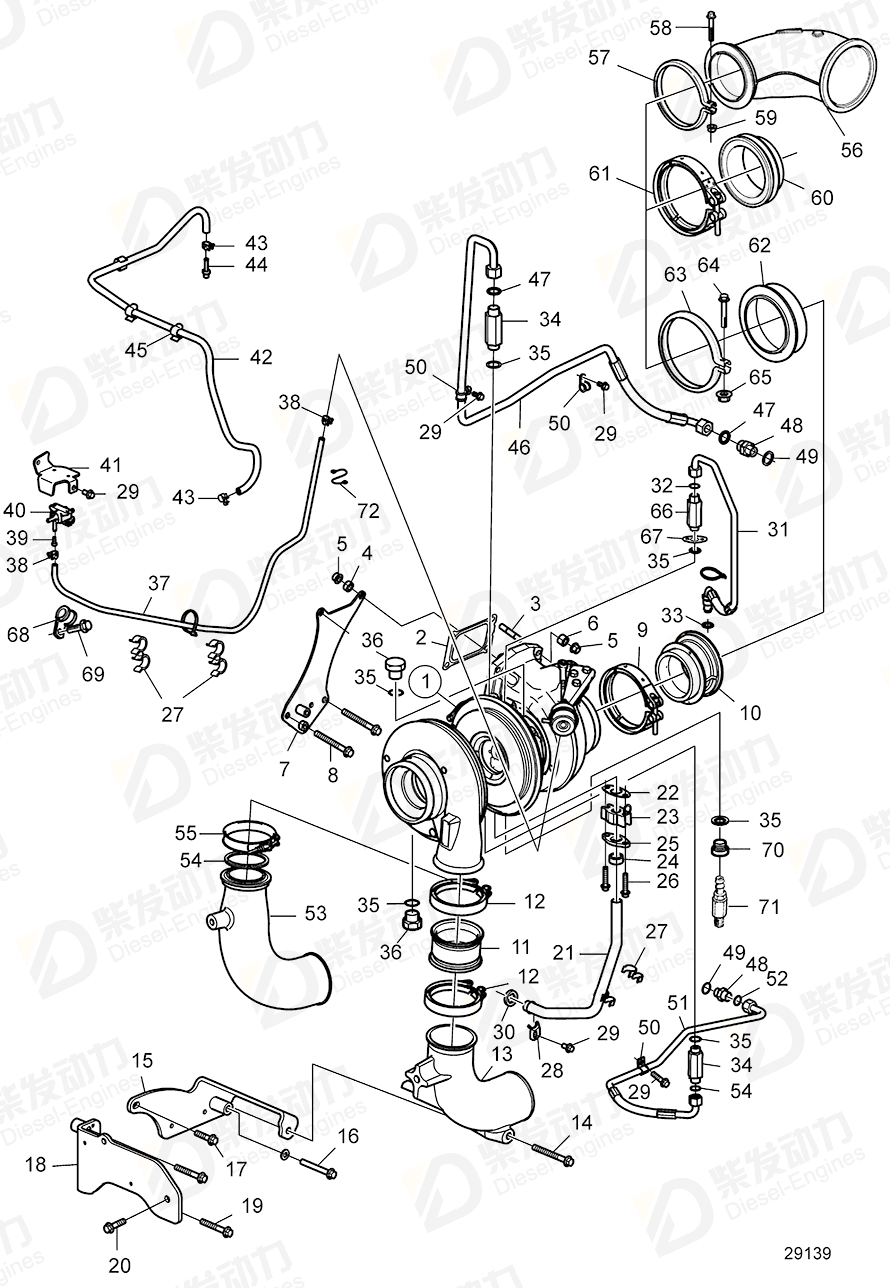

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger, exch | 3801669 | 1 | |
| 1 | Turbocharger | 22283878 | 1 | |
| 2 | Gasket | 22707542 | 1 | |
| 3 | Stud | 21345127 | 4 | |
| 4 | Spacer sleeve | 60112076 | 2 | |
| 5 | Flange nut | 994628 | 4 | |
| 6 | Spacer sleeve | 60112113 | 2 | |
| 7 | Support | 22632685 | 1 | |
| 8 | Flange screw | 994386 | 3 | |
| 9 | V-clamp | 22576146 | 1 | |
| 10 | Adapter | 22643434 | 1 | |
| 11 | Charge air hose | 15185107 | 1 | |
| 12 | V-clamp | 20592783 | 2 | |
| 13 | Connecting pipe | 22614803 | 1 | Replaced by 22850363 |
| 13 | Connecting pipe | 22850363 | 1 | |
| 14 | Flange screw | 984763 | 1 | |
| 15 | Bracket | 22608053 | 1 | |
| 16 | Flange screw | 984757 | 1 | |
| 17 | Flange screw | 969445 | 1 | |
| 18 | Bracket | 22588011 | 1 | |
| 19 | Flange screw | 975103 | 2 | |
| 20 | Flange screw | 984755 | 1 | |
| 21 | Return pipe | 22485011 | 1 | Replaced by 22929323 |
| 21 | Return pipe | 22929323 | 1 | |
| 22 | Gasket | 470993 | 1 | (420423) |
| 23 | Connector | 8148729 | 1 | |
| 24 | Rubber moulding | 469601 | 1 | |
| 25 | Pipe flange | 469543 | 1 | |
| 26 | Flange screw | 984738 | 2 | |
| 27 | Retainer | 3121512 | 4 | |
| 28 | Lock brace | 20844430 | 1 | |
| 29 | Flange screw | 984733 | 5 | |
| 30 | Sealing ring | 21940615 | 1 | |
| 31 | Oil feed hose | 22486217 | 1 | SN-2016104051 |
| 31 | Oil feed hose | 22846423 | 1 | SN2016104052- |
| 32 | O-ring | 976014 | 1 | |
| 33 | O-ring | 976971 | 1 | |
| 34 | Nipple | 22815371 | 2 | |
| 35 | Gasket | 11998 | 6 | |
| 36 | Plug | 960632 | 2 | |
| 37 | Hose | 22496078 | 1 | |
| 38 | Hose clamp | 976573 | 2 | |
| 39 | Hex. socket screw | 959187 | 2 | |
| 40 | Solenoid valve | 3819161 | 1 | |
| 41 | Bracket | 21311241 | 1 | |
| 42 | Hose | 11158489 | 1 | |
| 43 | Hose clamp | 975269 | 2 | |
| 44 | Hose nipple | 945713 | 2 | |
| 45 | Retainer | 984937 | 3 | |
| 46 | Cooling hose | 22769764 | 1 | |
| 47 | O-ring | 976971 | 2 | |
| 48 | Nipple | 963948 | 2 | For DH10A and THD102KD. |
| 49 | Gasket | 11996 | 2 | |
| 50 | Clamp | 190635 | 3 | |
| 51 | Hose | 22485876 | 1 | |
| 52 | O-ring | 976971 | 2 | |
| 53 | Connecting pipe | 22322833 | 1 | For uppgrade to new solution,see section 41198,use pos 3-5,18-29 and 45 |
| 54 | Sealing ring | 1675066 | 1 | |
| 55 | V-clamp | 3886542 | 1 | |
| 56 | Exhaust pipe | 21308859 | 1 | 5'' |
| 57 | V-clamp | 467310 | 1 | |
| 58 | Flange screw | 994441 | 1 | |
| 59 | Flange lock nut | 990950 | 1 | |
| 60 | Flange | 22706523 | 1 | |
| 61 | V-clamp | 22576146 | 1 | |
| 62 | Flange | 3887783 | 1 | |
| 63 | V-clamp | 467310 | 1 | |
| 64 | Flange screw | 994441 | 1 | |
| 65 | Flange lock nut | 990950 | 1 | |
| 66 | Nipple | 22815370 | 1 | |
| 67 | Gasket | 22206133 | 1 | |
| 68 | Clamp | 949746 | 1 | |
| 69 | Flange screw | 984751 | 1 | |
| 70 | Plug | 16381 | 1 | |
| 71 | Shut-off cock | 966871 | 1 | |
| 72 | Retainer | 78466868 | 1 |
| Item | Part Name | Part No. |
| 32 | O-ring 976014 | 976014 |
| Details | |
| Engine model | TAD1643VE-B TWD1644GE, TWD1645GE TWD1672GE, TWD1673GE |
| Application | Turbocharger |
