Oil bilge pump 805999

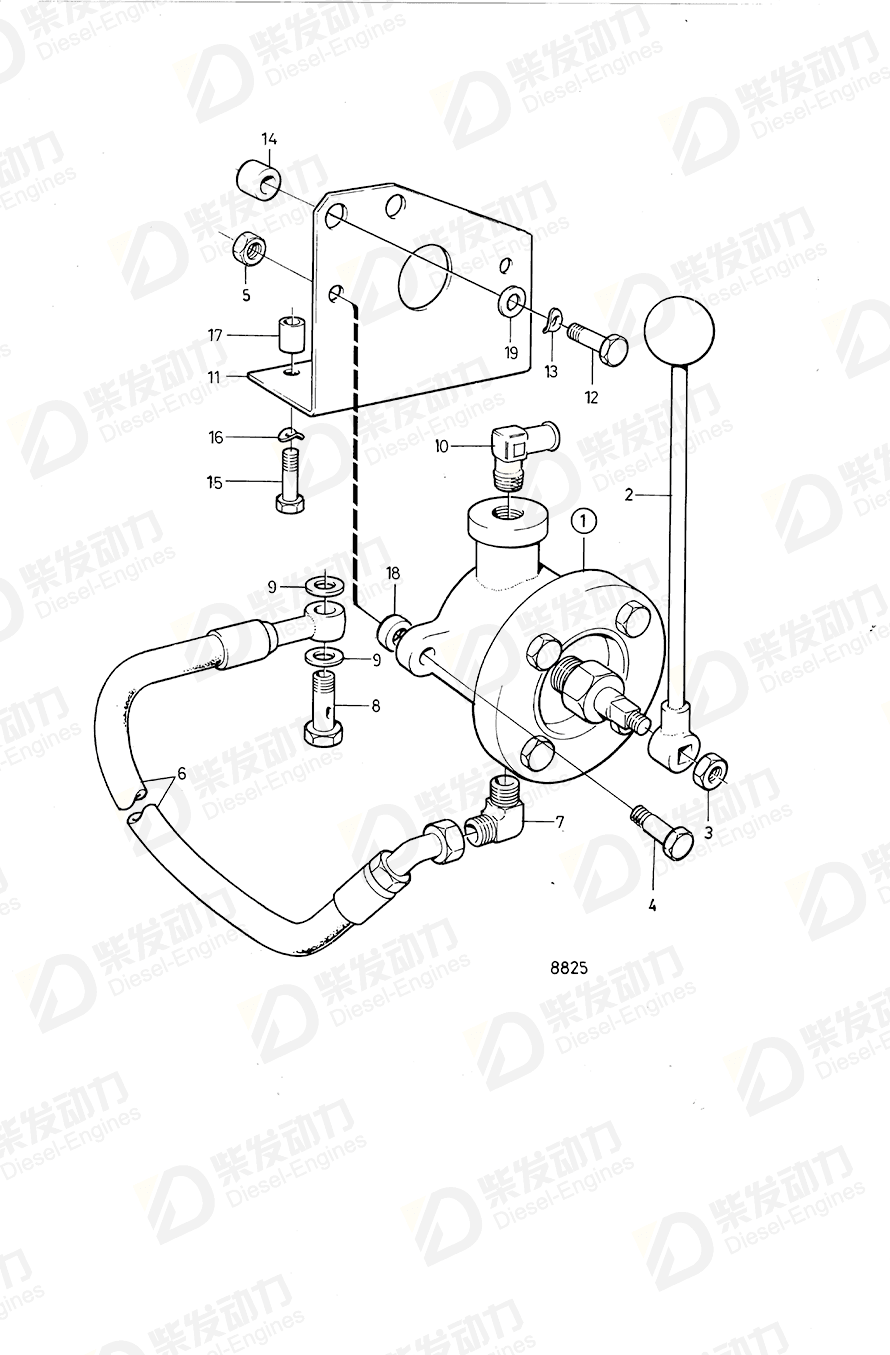

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil bilge pump | 805999 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 1 | Oil bilge pump | 3808946 | 1 | |
| 2 | Handle | 821713 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 3 | Hexagon nut | 955827 | 1 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 4 | Flange screw | 965185 | 2 | |
| 5 | Flange nut | 971095 | 2 | Alt |
| 6 | Rubber hose | 849888 | 1 | |
| 7 | Elbow nipple | 957111 | 1 | Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 8 | Hollow screw | 966821 | 1 | |
| 9 | Gasket | 18813 | 2 | |
| 10 | Elbow nipple | 467716 | 1 | |
| 11 | Bracket | 3825861 | 1 | (842332) |
| 12 | Hexagon screw | 955569 | 1 | Classed engine,spec.867117., Replaces earlier production spacer pin FIG.15., L=83mm |
| 13 | Spring washer | 940280 | 1 | |
| 14 | Spacer sleeve | 863971 | 1 | |
| 15 | Hexagon screw | 940159 | 2 | |
| 16 | Spring washer | 941907 | 2 | |
| 17 | Spacer sleeve | 843075 | 2 | |
| 18 | Spacer sleeve | 1576517 | 2 | |
| 19 | Washer | 955898 | 1 | Late type |
| Item | Part Name | Part No. |
| 1 | Oil bilge pump 805999 | 805999 |
| Details | |
| Engine model | D100A D100B D100BHC D100BHC, TD100AHC D100BRC, TD100ARC D120A D42A D70B D70CHC, D70CRC, TD70CHC, TD70CRC TAD1030GE, TAD1031GE, TAD1032GE, TAD1031G TAD120AHC TAD120CHC TAD121CHC TAD1630P, TWD1630P TD100A TD100AHC TD100CHC TD100CRC TD100G-87, TD1030ME, TWD1030ME TD100G-87, TD1030VE, TAD1030V, TWD1031VE, TAD1030VE TD120A TD120AHC TD120AHC, TAD120AHC TD120ARC, TAD120BHC TD120BHC TD120BRC TD120C TD120G, TD120GG TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP TD120HPP TD121CHC TD121CRC TD121G-87, TD121GG-87, TD121GGP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD60B TD60D TD60D-83, TID60DG TD610G, TWD610G TD610M, TD630ME, TWD630ME, TD730ME, TWD730ME, TWD731ME TD61A, TD61AW, TD61ACE, TD61AG, TD61AGP, TD61AP, TD61APB, TID61AG, TD71A, TD71AW, TD71ACE, TD71AG, TD71AGP, TD71AP, TD71APB, TID71A, TID71AG, TID71AGP, TID71AP, TID71APB, TID61AGP TD70B TD70G TD70G-83 TD710G, TWD710G TID120FG TID120HPP TID121FG TID70G TWD610P TWD710P, TAD730P |
| Application | Oil Bilge Pump and Installation Components OIL BILGE PUMP WITH INSTALLATION COMPONENTS OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: A OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: B OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: C OIL BILGE PUMP WITH INSTALLATION COMPONENTS EARLIER PROD: D OIL BILGE PUMP WITH INSTALLATION COMPONENTS LATER PROD Oil Bilge Pump with Installation Components: A Oil Bilge Pump with Installation Components: B Oil Bilge Pump with Installation Parts, Earlier Prod: A Oil Bilge Pump with Installation Parts, Earlier Prod: B Oil Bilge Pump, Manual Oil Drain Pump and Installation Parts Oil Drain Pump and Installation Parts, Frame Mounted: A Oil Drain Pump and Installation Parts, Frame Mounted: B Oil Sump Pump and Inst. Comps. Later Production Oil Sump Pump and Install. Comps. Earlier Production Oil Sump Pump and Install. Comps. Later Production OIL SUMP PUMP AND INSTALLATION COMPONENTS OIL SUMP PUMP AND INSTALLATION COMPONENTS, ALT Oil Sump Pump and Installation Components: A Oil Sump Pump and Installation Components: B Sump Pump and Installation Components: A Sump Pump and Installation Components: B Sump Pump and Installation Components: C |
| Specification | |
| Descriptions | Alt AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. For TD70G-83 spec.867823, std.other spec. alt. FOR TD70G-83 SPEC.867823,STD.OTHERSPEC.ALT. Repl by 3808946 Replaced by 3808946 |
