Oil dipstick 21749331

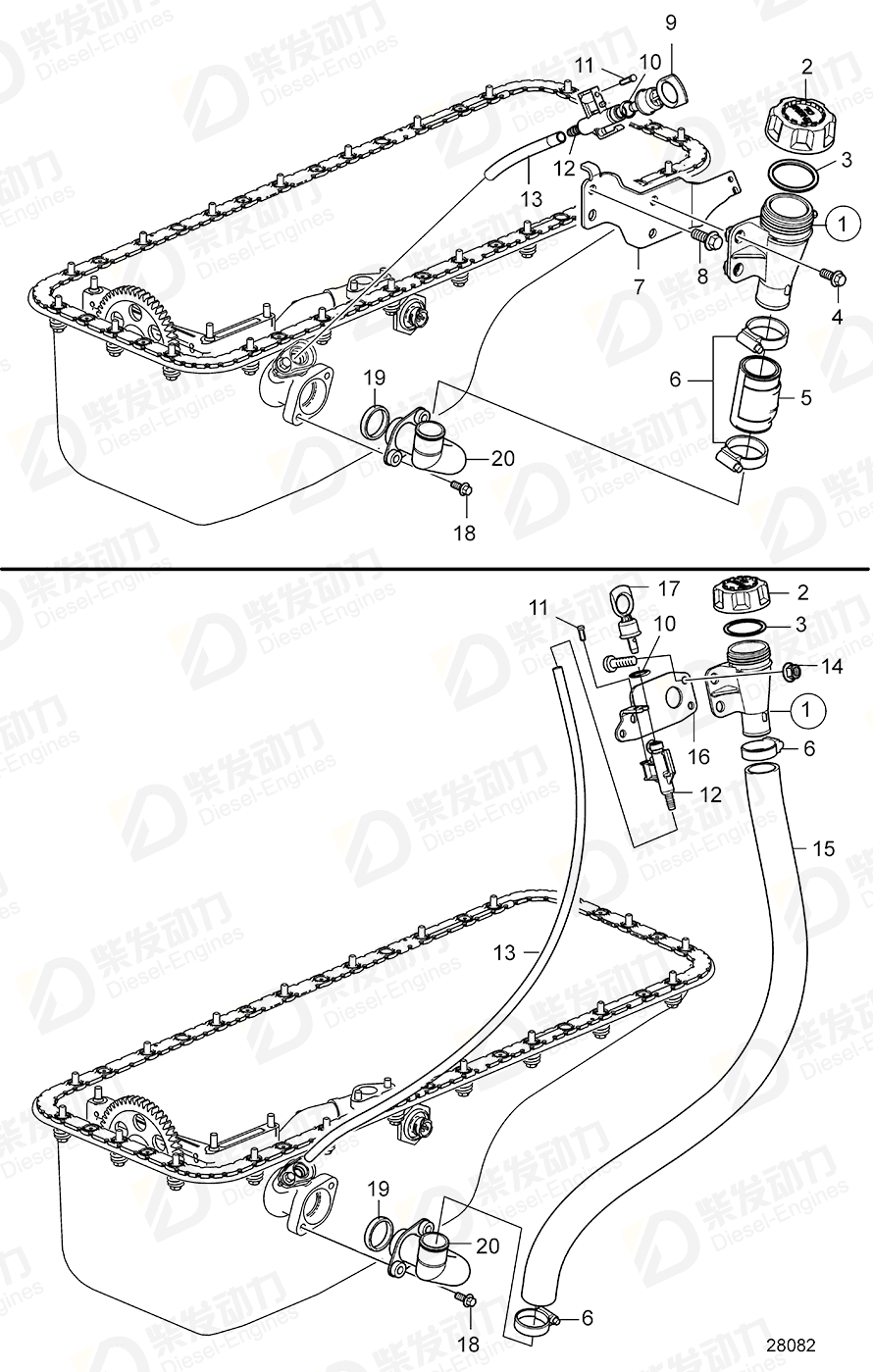

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filler pipe | 20808091 | 1 | |
| 2 | Oil filler cap | 20807510 | 1 | |
| 3 | Rubber washer | 20365079 | 1 | |
| 4 | Flange screw | 984734 | 2 | |
| 5 | Hose | 22208697 | 1 | |
| 6 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| 7 | Bracket | 22099416 | 1 | Replaced by 23039741 |
| 7 | Bracket | 23039741 | 1 | |
| 8 | Flange screw | 984753 | 2 | |
| 9 | Oil dipstick | 21749331 | 1 | |
| 10 | O-ring | 944124 | 1 | |
| 11 | Six point socket scr | 975371 | 1 | |
| 12 | Anchorage | 11129411 | 1 | |
| 13 | Tube | 980833 | 1 | L=2500mm |
| 14 | Flange nut | 990940 | 2 | |
| 15 | Hose | 22208698 | 1 | |
| 16 | Bracket | 22164738 | 1 | |
| 17 | Oil dipstick | 21749334 | 1 | |
| 18 | Flange screw | 994446 | 2 | |
| 19 | Sealing ring | 21780376 | 1 | |
| 20 | Pipe | 22203592 | 1 |
| Item | Part Name | Part No. |
| 9 | Oil dipstick 21749331 | 21749331 |
| Details | |
| Engine model | TAD840VE, TAD841VE, TAD842VE, TAD843VE, TAD851VE, TAD852VE, TAD853VE, TAD850-52VE, TAD840-43VE TAD870VE, TAD871VE, TAD872VE, TAD873VE |
| Application | Oil Filling and Oil Dipstick Oil Filling and Oil Dipstick, Turned Oil Pan 180° |
