Oil feed pipe 849256

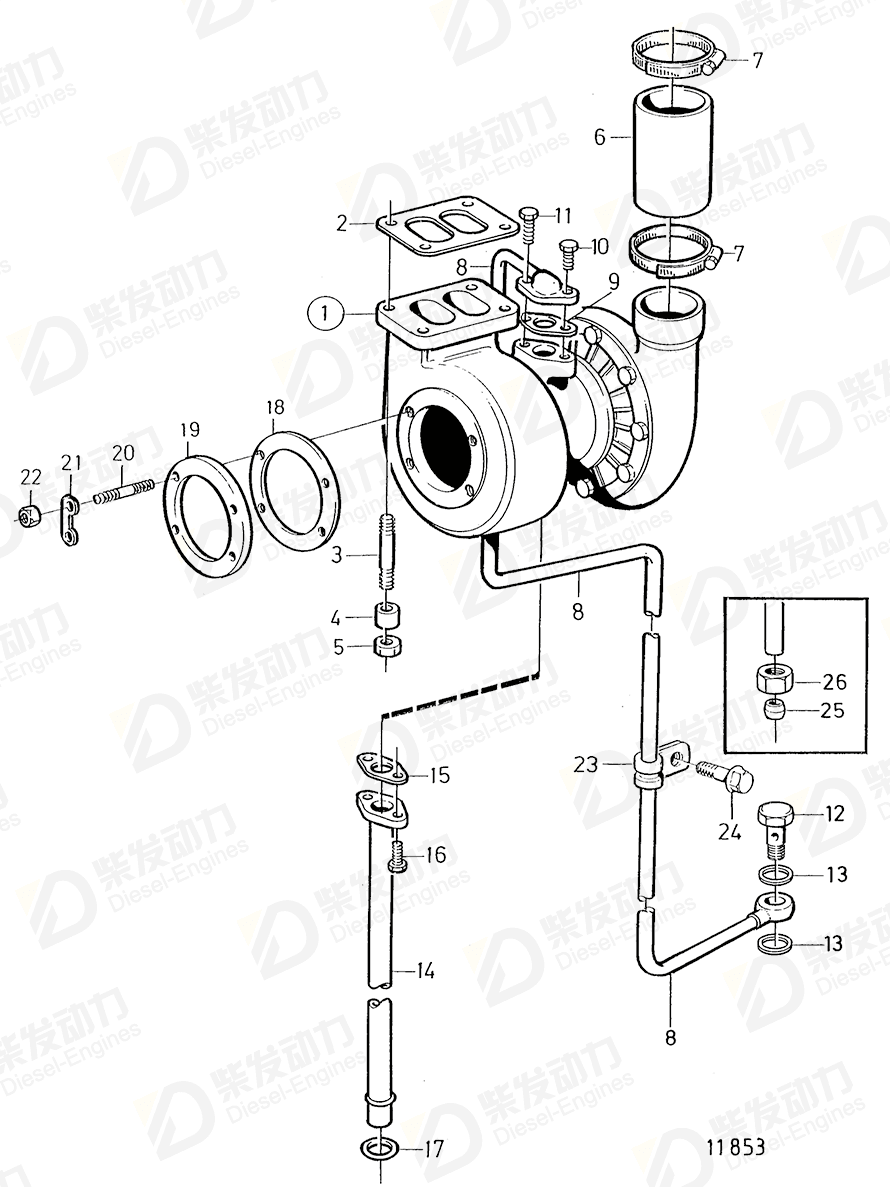

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 847857 | 1 | Repl by 848556 |
| 1 | Turbocharger | 848556 | 1 | SN-XXXXXXXXXX/60026 |
| 1 | Turbocharger | 3802049 | 1 | SN-XXXXXXXXXX/60026 |
| 2 | Gasket | 420618 | 1 | (466392) |
| 3 | Stud | 977298 | 4 | |
| 4 | Spacer sleeve | 470467 | 4 | |
| 5 | Flange lock nut | 471622 | 4 | |
| 6 | Hose | 466327 | 1 | |
| 7 | Hose clamp | 943479 | 2 | |
| 8 | Oil feed pipe | 849256 | 1 | Repl by 1pce oil feed pipe 866138, 1pce hollow screw 941686, 2pcs gasket 11996, 1pce clamp 946834, 1pce screw 947107 and 1pce plug 968145., SN-2061078664 |
| 8 | Oil pressure pipe | 866138 | 1 | SN2061078665- |
| 9 | Plane gasket | 420641 | 1 | |
| 10 | Hexagon screw | 955295 | 1 | |
| 11 | Hexagon screw | 955297 | 1 | |
| 12 | Hollow screw | 941686 | 1 | |
| 13 | Gasket | 11996 | 2 | |
| 14 | Oil return pipe | 849254 | 1 | |
| 15 | Plane gasket | 420643 | 1 | |
| 16 | Hexagon screw | 955297 | 2 | |
| 17 | Rubber moulding | 471626 | 1 | |
| 18 | Gasket | 424628 | 1 | Included in gasket kit. |
| 19 | Flange | 844935 | 1 | |
| 20 | Stud | 924064 | 6 | |
| 21 | Tab washer | 947071 | 3 | TD60B PP |
| 22 | Hexagon nut | 946330 | 6 | |
| 23 | Clamp | 946834 | 1 | |
| 24 | Flange screw | 947107 | 1 | |
| 25 | Ferrule | 956970 | 1 | |
| 26 | Fitting nut | 956984 | 1 |
| Item | Part Name | Part No. |
| 8 | Oil feed pipe 849256 | 849256 |
| Details | |
| Engine model | TD610M TD61A |
| Application | Turbocharger and Installation Components,low Mounted Turbocharger, Low Mounted: A |
| Specification | |
| Descriptions | *replaced by 1pc oil feed pipe 866138, 1pc hollow screw 941686, 2pcs gasket 11996, 1pc clamp 949746, 1pc screw 947107 and 1pc plug 968145., SN-2061078664 Repl by 1pce oil feed pipe 866138, 1pce hollow screw 941686, 2pcs gasket 11996, 1pce clamp 946834, 1pce screw 947107 and 1pce plug 968145., SN-2061078664 |
