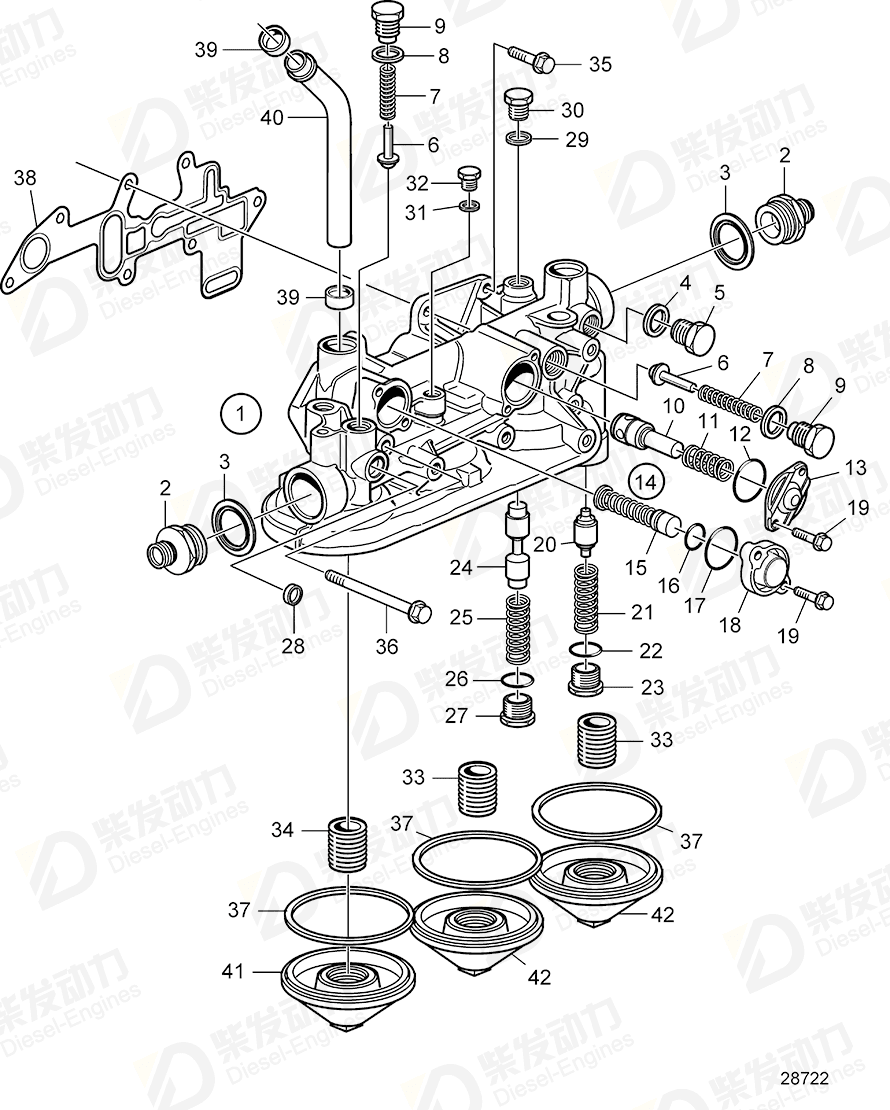

Oil filter housing 11127830
| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 11127830 | 1 | |
| 2 | Adapter | 11127985 | 2 | |
| 3 | Gasket | 982510 | 2 | |
| 4 | Gasket | 947624 | 1 | |
| 5 | Plug | 960632 | 1 | |
| 6 | Valve cone | 471085 | 2 | |
| 7 | Compression spring | 466653 | 1 | |
| 8 | Gasket | 947627 | 2 | |
| 9 | Plug | 471598 | 2 | |
| 10 | Reduction valve | 471706 | 1 | Marked blue |
| 11 | Spring | 469332 | 1 | For 469867 |
| 12 | Sealing ring | 469846 | 1 | |
| 13 | Cover | 471648 | 1 | |
| 14 | Relief valve | 3169687 | 1 | |
| 15 | Retaining ring | 955964 | 1 | |
| 16 | O-ring | 976039 | 1 | (980936) |
| 17 | O-ring | 949659 | 1 | |
| 18 | Cover | 3184806 | 1 | |
| 19 | Flange screw | 984727 | 4 | |
| 20 | Valve cone | 20440779 | 1 | |
| 22 | O-ring | 949658 | 1 | (925061) early type |
| 24 | Piston | 20440781 | 1 | |
| 26 | O-ring | 949658 | 1 | (925061) early type |
| 27 | Plug | 20726931 | 1 | |
| 28 | Cap plug | 946778 | 1 | |
| 29 | Gasket | 947622 | 1 | |
| 30 | Plug | 960631 | 1 | |
| 31 | Gasket | 11994 | 1 | |
| 32 | Plug | 960629 | 1 | |
| 33 | Nipple | 466623 | 2 | |
| 34 | Nipple | 469904 | 1 | |
| 35 | Flange screw | 984734 | 4 | |
| 36 | Flange screw | 969225 | 3 | L=120mm |
| 37 | X-ring | 993235 | 3 | |
| 38 | Gasket | 20480827 | 1 | SN-7009133179 |
| 39 | Rubber moulding | 471626 | 2 | |
| 40 | Pipe | 20734497 | 1 | (3161223) |
| 41 | Cover | 3812510 | 1 | (3828029) |
| 42 | Cover | 3812511 | 2 | (3828030) |
| Item | Part Name | Part No. |
| 1 | Oil filter housing 11127830 | 11127830 |
| Details | |
| Engine model | TAD940GE, TAD941GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD940VE, TAD941VE, TAD942VE, TAD943VE, TAD950VE, TAD951VE, TAD952VE |
| Application | Oil Filter Housing and Oil Filter, Alternative Mounting Oil Filter Housing, Components. Alternative Mounting. |
| Specification | |
| Descriptions | SN-7009133179 |
