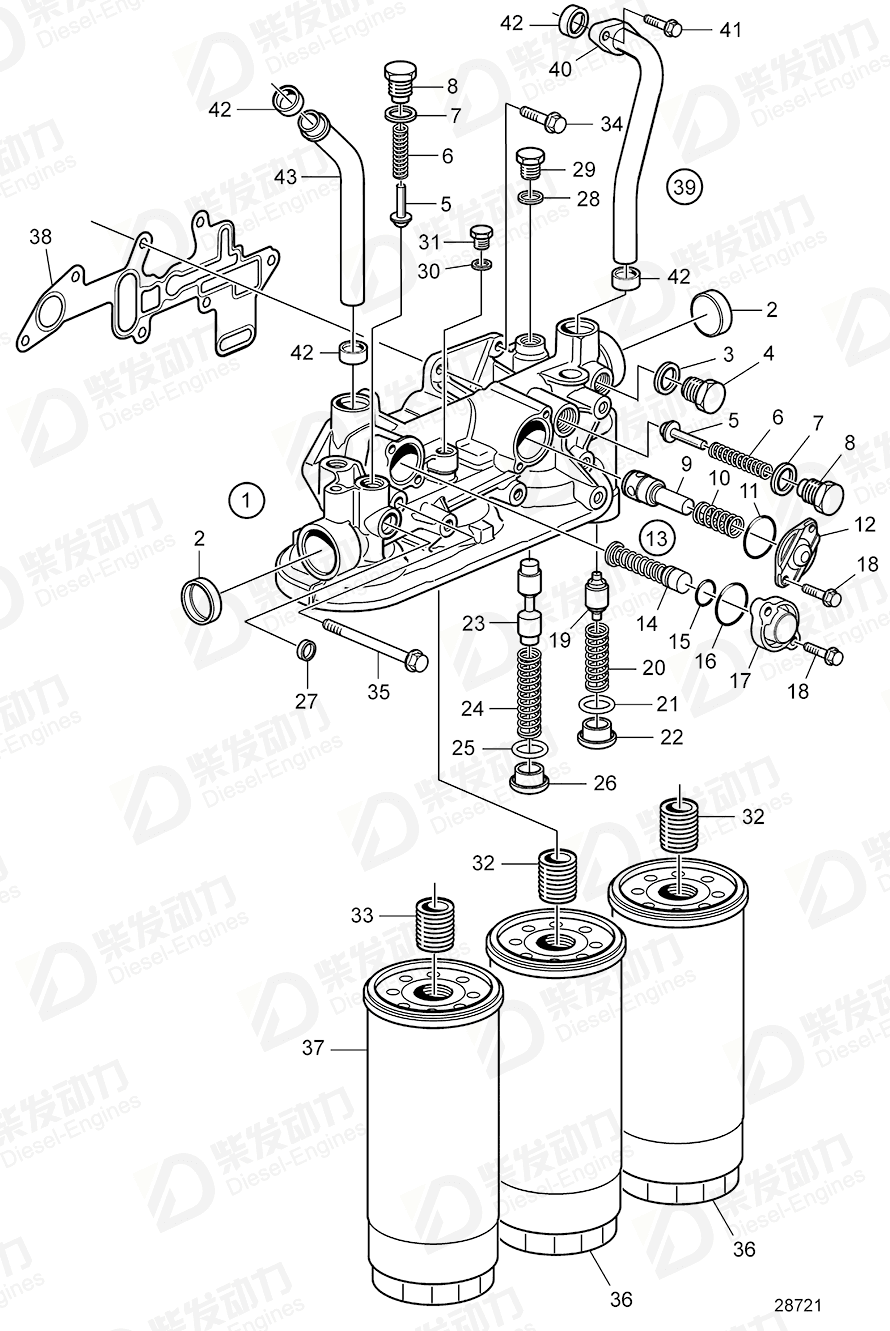

Oil filter housing 21181530
| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 21181530 | 1 | Replaced by oil filter housing 22090129 and gasket 20882218. |
| 1 | Oil filter housing | 22090129 | 1 | |
| 2 | Cap plug | 8131707 | 2 | |
| 3 | Gasket | 947624 | 1 | |
| 4 | Plug | 960632 | 1 | |
| 5 | Valve cone | 471085 | 2 | |
| 6 | Compression spring | 466653 | 2 | |
| 7 | Gasket | 947627 | 2 | |
| 8 | Plug | 471598 | 2 | |
| 9 | Reduction valve | 21068158 | 1 | |
| 10 | Spring | 469332 | 1 | For 469867 |
| 11 | Sealing ring | 469846 | 1 | |
| 12 | Cover | 471648 | 1 | |
| 13 | Relief valve | 3169687 | 1 | |
| 14 | Retaining ring | 955964 | 1 | |
| 15 | O-ring | 976039 | 1 | (980936) |
| 16 | O-ring | 949659 | 1 | |
| 17 | Cover | 3184806 | 1 | |
| 18 | Flange screw | 984727 | 4 | |
| 19 | Valve cone | 20440779 | 1 | |
| 20 | Spring | 20464676 | 1 | |
| 21 | Gasket | 947629 | 1 | |
| 23 | Piston | 20440781 | 1 | |
| 24 | Spring | 20464676 | 1 | |
| 25 | Gasket | 947622 | 1 | |
| 27 | Cap plug | 946778 | 1 | |
| 28 | Gasket | 947622 | 1 | |
| 29 | Plug | 960631 | 1 | |
| 30 | Gasket | 11994 | 1 | |
| 31 | Plug | 960629 | 1 | |
| 32 | Nipple | 466623 | 2 | |
| 33 | Nipple | 469904 | 1 | |
| 34 | Flange screw | 984734 | 4 | |
| 35 | Flange screw | 984746 | 3 | |
| 36 | Oil filter | 21707133 | 2 | |
| 37 | Oil filter | 21707132 | 1 | Bypass filter |
| 38 | Gasket | 20480827 | 1 | SN-7009133179 |
| 38 | Gasket | 20882218 | 1 | |
| 39 | Pipe | 3161224 | 1 | |
| 40 | Pipe flange | 469543 | 1 | |
| 41 | Flange screw | 984740 | 2 | |
| 42 | Rubber moulding | 471626 | 4 | |
| 43 | Pipe | 21474446 | 1 | (3161223) |
| Item | Part Name | Part No. |
| 1 | Oil filter housing 21181530 | 21181530 |
| Details | |
| Engine model | TAD940GE TAD940VE, TAD941VE, TAD942VE, TAD943VE TAD941GE TAD950VE, TAD951VE, TAD952VE |
| Application | Oil Filter Housing and Oil Filter |
| Specification | |
| Descriptions | Replaced by oil filter housing 22090129 and gasket 20882218. |
