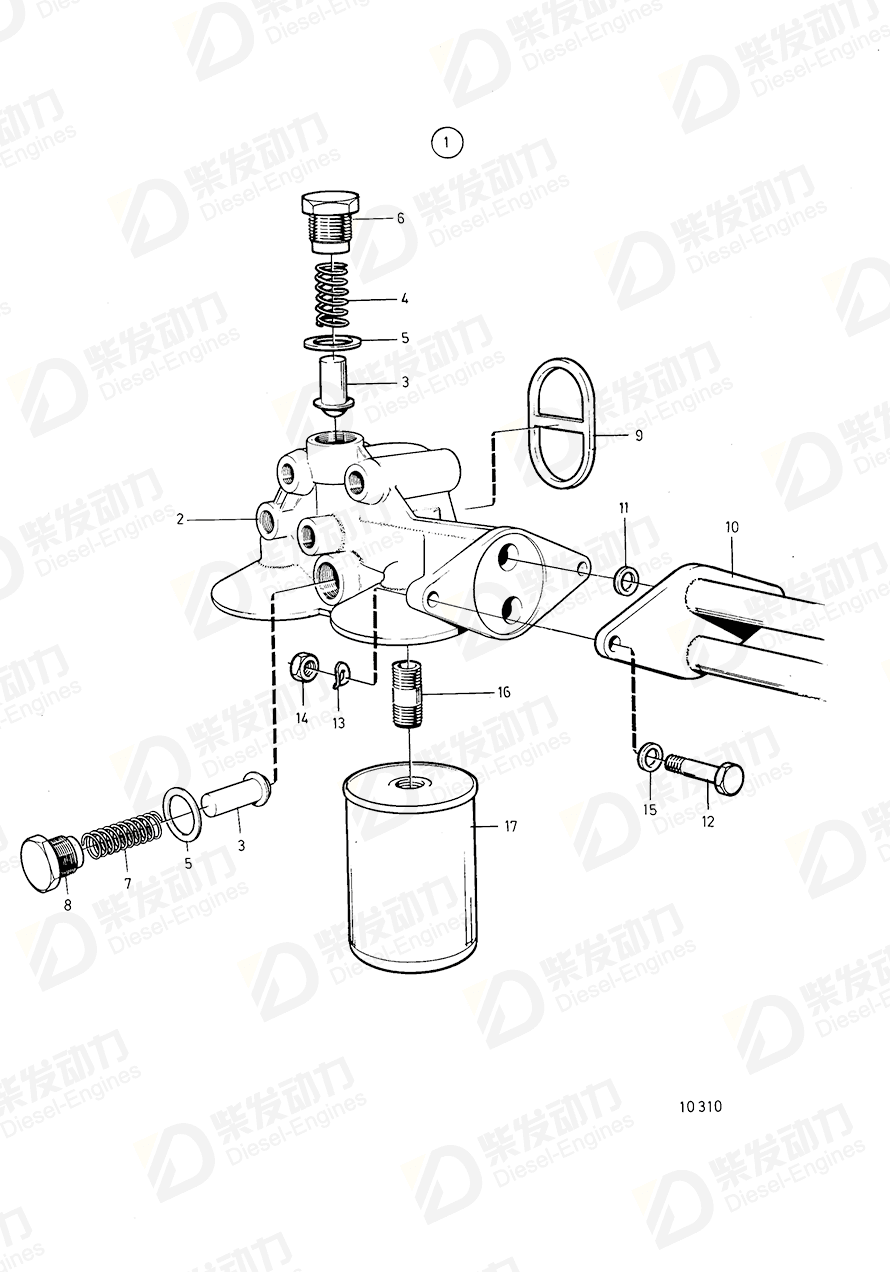

Oil filter housing 422797
| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter housing | 422797 | 1 | |
| 3 | Valve cone | 471085 | 2 | |
| 4 | Compression spring | 466653 | 1 | |
| 5 | Gasket, plug | 18677 | 2 | |
| 6 | Plug | 466624 | 1 | |
| 7 | Compression spring | 471775 | 1 | |
| 8 | Plug | 478176 | 1 | |
| 9 | Gasket | 469487 | 1 | |
| 10 | Oil pipe | 849027 | 1 | See group 2B |
| 11 | O-ring | 925059 | 2 | AQ115A compression 8,4:1. |
| 12 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 13 | Spring washer | 942336 | 2 | |
| 14 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 15 | Washer | 940097 | 2 | |
| 16 | Nipple | 466623 | 2 | |
| 17 | Oil filter | 466634 | 2 |
| Item | Part Name | Part No. |
| 1 | Oil filter housing 422797 | 422797 |
| Details | |
| Engine model | TD100CRC TD100G-87 |
| Application | Housing-oil Filter Oil Cooler and Oil Filter Oil Filter and Installation Components Oil Filter Housing: 422797 |
| Specification | |
| Descriptions | (1545507) |
