Oil filter housing 466339

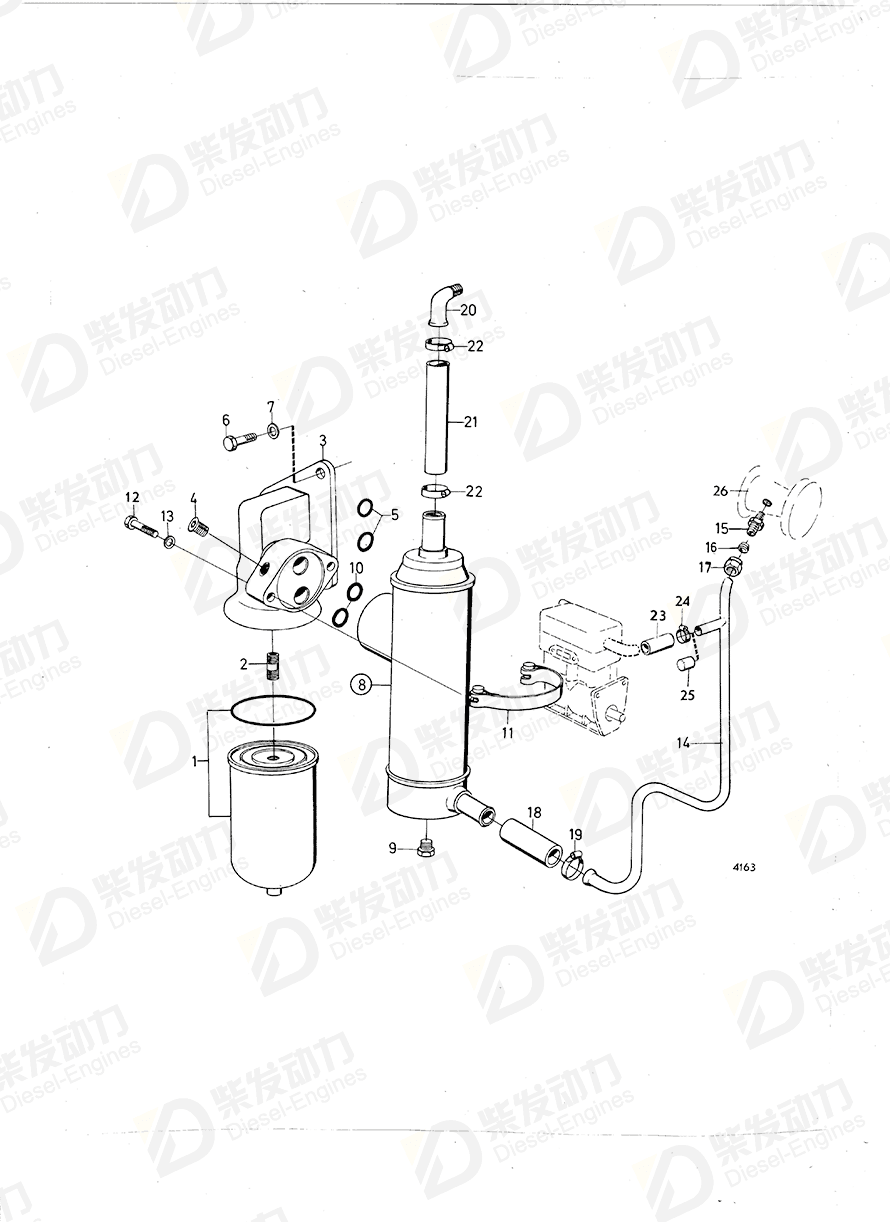

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil filter | 4785974 | 1 | |
| 2 | Nipple | 423067 | 1 | |
| 3 | Oil filter housing | 466339 | 1 | D70B spec. 867276, 867277, 867278, 867279, 867280, 867283, 867300, 867301. TD70B spec. 867281, 867282., See group 3 |
| 4 | Plug | 952075 | 1 | |
| 5 | O-ring | 947061 | 2 | |
| 6 | Hexagon screw | 940115 | 3 | |
| 7 | Spring washer | 942336 | 3 | |
| 8 | Oil cooler | 420365 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 9 | Plug | 180759 | 1 | |
| 10 | Sealing ring | 469483 | 2 | (422581) |
| 11 | Tensioning band | 422605 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603- |
| 12 | Hexagon screw | 955527 | 1 | |
| 12 | Hexagon screw | 955530 | 1 | |
| 13 | Washer | 955894 | 2 | |
| 14 | Tube | 842154 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603- |
| 15 | Nipple | 943192 | 1 | |
| 16 | Ferrule | 956972 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 17 | Fitting nut | 956986 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603- |
| 18 | Rubber hose | 943369 | 1 | L=165 mm |
| 19 | Hose clamp | 994559 | 2 | |
| 20 | Elbow nipple | 942590 | 1 | |
| 21 | Rubber hose | 943369 | 1 | L=165 mm |
| 22 | Hose clamp | 994559 | 2 | |
| 23 | Retaining ring | 941552 | 1 | TH=2.7mm alt |
| 24 | Hose clamp | 945754 | 2 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 25 | Cap | 842235 | 1 |
| Item | Part Name | Part No. |
| 3 | Oil filter housing 466339 | 466339 |
| Details | |
| Engine model | D70B TD60A TD60B TD60D TD60D-83 TD60D-83, TID60D TD60D-83, TID60D, TID60DG TD70B TID60D TID60DG |
| Application | Lubricating System, Angle of Inclination 10° Lubricating System, Angle of Inclination 40° LUBRICATING SYSTEM, ANGLE OF INCLINATION 40°: A LUBRICATING SYSTEM, ANGLE OF INCLINATION 40°: B LUBRICATING SYSTEM, STANDARD MODEL Lubricating System, Standard Model: A Lubricating System, Standard Model: B Lubricating System: A OIL COOLER SIDE MOUNTED AND INSTALLATION COMPONENTS: A OIL COOLER SIDE MOUNTED AND INSTALLATION COMPONENTS: B OIL COOLER SIDE MOUNTED AND INSTALLATION COMPONENTS: C OIL COOLER-SIDE MOUNTED AND INSTALLATION COMPONENTS Oil Cooler-side Mounted and Installation Components: A Oil Cooler-side Mounted and Installation Components: B |
| Specification | |
| Descriptions | D70B spec. 867276, 867277, 867278, 867279, 867280, 867283, 867300, 867301. TD70B spec. 867281, 867282., See group 3 D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603- See group 2A See group 2B Spec. 867221., See group 2B |
