Oil line 20500644

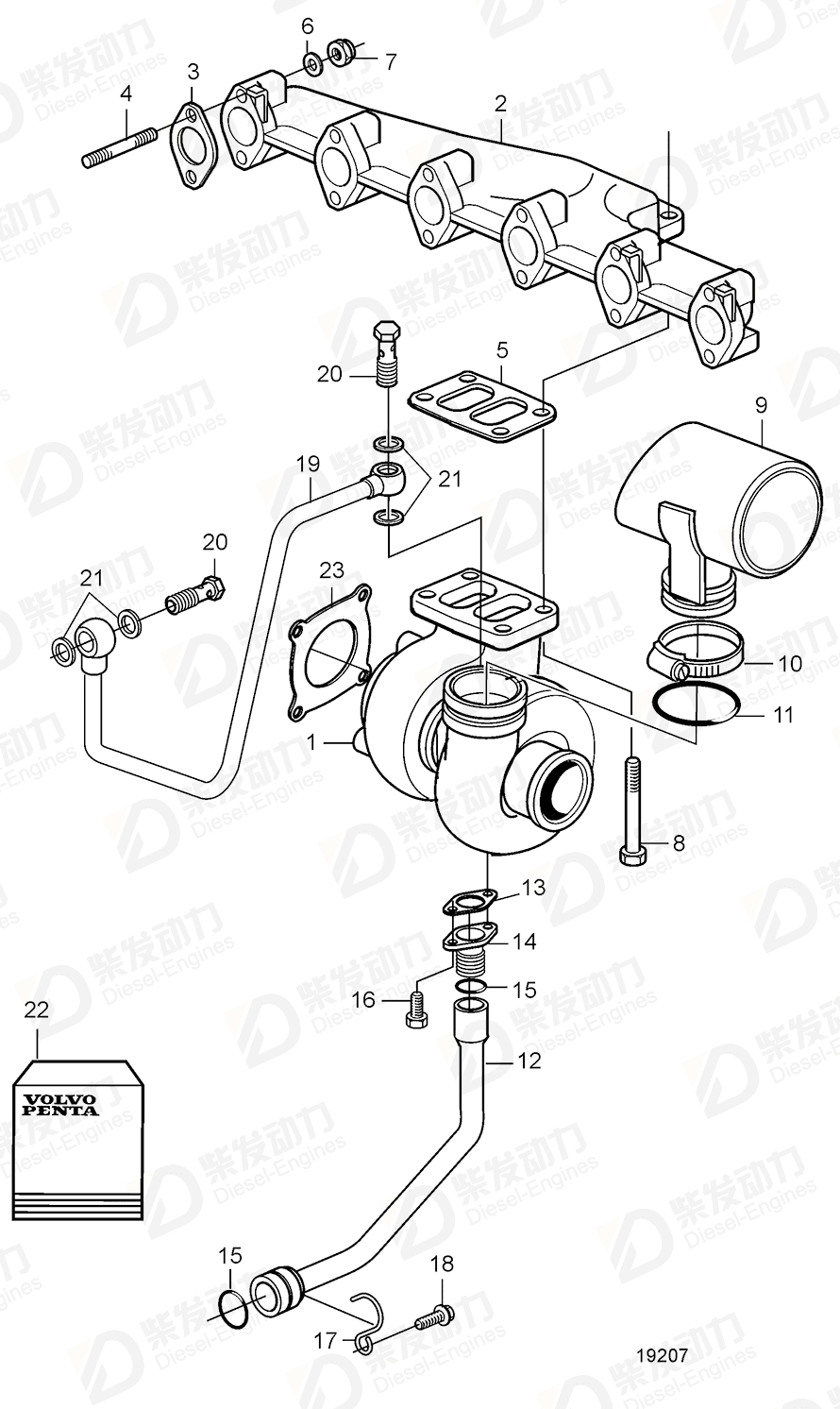

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802178 | 1 | |
| 1 | Turbocharger | 20500295 | 1 | |
| 2 | Exhaust pipe | 20451006 | 1 | |
| 3 | Gasket | 20557208 | 6 | |
| 4 | Stud | 20405587 | 12 | |
| 5 | Gasket | 20405970 | 1 | |
| 6 | Washer | 20799731 | 12 | |
| 7 | Nut retainer | 20505959 | 12 | (20405593) |
| 8 | Flange screw | 20405874 | 4 | |
| 9 | Manifold | 20451015 | 1 | |
| 10 | Hose clamp | 20412420 | 2 | |
| 11 | O-ring | 20405535 | 1 | |
| 12 | Return line | 20500640 | 1 | |
| 13 | Plane gasket | 20405790 | 1 | |
| 14 | Flange | 20405879 | 1 | |
| 15 | O-ring | 20405822 | 2 | |
| 16 | Flange screw | 984734 | 2 | |
| 17 | Retainer | 20405789 | 1 | |
| 18 | Flange screw | 20405792 | 1 | |
| 19 | Oil line | 20500644 | 1 | |
| 20 | Hollow screw | 25167 | 2 | |
| 21 | Gasket | 969011 | 2 | |
| 23 | Gasket | 20792408 | 1 |
| Item | Part Name | Part No. |
| 19 | Oil line 20500644 | 20500644 |
| Details | |
| Engine model | TAD720VE, TAD721VE, TAD722VE TAD722VE |
| Application | Exhaust Manifold and Turbocharger. Low Mounted Turbo. Stage 2, Tier 2 |
