Oil pan, low noise 478261

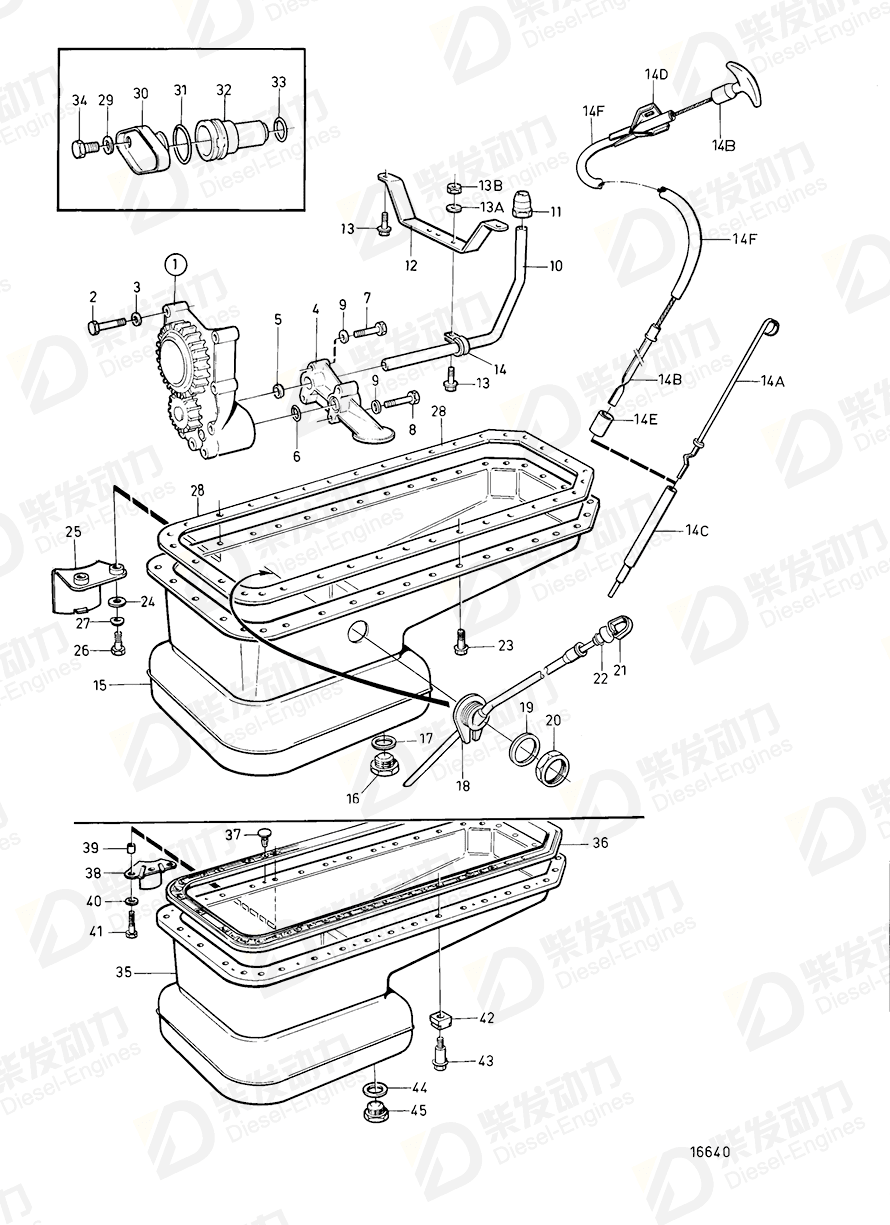

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 478649 | 1 | |
| 2 | Hexagon screw | 955538 | 4 | |
| 3 | Spring washer | 942336 | 4 | |
| 4 | Oil strainer | 479325 | 1 | |
| 5 | Sealing ring | 470263 | 1 | Late type |
| 6 | O-ring | 949659 | 1 | |
| 7 | Hexagon screw | 192546 | 2 | |
| 8 | Hexagon screw | 959795 | 2 | SN2120226440- |
| 9 | Spring washer | 941907 | 4 | |
| 10 | Oil pressure pipe | 470375 | 1 | |
| 11 | Fitting | 466908 | 1 | |
| 12 | Bracket | 470918 | 1 | |
| 13 | Flange screw | 942402 | 3 | |
| 14 | Pipe | 479328 | 1 | Options, extended oil dipstic. |
| 14 | Attaching clamp | 1545432 | 1 | |
| 15 | Sump | 862008 | 1 | |
| 16 | Magnetic plug | 949175 | 1 | |
| 17 | Gasket | 18813 | 1 | |
| 18 | Pipe | 3839163 | 1 | SN2120226440- |
| 19 | Rubber washer | 468947 | 1 | |
| 20 | Hexagon nut | 468948 | 1 | |
| 21 | Dipstick | 3826903 | 1 | SN2120226440- |
| 22 | O-ring, bearing housing | 925054 | 1 | |
| 23 | Flange screw | 942402 | 41 | |
| 24 | Washer | 976944 | 2 | |
| 25 | Bracket | 468653 | 1 | |
| 26 | Hexagon screw | 955525 | 2 | |
| 27 | Spring washer | 941907 | 2 | |
| 28 | Gasket | 478505 | 1 | |
| 29 | Spring washer | 949607 | 2 | |
| 30 | Cover | 471752 | 1 | |
| 31 | O-ring | 949658 | 1 | (925061) early type |
| 32 | Reduction valve | 471707 | 1 | |
| 33 | Sealing ring | 469846 | 1 | |
| 34 | Hexagon screw | 940100 | 2 | |
| 35 | Oil pan, low noise | 478261 | 1 | |
| 36 | Gasket | 479484 | 1 | |
| 37 | Plastic rivet | 943353 | 28 | For low noise sump. |
| 38 | Bracket | 479623 | 1 | |
| 39 | Spacer sleeve | 420822 | 3 | For low noise sump. |
| 40 | Washer | 976944 | 3 | |
| 41 | Hexagon screw | 940161 | 3 | For engine with 40° angle of inclination, L=45mm |
| 42 | Rubber cushion | 420991 | 43 | For low noise sump. |
| 43 | Shoulder screw | 479068 | 40 | For low noise sump. |
| 44 | Gasket | 18813 | 1 | |
| 45 | Magnetic plug | 949175 | 1 | |
| 13A | Spring washer | 941907 | 1 | |
| 13B | Hexagon nut | 955826 | 1 | |
| 14A | Oil dipstick | 944663 | 1 | |
| 14B | Dipstick | 1545331 | 1 | Options, extended oil dipstic |
| 14C | Extension pipe | 412845 | 1 | |
| 14D | Bracket | 478269 | 1 | Options, extended oil dipstic. |
| 14E | Hose | 941995 | 1 | L=4000mm |
| 14F | Pipe | 421523 | 1 | Options, extended oil dipstic |
| Item | Part Name | Part No. |
| 35 | Oil pan, low noise 478261 | 478261 |
| Details | |
| Engine model | TD121G-87, TWD1230VE, TWD1231VE TWD1230ME |
| Application | Lubricating System, Later Production Lubricating System: A |
