Oil pump 471570

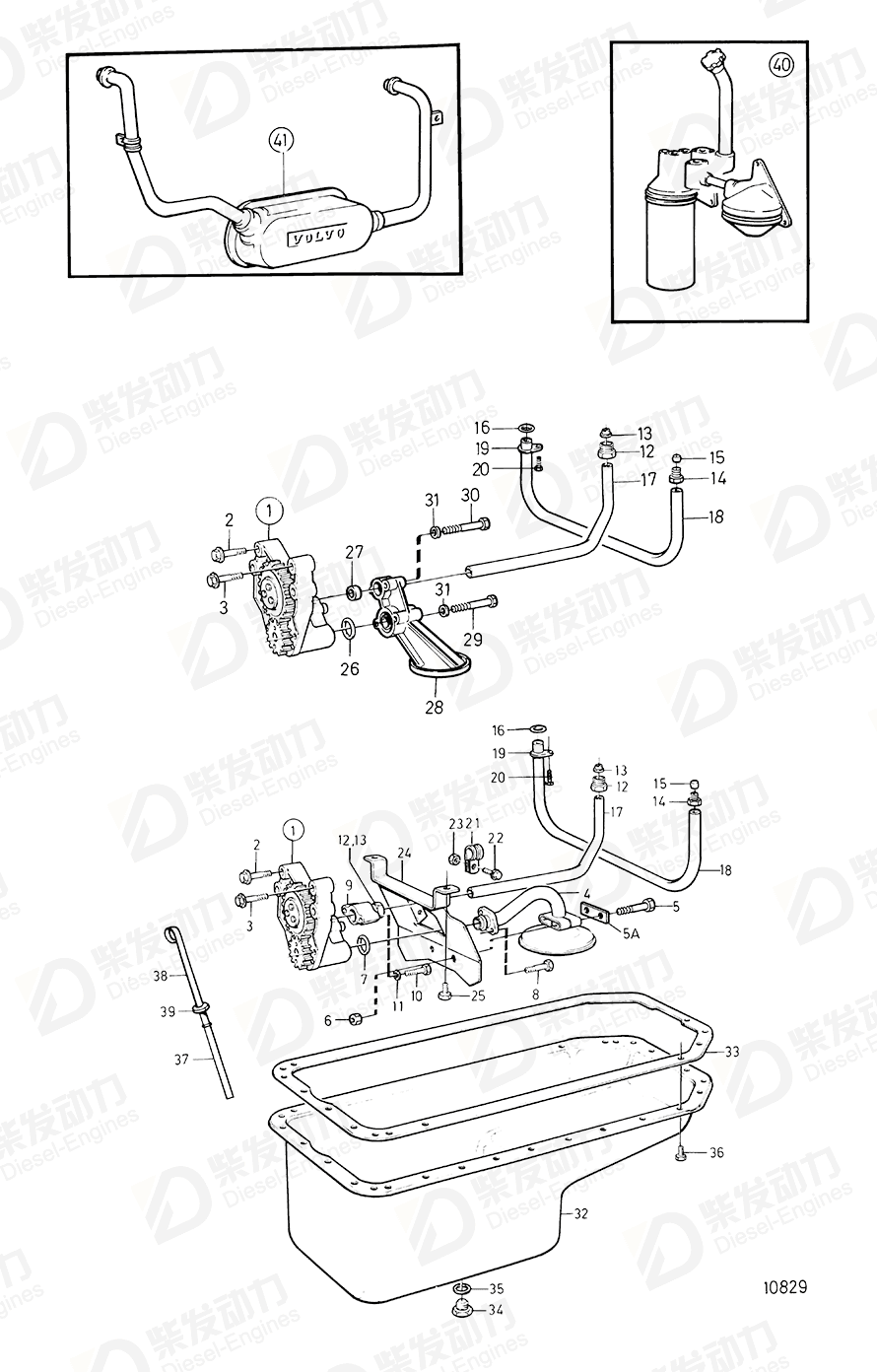

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 420867 | 1 | |
| 1 | Oil pump | 471570 | 1 | Repl by 420867 |
| 2 | Flange nut | 471513 | 4 | |
| 3 | Flange screw | 471734 | 2 | |
| 4 | Oil strainer | 465848 | 1 | Replaced by 1pc 420725,1pc 471956,1pc 949659,2pcs 955307, 2pcs 955309,4PCS 955894,1pc 465845,1pc 471588,1pc 956972. |
| 5 | Square washer | 421750 | 1 | |
| 5 | Flange screw | 965218 | 2 | |
| 6 | Flange nut | 945408 | 2 | |
| 7 | Sealing ring | 470383 | 2 | SN-2120226439 |
| 8 | Flange screw | 965182 | 2 | |
| 9 | Spacer | 465846 | 1 | |
| 10 | Hexagon screw | 955308 | 2 | L=110mm |
| 11 | Washer | 955894 | 2 | |
| 12 | Oil feed pipe | 471588 | 2 | |
| 13 | Ferrule | 956972 | 2 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 14 | Oil feed pipe | 471588 | 1 | |
| 15 | Ferrule | 956972 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 16 | Gasket | 471956 | 2 | |
| 17 | Oil pressure pipe | 465845 | 1 | |
| 18 | Oil pressure pipe | 471594 | 1 | |
| 19 | Clamp | 471746 | 1 | |
| 20 | Flange screw | 946440 | 1 | |
| 21 | Attaching clamp | 1545433 | 1 | |
| 22 | Flange screw | 946440 | 1 | |
| 23 | Flange nut | 945408 | 1 | |
| 24 | Baffle plate | 471593 | 1 | |
| 25 | Flange screw | 946440 | 2 | |
| 26 | O-ring | 949659 | 1 | |
| 27 | Gasket | 471956 | 1 | |
| 28 | Oil strainer | 420725 | 1 | |
| 29 | Hexagon screw | 955309 | 2 | For 1542460 |
| 29 | Flange screw | 969225 | 2 | L=120mm |
| 30 | Hexagon screw | 955307 | 2 | L=100mm |
| 30 | Flange screw | 965184 | 2 | |
| 31 | Washer | 955894 | 4 | |
| 32 | Oil sump | 465622 | 1 | |
| 33 | Gasket | 865341 | 1 | (864484) |
| 34 | Magnetic plug | 949175 | 1 | |
| 35 | Gasket | 18813 | 1 | |
| 36 | Flange screw | 946440 | 34 | |
| 37 | Tube | 848501 | 1 | For oil dipstick, left side mounting., Replaced by 1pc 862055,1pc 862197,1pc 955984., Early type |
| 37 | Pipe | 848700 | 1 | Oil dipstick mounted on right side. |
| 37 | Pipe | 862055 | 1 | Oil dipstick mounted on left side. |
| 38 | Oil dipstick | 846872 | 1 | |
| 38 | Oil dipstick | 848696 | 1 | For measuring of oil level when not running., Repl by 863797 |
| 38 | Oil dipstick | 862197 | 1 | Oil dipstick mounted on left side. |
| 38 | Oil dipstick | 863797 | 1 | |
| 39 | O-ring, bearing housing | 925054 | 1 | |
| 39 | O-ring | 955982 | 1 | AQ120B excl USA MO85861850/XXXX-. BB140A MO85874155/XXXX-. AQ120B USA MO85885755/XXXX-. AQ145A MO85891625/XXXX-. |
| 39 | O-ring | 955984 | 1 | MO-13688/XXXXX |
| Item | Part Name | Part No. |
| 1 | Oil pump 471570 | 471570 |
| Details | |
| Engine model | TD61A TD61A, TD61AW TD61ACE TD61AG TD61AP TD61AW TID61AG |
| Application | Lubricating System,10° Lubricating System,40%Z9 Lubricating System,standard Model Lubricating System,standard Model: A Lubricating System,standard Model: B Lubricating System,standard Model: C Oil Pump: 471570 |
| Specification | |
| Descriptions | Repl by 420867 |
