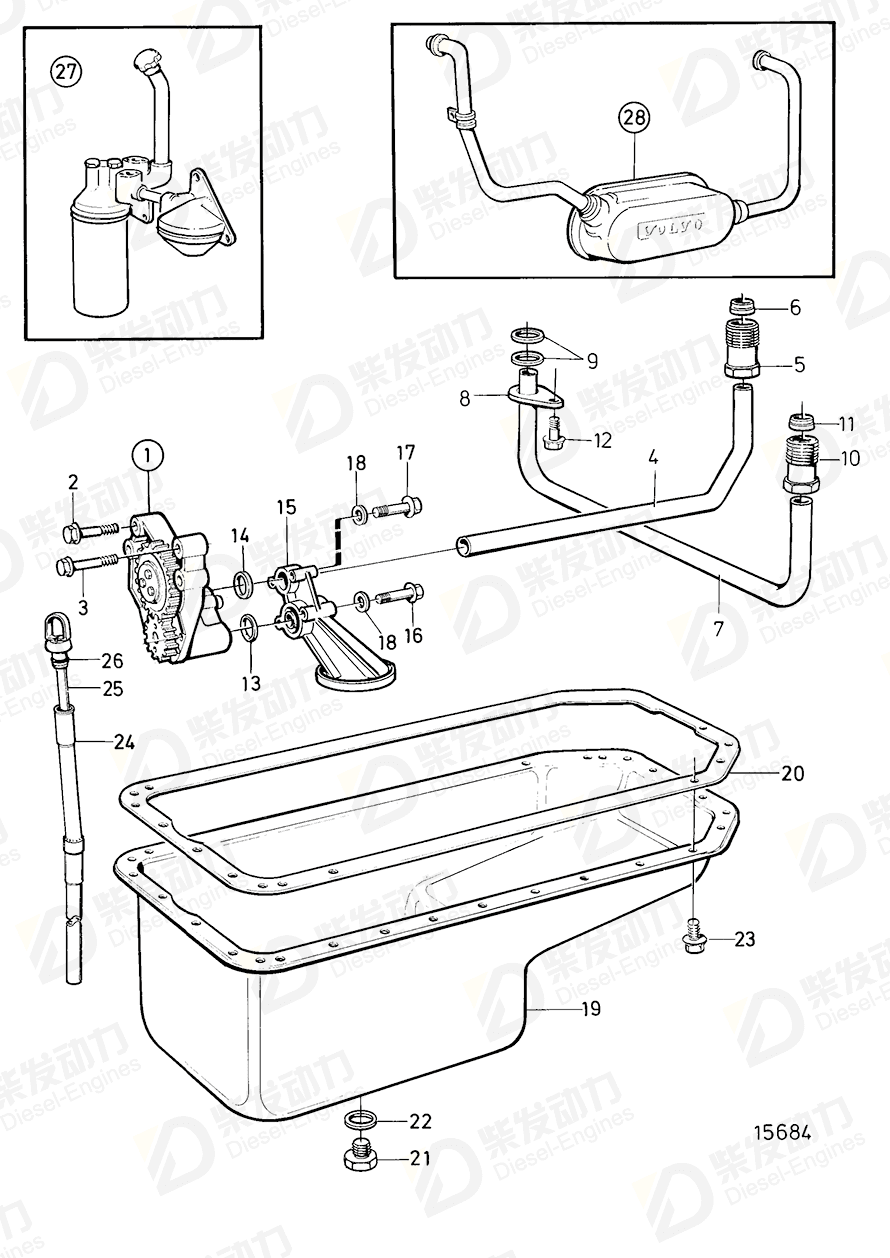

Oil pump 864760
| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 864760 | 1 | |
| 2 | Flange nut | 471513 | 4 | |
| 3 | Flange screw | 471734 | 2 | |
| 4 | Oil pressure pipe | 477948 | 1 | (864612) |
| 5 | Oil feed pipe | 471588 | 1 | |
| 6 | Ferrule | 956972 | 1 | D70B spec.867221. D70B spec.867276-867280,867300,867301 MOXXXXX/17603-. TD70B spec.867281,867282 MOXXXXX/17603-. |
| 7 | Oil pressure pipe, piston cooling | 420996 | 1 | (471594) |
| 8 | Clamp | 471746 | 1 | |
| 9 | Gasket | 471956 | 2 | |
| 10 | Pressure pipe connec | 471595 | 1 | |
| 11 | Ferrule | 980786 | 1 | |
| 12 | Flange screw | 946440 | 1 | |
| 13 | O-ring | 949659 | 1 | |
| 14 | Gasket | 471956 | 1 | |
| 15 | Oil strainer | 420725 | 1 | |
| 16 | Flange screw | 968892 | 2 | |
| 17 | Flange screw | 969225 | 2 | L=120mm |
| 18 | Washer | 955894 | 4 | |
| 19 | Oil sump | 421026 | 1 | Not for D70B spec.867279., MO-41074/XXXXX |
| 20 | Gasket | 865342 | 1 | (864485) |
| 21 | Magnetic plug | 192538 | 1 | |
| 22 | Gasket, plug | 18677 | 1 | |
| 23 | Flange screw | 946440 | 36 | |
| 24 | Pipe | 848700 | 1 | Oil dipstick mounted on right side. |
| 25 | Oil dipstick | 863797 | 1 | |
| 26 | O-ring, bearing housing | 925054 | 1 |
| Item | Part Name | Part No. |
| 1 | Oil pump 864760 | 864760 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD610G, TWD610G, TD710G, TWD710G, TAD730G, TWD740GE, TAD740GE, TAD741GE TD710G, TWD710G TD71A, TID71A, TD730VE, TWD731VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE TD71A, TID71A, TWD710V, TD730VE, TWD731VE, TAD730V, TWD740VE TWD731VE TWD740GE, TAD740GE, TAD741GE TWD740VE |
| Application | Lubricating System Lubricating System with Low Oil Sump Lubricating System, 10° Inclination, Low Sump Lubricating System, Low Noise Sump Lubricating System, Standard Lubricating System, Standard: A Lubricating System, Standard: B Lubricating System, Vehicle Type Lubricating System: C Lubricating System: SN2061097293- Oil Pump, Components Oil Pump, Components: 864760 |
| Specification | |
| Descriptions | SN2071097293- |
