Oil return pipe 11158044

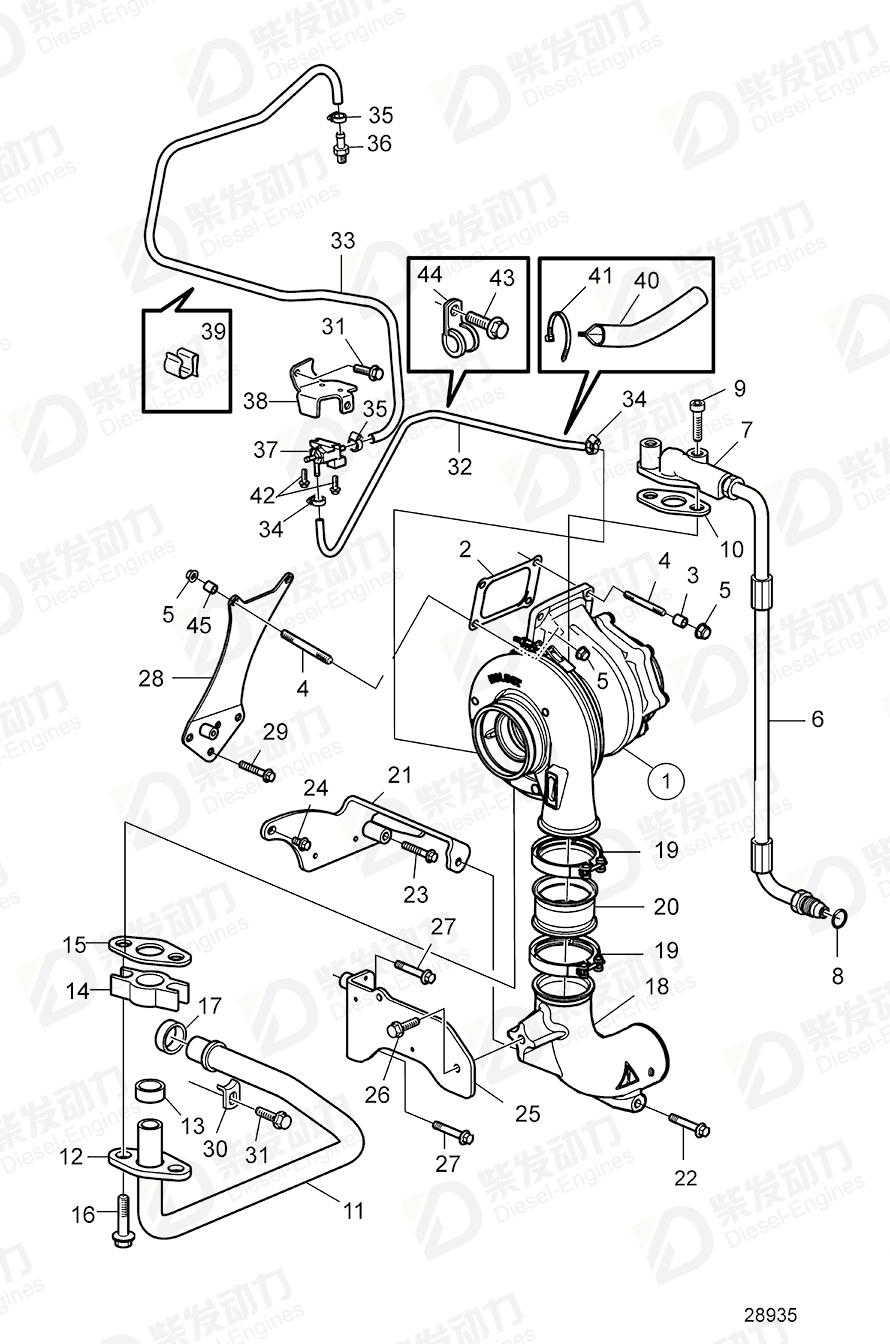

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3801421 | 1 | |
| 2 | Plane gasket | 20784537 | 1 | |
| 3 | Spacer sleeve | 60112113 | 2 | |
| 4 | Stud | 21345127 | 4 | |
| 5 | Flange nut | 994628 | 4 | |
| 6 | Oil feed hose | 11158484 | 1 | |
| 7 | Flange | 8192268 | 1 | |
| 8 | O-ring | 976971 | 1 | |
| 9 | Flange screw | 984737 | 2 | |
| 10 | Gasket | 22206133 | 1 | |
| 11 | Oil return pipe | 11158044 | 1 | |
| 11 | Oil return pipe | 15160855 | 1 | Replaced by 22929549 |
| 11 | Return pipe | 22929549 | 1 | |
| 12 | Pipe flange | 469543 | 1 | |
| 13 | Rubber moulding | 469601 | 1 | |
| 14 | Connector | 8148729 | 1 | |
| 15 | Gasket | 470993 | 1 | (420423) |
| 16 | Flange screw | 984738 | 2 | |
| 17 | Sealing ring | 1547255 | 1 | |
| 18 | Connecting pipe | 22614800 | 1 | |
| 19 | V-clamp | 20592783 | 2 | |
| 20 | Charge air hose | 15185107 | 1 | |
| 21 | Bracket | 22608053 | 1 | |
| 22 | Flange screw | 984763 | 1 | |
| 23 | Flange screw | 984757 | 1 | |
| 24 | Flange screw | 984752 | 1 | |
| 25 | Bracket | 22588011 | 1 | |
| 26 | Flange screw | 984755 | 1 | |
| 27 | Flange screw | 975103 | 2 | |
| 28 | Support | 22632685 | 1 | |
| 29 | Flange screw | 994386 | 3 | |
| 30 | Lock brace | 1546531 | 1 | |
| 31 | Flange screw | 984733 | 1 | |
| 32 | Hose | 21311243 | 1 | |
| 33 | Hose | 11158489 | 1 | |
| 34 | Hose clamp | 976573 | 1 | |
| 35 | Hose clamp | 993978 | 1 | |
| 36 | Hose nipple | 945713 | 1 | |
| 37 | Solenoid valve | 3819161 | 1 | |
| 38 | Bracket | 21311241 | 1 | |
| 39 | Retainer | 984937 | 3 | |
| 40 | Tube | 20711293 | 1 | |
| 41 | Cable tie | 983472 | 1 | For cable to unit injectors. |
| 42 | Hex. socket screw | 959187 | 2 | |
| 43 | Flange screw | 984751 | 1 | |
| 44 | Clamp | 949746 | 1 | |
| 45 | Spacer sleeve | 60112076 | 2 |
| Item | Part Name | Part No. |
| 11 | Oil return pipe 11158044 | 11158044 |
| Details | |
| Engine model | TAD1650GE, TAD1651GE TAD1660VE, TAD1661VE, TAD1662VE, TAD1640VE-B, TAD1641VE-B, TAD1642VE-B |
| Application | Turbocharger Turbocharger SN-2016098146 Turbocharger SN2016098147- |
| Specification | |
| Descriptions | Replaced by 15160855 |
