Oil return pipe 837729

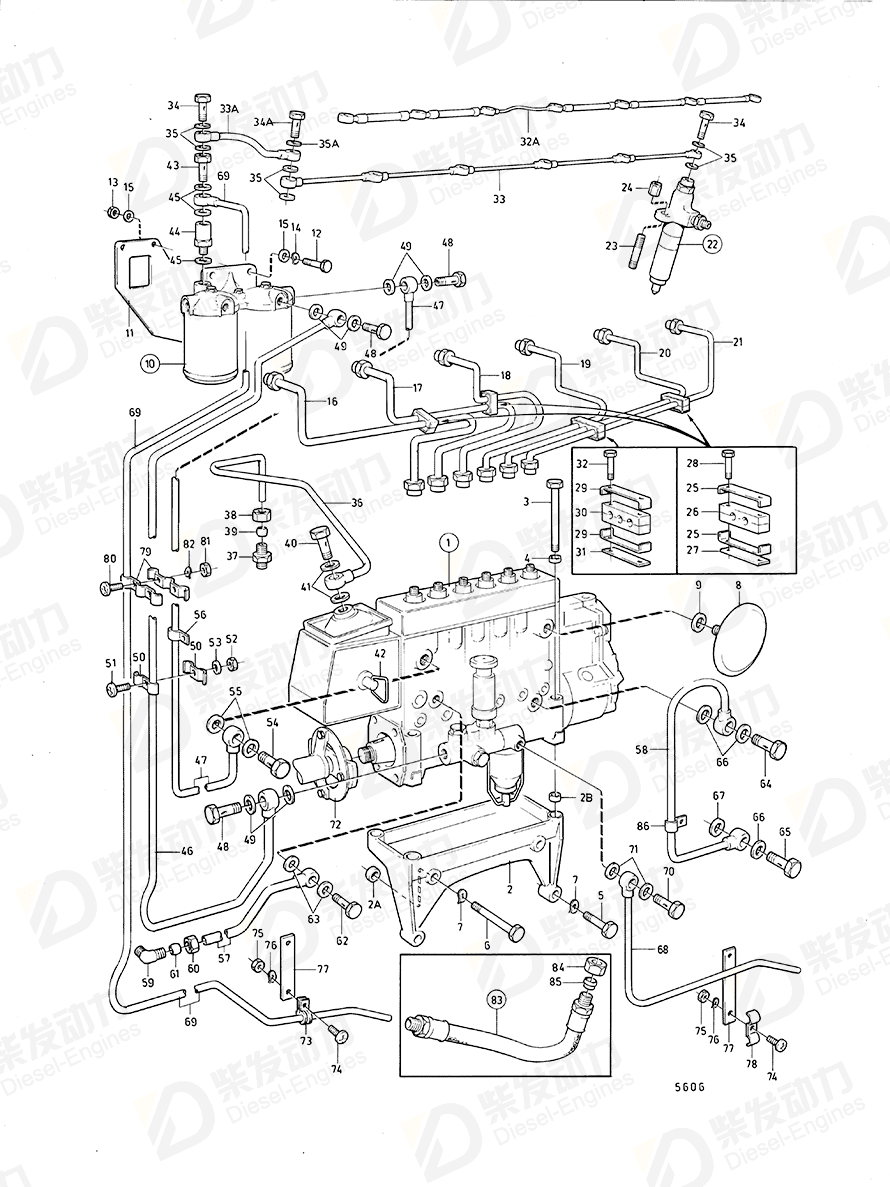

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 837914 | 1 | Replaced by 1pc 846606 fuel injection pump., MO64706/XXXXX- |
| 1 | Injection pump | 846606 | 1 | |
| 2 | Bracket | 466002 | 1 | |
| 3 | Hexagon screw | 940156 | 4 | |
| 4 | Washer | 190509 | 4 | |
| 5 | Hexagon screw | 955564 | 2 | |
| 6 | Hexagon screw | 955566 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., L=64mm |
| 7 | Spring washer | 940280 | 4 | |
| 8 | Pressure equalizer | 466398 | 1 | |
| 9 | Gasket | 957178 | 1 | |
| 10 | Filter housing | 241672 | 1 | Replaced by 1 PC 843512,1 ST 191026., Classed engine,not included in fuel feed pump. |
| 11 | Bracket | 820810 | 1 | |
| 12 | Hexagon screw | 955536 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298., Late type |
| 13 | Hexagon nut | 955827 | 2 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 14 | Spring washer | 942336 | 2 | |
| 15 | Washer | 940097 | 4 | |
| 16 | Delivery pipe | 466004 | 1 | |
| 17 | Delivery pipe | 466005 | 1 | |
| 18 | Delivery pipe | 466006 | 1 | |
| 19 | Delivery pipe | 466007 | 1 | |
| 20 | Delivery pipe | 466008 | 1 | |
| 21 | Delivery pipe | 466009 | 1 | |
| 22 | Injector | 837028 | 6 | |
| 23 | Stud | 944189 | 12 | |
| 24 | Nut | 417110 | 12 | |
| 25 | Attaching clamp | 414344 | 6 | |
| 26 | Attaching clamp | 414345 | 6 | |
| 27 | Nut plate | 414736 | 3 | |
| 28 | Hexagon screw | 955247 | 6 | |
| 29 | Attaching clamp | 414346 | 2 | |
| 2A | Guide sleeve | 423161 | 1 | |
| 2B | Guide sleeve | 417588 | 1 | |
| 30 | Attaching clamp | 414347 | 2 | |
| 31 | Nut plate | 414735 | 1 | |
| 32 | Hexagon screw | 955247 | 2 | |
| 33 | Leak-off pipe | 466896 | 1 | Late type |
| 34 | Hollow screw | 74033 | 1 | |
| 35 | Gasket | 957171 | 14 | |
| 36 | Cable | 466012 | 1 | |
| 37 | Nipple | 949554 | 1 | Ers av 1 pc 466896,1 pc 837794,1 pc 74034,1 pc 957171. |
| 38 | Fitting nut | 954357 | 1 | |
| 39 | Fitting | 954365 | 1 | |
| 40 | Hollow screw | 74040 | 1 | |
| 41 | Gasket | 957175 | 2 | |
| 42 | Attaching lug | 422525 | 1 | |
| 43 | Hollow screw | 16496 | 1 | |
| 44 | Overflow valve | 35096 | 1 | |
| 45 | Gasket | 957178 | 3 | |
| 46 | Fuel pipe | 836863 | 1 | |
| 47 | Fuel pipe | 837487 | 1 | |
| 48 | Hollow screw | 25167 | 2 | |
| 49 | Gasket | 957178 | 2 | |
| 50 | Clamp | 402404 | 6 | |
| 51 | Cross recessed screw | 950045 | 3 | |
| 52 | Hexagon nut | 955825 | 3 | Late type |
| 53 | Washer | 955894 | 3 | |
| 54 | Hollow screw | 25167 | 2 | |
| 55 | Gasket | 957178 | 4 | |
| 56 | Clamp | 18387 | 2 | |
| 57 | Feed line | 466010 | 1 | MO-47150/XXXXX |
| 57 | Feed line | 466168 | 1 | MO47151/XXXXX- |
| 58 | Oil return pipe | 466167 | 1 | MO47151/XXXXX- |
| 58 | Tube | 824346 | 1 | MO-47150/XXXXX |
| 58 | Oil return pipe | 837729 | 1 | Engine with control motor type crouzet |
| 59 | Elbow nipple | 329638 | 1 | |
| 60 | Fitting nut | 954356 | 1 | |
| 61 | Sleeve | 954364 | 1 | |
| 62 | Hollow screw | 48634 | 1 | |
| 63 | Gasket | 957173 | 2 | |
| 64 | Hollow screw | 25167 | 1 | |
| 65 | Hollow screw | 954394 | 1 | |
| 66 | Gasket | 957178 | 3 | |
| 67 | Gasket | 957181 | 1 | |
| 68 | Fuel pipe | 842656 | 1 | |
| 69 | Fuel pipe | 821167 | 1 | |
| 70 | Hollow screw | 25167 | 1 | |
| 71 | Gasket | 957178 | 2 | |
| 73 | Clamp | 952625 | 1 | |
| 74 | Cross recessed screw | 950046 | 2 | |
| 75 | Hexagon nut | 955825 | 2 | Late type |
| 76 | Spring washer | 941906 | 2 | |
| 77 | Anchorage | 821625 | 2 | |
| 78 | Clamp | 941492 | 1 | |
| 79 | Clamp | 944289 | 4 | |
| 80 | Cross recessed screw | 950047 | 5 | |
| 81 | Hexagon nut | 955825 | 5 | Late type |
| 82 | Spring washer | 941906 | 5 | |
| 83 | Fuel hose | 845450 | 2 | (880618) |
| 84 | Fitting nut | 956983 | 4 | |
| 85 | Ferrule | 956969 | 4 | |
| 86 | Clamp | 18964 | 1 | |
| 33A | Fuel hose | 837794 | 1 | D42A PP spec. 16053, 867638., Late type |
| 34A | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 35A | Gasket | 957171 | 1 |
| Item | Part Name | Part No. |
| 58 | Oil return pipe 837729 | 837729 |
| Details | |
| Engine model | D70B D70CHC D70CRC TD70CHC TD70CRC |
| Application | Fuel System MO46197/XXXXX-: A Fuel System, Classed Engine, Spec.867053, MO46197/XXXXX- Fuel System, Classed Engine, Spec.867117 Fuel System: A Fuel System: B Fuel System: C Fuel System: D |
| Specification | |
| Descriptions | Engine with control motor type crouzet For engine with manual speed control When manual speed control is mounted |
