Oil return pipe 845376

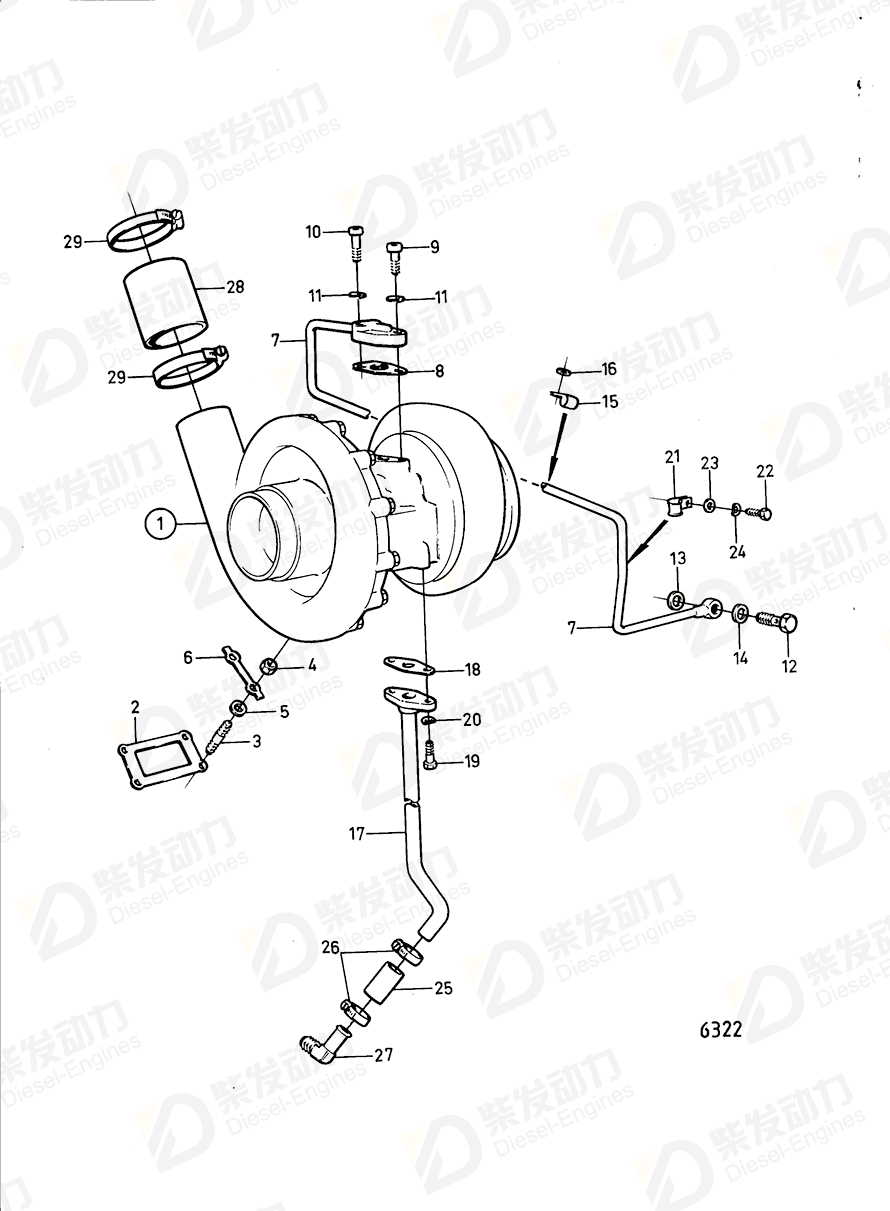

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 843595 | 1 | Spec 867390 |
| 2 | Gasket | 417382 | 1 | |
| 3 | Stud | 953261 | 4 | |
| 4 | Nut | 943152 | 4 | |
| 5 | Washer | 940097 | 4 | |
| 6 | Lock washer | 468219 | 2 | |
| 7 | Oil feed pipe | 423395 | 1 | |
| 8 | Gasket | 417378 | 1 | |
| 9 | Hex. socket screw | 956584 | 1 | L=25mm |
| 10 | Hex. socket screw | 956585 | 1 | L=32mm |
| 11 | Spring washer | 942336 | 2 | |
| 12 | Hollow screw | 942589 | 1 | |
| 13 | Gasket | 942703 | 1 | |
| 14 | Gasket | 11998 | 1 | |
| 15 | Clamp | 942779 | 1 | |
| 16 | Gasket | 942580 | 1 | |
| 17 | Oil return pipe | 845376 | 1 | (423467) |
| 18 | Gasket | 417381 | 1 | |
| 19 | Hexagon screw | 940115 | 2 | |
| 21 | Clamp | 190159 | 1 | |
| 22 | Hexagon screw | 940115 | 1 | |
| 23 | Washer | 955894 | 1 | |
| 24 | Spring washer | 941907 | 1 | |
| 25 | Hose | 192358 | 1 | L=170mm MOXXXXX/31956 |
| 26 | Hose clamp | 994559 | 2 | |
| 27 | Elbow nipple | 468629 | 1 | TAMD70C,AQD70C. |
| 28 | Hose | 944375 | 1 | MO83030/XXXX-., L=3X60mm |
| 28 | Hose | 944378 | 1 | L=60mm |
| 29 | Gasket kit, turbo | 275529 | 1 | |
| 29 | Hose clamp | 943482 | 2 | (951798) |
| Item | Part Name | Part No. |
| 17 | Oil return pipe 845376 | 845376 |
| Details | |
| Engine model | TD120A TD120C |
| Application | Turbo and Installation Components |
| Specification | |
| Descriptions | (423467) |
