Oil return pipe 848685

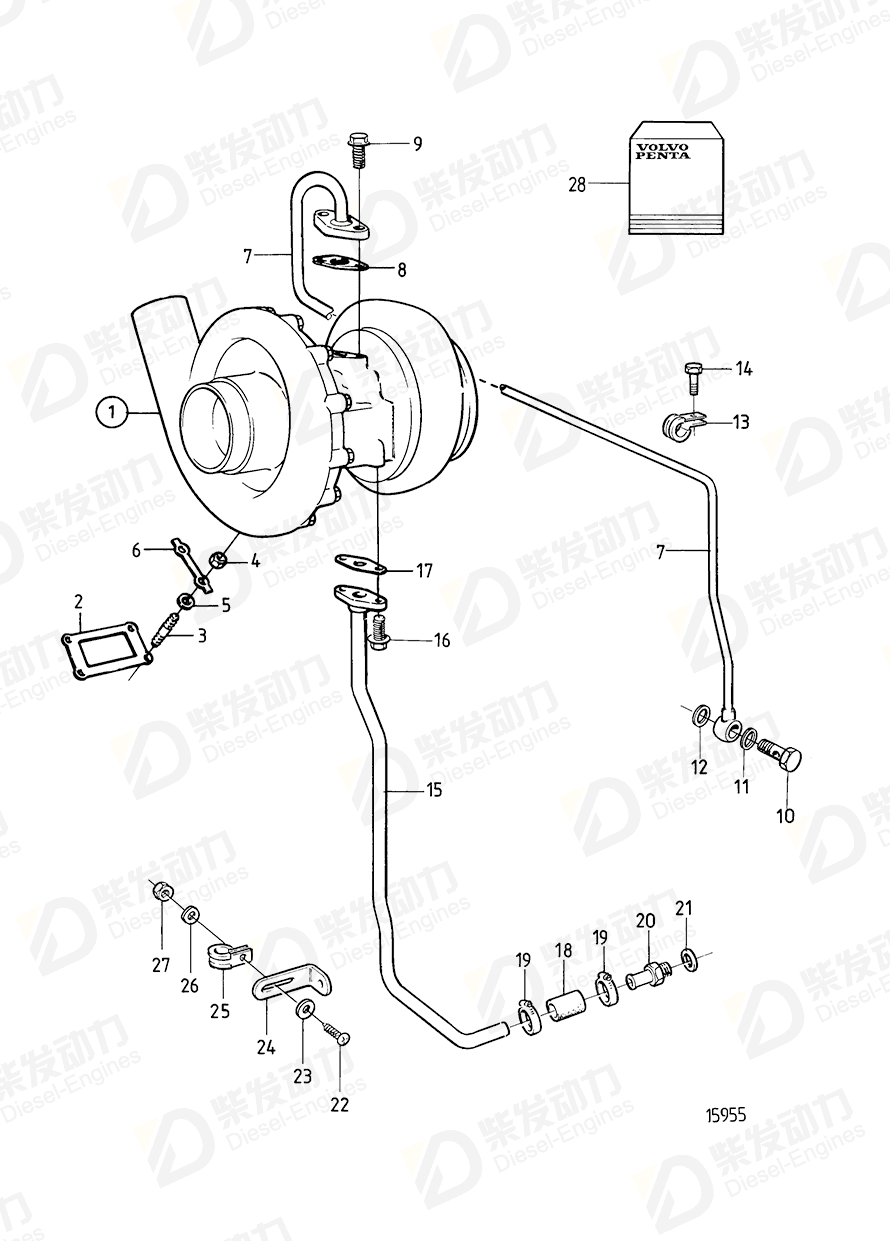

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbo | 3802078 | 1 | (3825106) |
| 2 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 3 | Stud | 468891 | 4 | |
| 4 | Flange lock nut | 8194568 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Lock washer | 468219 | 4 | |
| 7 | Oil pressure pipe | 865796 | 1 | Replaced by 1 pc pressure oil hose 3827670, 1 pc flange 8192268 and 2 pc screw 946470. |
| 8 | Plane gasket | 420641 | 1 | |
| 9 | Flange screw | 946173 | 2 | |
| 10 | Hollow screw | 942007 | 1 | (954394) |
| 11 | Gasket | 11998 | 1 | |
| 12 | Gasket | 942703 | 1 | |
| 13 | Clamp | 978869 | 2 | |
| 14 | Hexagon screw | 955534 | 1 | |
| 15 | Oil return pipe | 848685 | 1 | |
| 16 | Flange screw | 946173 | 2 | |
| 17 | Gasket | 1543360 | 1 | |
| 18 | Hose | 466328 | 1 | |
| 19 | Hose clamp | 943474 | 2 | |
| 20 | Nipple | 941875 | 1 | |
| 21 | Gasket, plug | 18677 | 1 | |
| 22 | Cross recessed screw | 950046 | 1 | |
| 23 | Washer | 955893 | 1 | |
| 24 | Bracket | 965560 | 1 | |
| 25 | Clamp | 952632 | 1 | Late type |
| 26 | Spring washer | 941906 | 1 | |
| 27 | Hexagon nut | 955825 | 1 | Late type |
| 28 | Gasket kit | 876352 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 15 | Oil return pipe 848685 | 848685 |
| Details | |
| Engine model | TID121L-87, TID121LG, TID121LG-87, TID121LGP-87, TID121LP, TID121LP-87 TWD1210G TWD1210P, TWD1211P, TWD1211G TWD1210V, TWD1211V TWD1211G TWD1230ME TWD1230VE TWD1231VE |
| Application | Turbo and Installation Components Turbo, High Mounted, SNXXXXXXXXXX/238057-: B Turbocharger Turbocharger, High Mounted Turbocharger, High Mounted: B Turbocharger, High Mounted: C Turbocharger: A Turbocharger: B |
