Oil return pipe 849103

Oil return pipe 849103

0 reviews Write a review
  • Brandsvolvo penta
  • Part No.: 849103
  • Availability: 联系我们
No. Part Name Part Number Qty Description
1 Turbocharger, turbo 1545097 1 Repl by 846652
1 Turbocharger 3802017 1 (846652)
2 Gasket 422779 1
3 Stud 468892 4
4 Hexagon nut 191894 4
5 Washer 940097 4
6 Tab washer 1545277 2 Included in gasket kit.
7 Oil pressure pipe 849612 1
8 Plane gasket 420641 1
9 Hexagon screw 955295 1
10 Hexagon screw 955295 1
11 Spring washer 941907 2
12 Hollow screw 942007 1 (954394)
13 Gasket 942703 1
14 Gasket 11998 1
15 Clamp 968200 1
16 Clamp 952626 1
17 Cross recessed screw 950045 1
18 Spring washer 941906 1
19 Oil return pipe 849103 1 (846383)
20 Plane gasket 420643 1
21 Hex. socket screw 959220 2
22 Spring washer 941907 2
23 Hose 466328 1
24 Hose clamp 943474 2
25 Elbow nipple 468629 1 TAMD70C,AQD70C.
26 Bracket 414692 1 MOXXXXX/109942-
27 Hexagon screw 940115 1
28 Spring washer 942336 1
29 Spacer sleeve 468730 1
30 Clamp 952632 1 Late type
31 Cross recessed screw 950046 1
32 Washer 955893 1
33 Spring washer 941906 1
34 Hexagon nut 955825 1 Late type
35 Bracket 465584 1
36 Cross recessed screw 950046 1
37 Spring washer 941906 1
38 Clamp 952632 1 Late type
39 Cross recessed screw 950045 1
40 Spring washer 941906 1
41 Gasket kit 876354 1
7A Bracket 965559 1
7B Clamp 968200 1
7C Cross recessed screw 950046 1
7D Hexagon nut 955825 1 Late type
Item Part Name Part No.
19 Oil return pipe 849103 849103

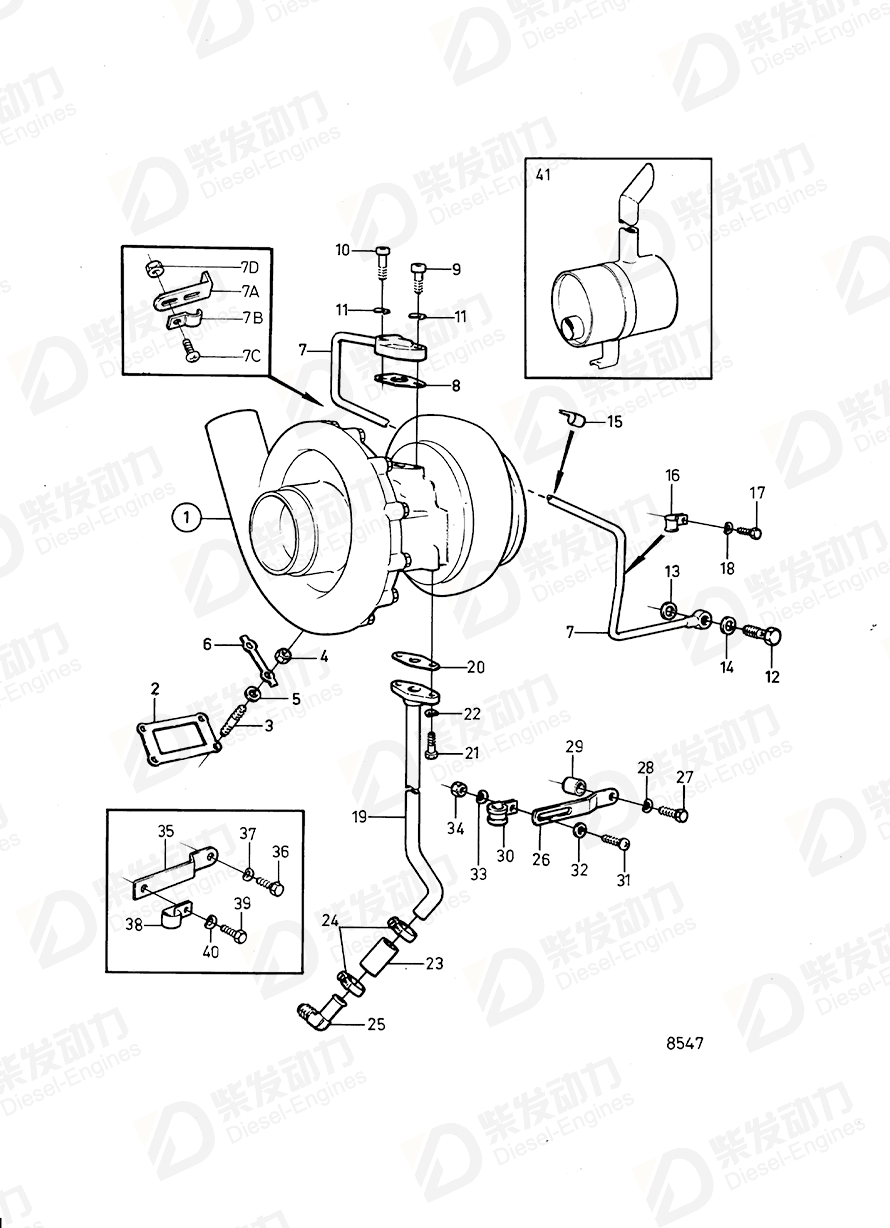

volvo penta Oil return pipe 849103 Drawing
Details
Application Turbo and Installation Components
Specification
Descriptions (846383)
