Oil return pipe 849652

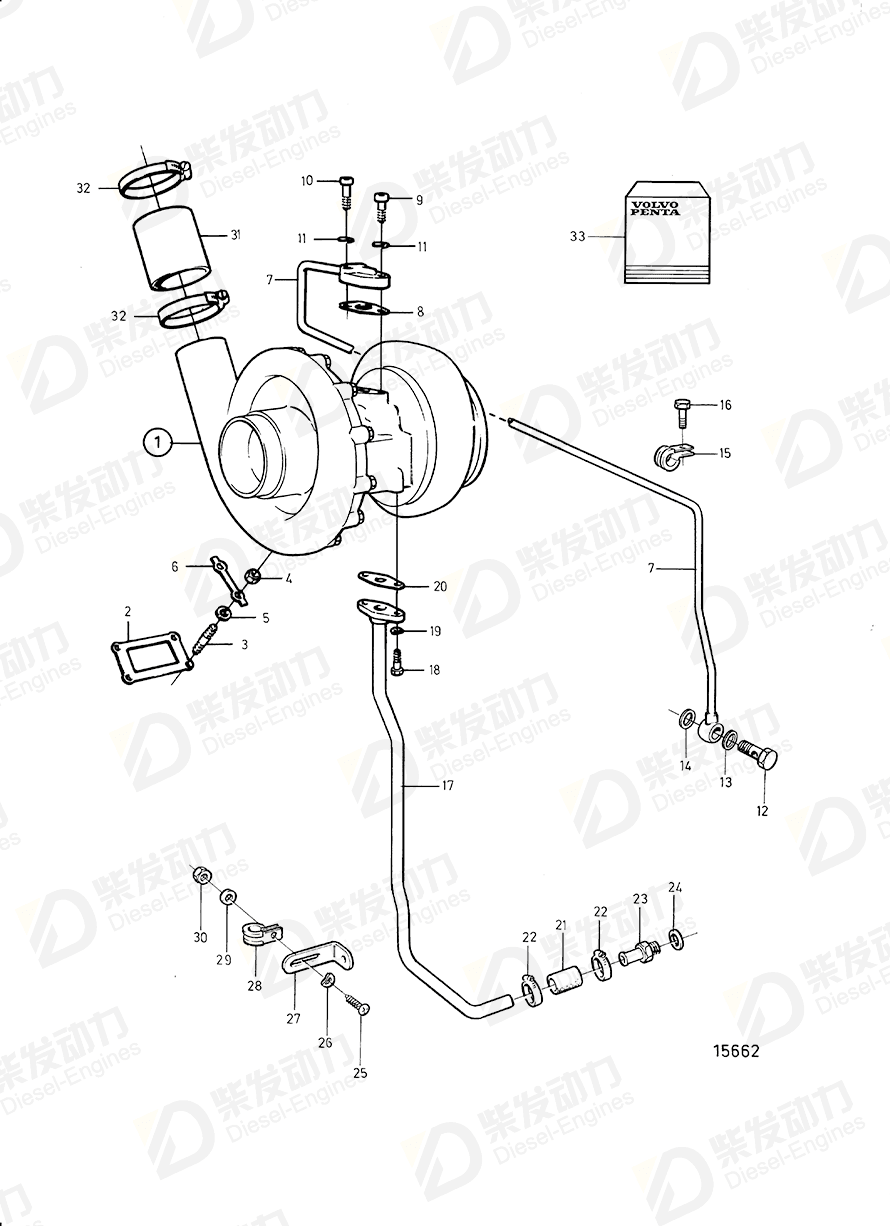

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3802044 | 1 | (847827) |
| 2 | Gasket | 470939 | 1 | Included in gasket kit for connecting of turbocharger. |
| 3 | Stud | 468891 | 4 | |
| 4 | Flange lock nut | 8194568 | 4 | |
| 5 | Spacer sleeve | 470467 | 4 | |
| 6 | Lock washer | 468219 | 4 | |
| 7 | Oil pressure pipe | 863550 | 1 | |
| 8 | Plane gasket | 420641 | 1 | |
| 9 | Hex. socket screw | 956584 | 1 | L=25mm |
| 10 | Hex. socket screw | 956585 | 1 | L=32mm |
| 11 | Spring washer | 942336 | 2 | |
| 12 | Hollow screw | 942007 | 1 | (954394) |
| 13 | Gasket | 11998 | 1 | |
| 14 | Gasket | 942703 | 1 | |
| 15 | Clamp | 978869 | 2 | |
| 16 | Hexagon screw | 955534 | 1 | |
| 17 | Oil return pipe | 849652 | 1 | |
| 18 | Hexagon screw | 940115 | 2 | |
| 19 | Spring washer | 942336 | 2 | |
| 20 | Gasket | 1543360 | 1 | |
| 21 | Hose | 466328 | 1 | |
| 22 | Hose clamp | 943474 | 2 | |
| 23 | Nipple | 941875 | 1 | |
| 24 | Gasket, plug | 18677 | 1 | |
| 25 | Cross recessed screw | 950046 | 1 | |
| 26 | Washer | 955893 | 1 | |
| 27 | Bracket | 965560 | 1 | |
| 28 | Clamp | 952632 | 1 | Late type |
| 29 | Spring washer | 941906 | 1 | |
| 30 | Hexagon nut | 955825 | 1 | Late type |
| 31 | Hose | 470327 | 1 | |
| 32 | Hose clamp | 943482 | 2 | (951798) |
| 33 | Gasket kit | 876352 | 1 | See group 99 |
| Item | Part Name | Part No. |
| 17 | Oil return pipe 849652 | 849652 |
| Details | |
| Engine model | TAD1230G, TAD1231GE, TAD1232GE TAD1230P TAD1230V TD121G TD121GG TD121GG-86 TD121GP-87 TID121K, TID121KG, TID121KP TID121K-87, TID121KG-87, TID121KPB-87 |
| Application | Turbo and Installation Components Turbo and Installation Components: A Turbo and Installation Components: B Turbo and Installation Components: C Turbo and Installation Components: TD120HP86 Turbo, High Mounted SN-2120147401 Turbocharger |
