Oil return pipe 865274

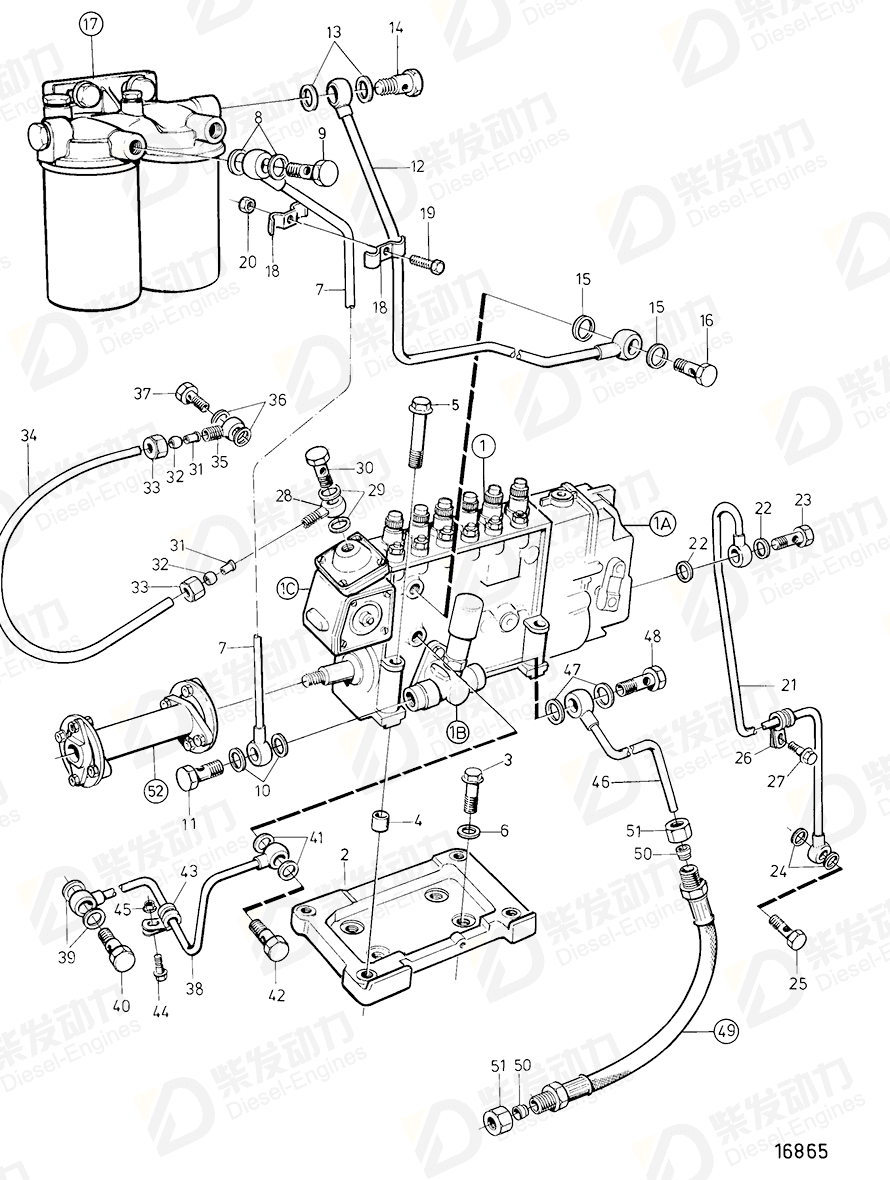

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 3803735 | 1 | |
| 1 | Injection pump | 3825515 | 1 | |
| 2 | Shelf | 477773 | 1 | |
| 3 | Flange screw | 965185 | 4 | |
| 4 | Guide sleeve | 417588 | 2 | |
| 5 | Flange screw | 965189 | 4 | |
| 6 | Spring washer | 941908 | 4 | |
| 7 | Fuel pipe | 471484 | 1 | |
| 8 | Gasket | 969011 | 8 | |
| 9 | Hollow screw | 25167 | 1 | |
| 10 | Gasket | 969011 | 2 | |
| 11 | Hollow screw | 25167 | 1 | |
| 12 | Fuel pipe | 471603 | 1 | |
| 13 | Gasket | 969011 | 2 | |
| 14 | Hollow screw | 25167 | 1 | |
| 15 | Gasket | 969011 | 2 | |
| 16 | Hollow screw | 25167 | 1 | |
| 18 | Attaching clamp | 404279 | 2 | D70B spec. 867054, 867055, 867061, 867062, 867063, 867132, TD70B spec. 867065. |
| 19 | Cross recessed screw | 956095 | 1 | |
| 1A | Governor | 3825957 | 1 | |
| 1B | Feed pump | 244825 | 1 | |
| 20 | Hexagon nut | 955781 | 1 | |
| 21 | Oil return pipe | 865274 | 1 | SN2071074713- |
| 22 | Gasket | 947281 | 2 | |
| 23 | Hollow screw | 48634 | 1 | |
| 24 | Gasket | 969011 | 2 | |
| 25 | Hollow screw | 25167 | 1 | |
| 26 | Clamp | 947191 | 1 | |
| 27 | Flange screw | 946471 | 1 | |
| 28 | Banjo nipple | 945417 | 1 | |
| 29 | Gasket | 947282 | 2 | Late type |
| 30 | Hollow screw | 969299 | 1 | |
| 31 | Support sleeve | 944717 | 2 | |
| 32 | Sleeve | 954364 | 2 | |
| 33 | Fitting nut | 954356 | 2 | |
| 34 | Tube | 945460 | 1 | L=900mm |
| 35 | Banjo nipple | 945417 | 1 | |
| 36 | Gasket | 947282 | 2 | Late type |
| 37 | Hollow screw | 969299 | 1 | |
| 38 | Oil pressure pipe | 477986 | 1 | SN2071064647- |
| 39 | Gasket | 969011 | 2 | |
| 40 | Hollow screw | 25167 | 1 | |
| 41 | Gasket | 907132 | 2 | |
| 42 | Hollow screw | 48634 | 1 | |
| 43 | Clamp | 952623 | 1 | |
| 44 | Flange screw | 946544 | 1 | For THD102KB and THD102KD. |
| 45 | Flange nut | 945407 | 1 | For THD102KB and THD102KD. |
| 46 | Fuel pipe | 837608 | 1 | Alt |
| 47 | Gasket | 969011 | 2 | |
| 48 | Hollow screw | 25167 | 1 | |
| 49 | Fuel hose | 865737 | 1 | |
| 50 | Ferrule | 956969 | 2 | |
| 51 | Fitting nut | 956983 | 2 |
| Item | Part Name | Part No. |
| 21 | Oil return pipe 865274 | 865274 |
| Details | |
| Engine model | TAD730G TAD730P TAD730V TD710G TD71A TD71A, TID71A, TWD710V, TAD730V TD71ACE TD71AG TD71AP TD71AW TD730ME TD730VE TID71A TID71AG TID71AP TWD710G TWD710P TWD710V TWD731ME TWD731VE |
| Application | Fuel Injection Pump and Fuel Filter Fuel Injection Pump and Fuel Filter. Standard Fuel System: A Fuel Injection Pump and Fuel Filter. Standard Fuel System: B Fuel Injection Pump and Fuel Filter: A Fuel Injection Pump and Fuel Filter: B Fuel Injection Pump and Fuel Filter: C Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: A Fuel Injection Pump with Shut-off Valve, Energized to Stop. Option.: B Fuel System with Shut-off Valve Fuel System: A Fuel System: B Fuel System: C Fuel System: D Fuel System: TD71AGP Fuel System: TD71APB Fuel System: TID71AGP Fuel System: TID71APB Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: A Injection Pump and Fuel Filter. Standard Fuel System Alt. with Shut-off-valve: B Injection Pump with Shut-off Valve, Energized to Run. Option.: A Injection Pump with Shut-off Valve, Energized to Run. Option.: B Injection Pump, Fuel Filter and Shut-off Valve: A Injection Pump, Fuel Filter and Shut-off Valve: B Injection Pump, Fuel Filter and Shut-off Valve: C |
| Specification | |
| Descriptions | SN2071074713- |
