Oil sump 843748

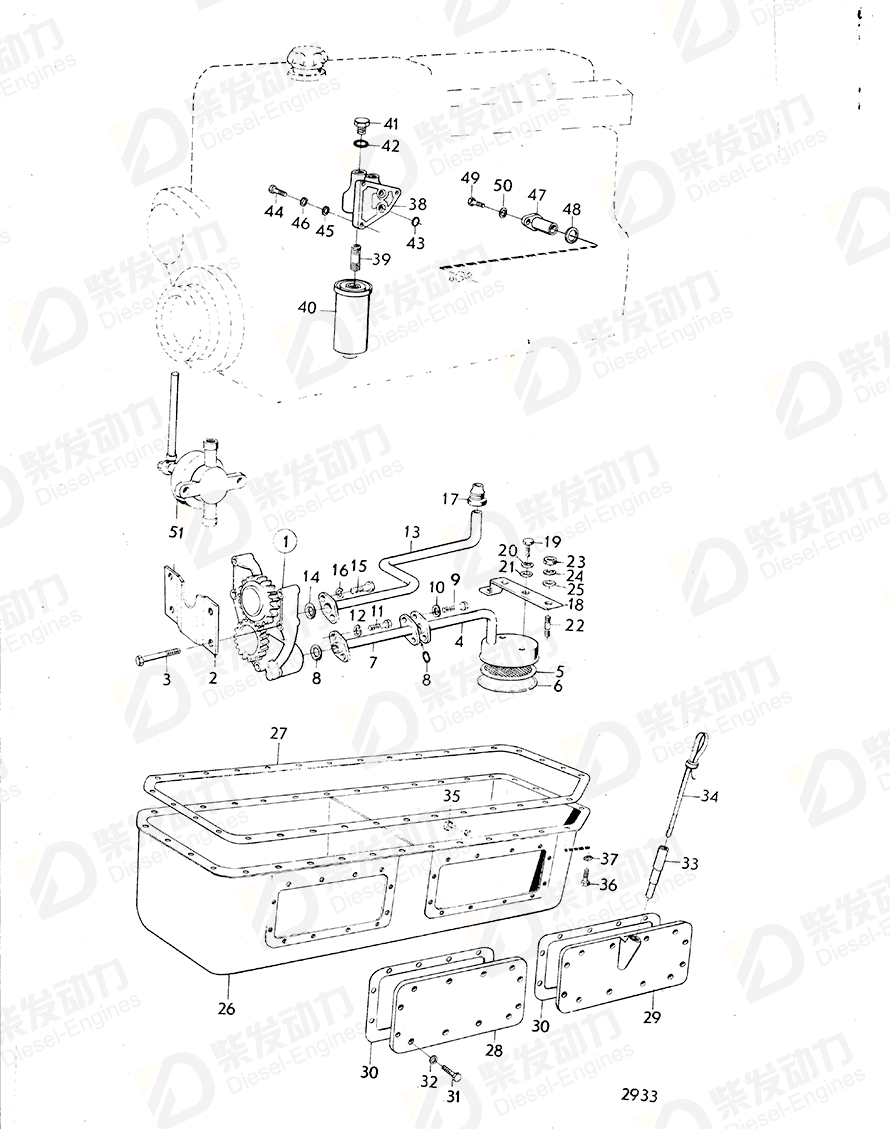

| No. | Part Name | Part Number | Qty | Description |
| 1 | Oil pump | 466387 | 1 | MO81654/XXXXX |
| 2 | Baffle | 421404 | 1 | |
| 3 | Hexagon screw | 955538 | 4 | |
| 4 | Oil pipe | 421051 | 1 | |
| 5 | Wire gauze | 414621 | 1 | |
| 6 | Retaining ring | 118125 | 1 | |
| 7 | Intermediate pipe | 896693 | 1 | |
| 8 | O-ring | 949657 | 2 | (925060) |
| 9 | Hexagon screw | 940135 | 2 | |
| 10 | Spring washer | 941907 | 2 | |
| 11 | Hexagon screw | 955530 | 2 | |
| 12 | Spring washer | 941907 | 2 | |
| 13 | Oil return pipe | 421049 | 1 | |
| 14 | O-ring | 947061 | 1 | |
| 15 | Hexagon screw | 955530 | 2 | |
| 16 | Spring washer | 941907 | 2 | |
| 17 | Fitting | 466906 | 1 | (940358) |
| 18 | Bracket | 896773 | 1 | |
| 19 | Hexagon screw | 955523 | 2 | |
| 20 | Spring washer | 941907 | 2 | |
| 21 | Washer | 955894 | 2 | |
| 22 | Stud | 953235 | 2 | |
| 23 | Hexagon nut | 955826 | 2 | |
| 24 | Spring washer | 941907 | 2 | |
| 25 | Washer | 955894 | 2 | |
| 26 | Oil sump | 843748 | 1 | (896689) |
| 27 | Gasket | 421025 | 1 | |
| 28 | Hatch | 800877 | 1 | |
| 29 | Hatch | 802057 | 1 | |
| 30 | Gasket | 823185 | 2 | |
| 31 | Hex. socket screw | 956569 | 24 | |
| 32 | Gasket | 11992 | 24 | |
| 33 | Sleeve | 801480 | 1 | |
| 34 | Oil dipstick | 821100 | 1 | |
| 35 | Magnetic plug | 951906 | 1 | |
| 36 | Hex. socket screw | 956570 | 36 | |
| 37 | Spring washer | 941907 | 36 | |
| 38 | Housing | 421216 | 1 | |
| 39 | Nipple | 423067 | 1 | |
| 40 | Oil filter | 4785974 | 1 | |
| 41 | Plug | 192114 | 2 | |
| 42 | Gasket | 957185 | 2 | |
| 43 | O-ring | 947061 | 2 | |
| 44 | Hexagon screw | 955535 | 3 | |
| 45 | Washer | 940097 | 3 | |
| 46 | Spring washer | 942336 | 3 | |
| 47 | Reduction valve | 421123 | 1 | |
| 48 | O-ring | 949721 | 1 | (925062) |
| 49 | Hexagon screw | 940100 | 2 | |
| 50 | Spring washer | 941906 | 2 |
| Item | Part Name | Part No. |
| 26 | Oil sump 843748 | 843748 |
| Details | |
| Engine model | D70B D70CHC D70CRC TD70CHC TD70CRC |
| Application | Lubricating System, Classed Engine Lubricating System: A Lubricating System: B Lubricating System: C Lubricating System: D |
| Specification | |
| Descriptions | (896689) |
