Pin 1505358

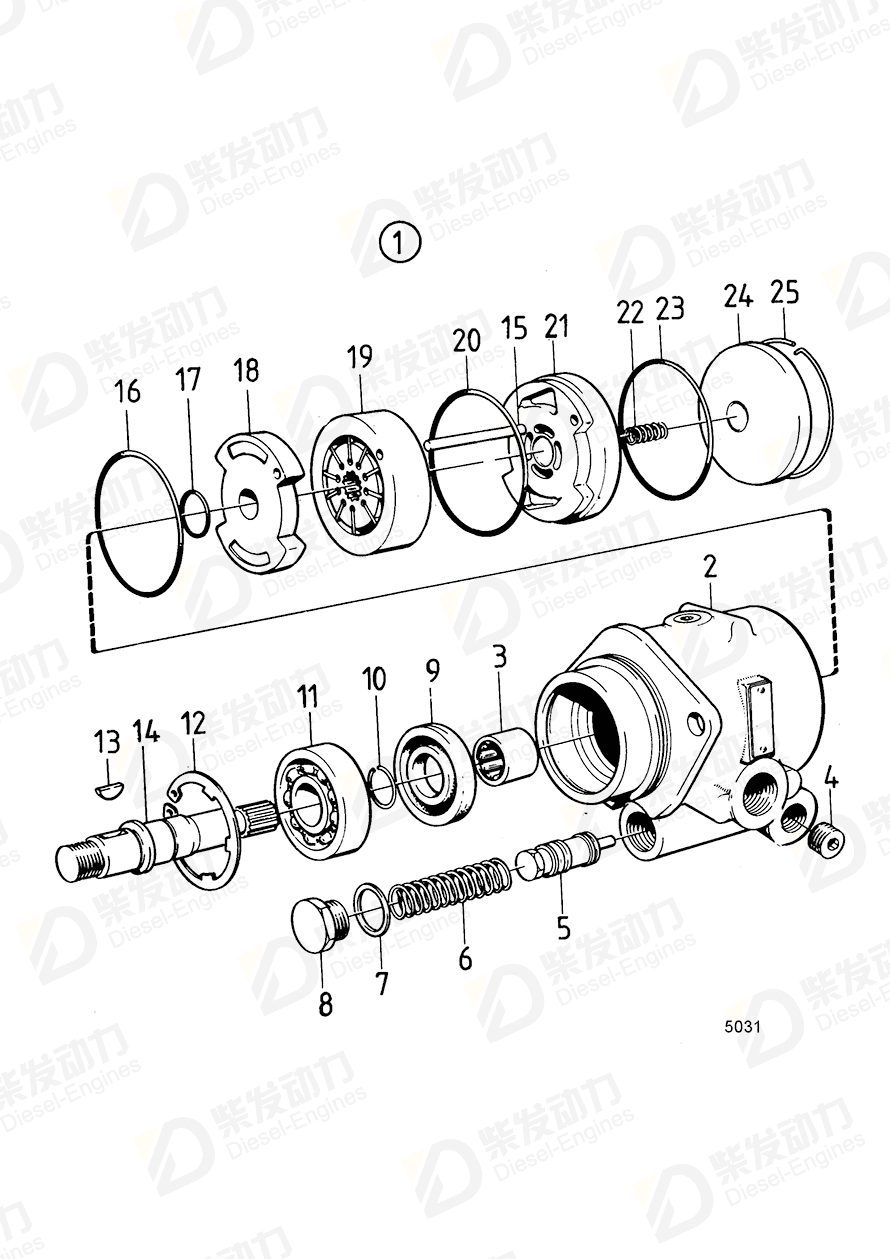

| No. | Part Name | Part Number | Qty | Description |
| 1 | Hydraulic pump | 843888 | 1 | |
| 3 | Needle roller bearin | 183354 | 1 | |
| 5 | Piston | 6648870 | 1 | REMPLAC%E1 PAR 1pc 844280 1pc 844278 |
| 5 | Piston | 6648871 | 1 | Replaced by 1pc 844280, 1pc 844279. |
| 6 | Plate | 681421 | 1 | |
| 7 | Gasket | 681430 | 1 | |
| 8 | Plug | 681429 | 1 | |
| 10 | Snap ring | 681411 | 1 | |
| 11 | Ball bearing | 183731 | 1 | |
| 12 | Lock ring | 323472 | 1 | |
| 13 | Key | 346881 | 1 | |
| 14 | Shaft | 1505356 | 1 | |
| 15 | Pin | 1505358 | 1 | |
| 16 | O-ring | 681416 | 1 | |
| 17 | O-ring | 681418 | 1 | |
| 18 | Plate | 681417 | 1 | |
| 20 | O-ring | 681420 | 1 | |
| 21 | Plate | 681421 | 1 | |
| 22 | Spring | 681422 | 1 | |
| 23 | O-ring | 681423 | 1 | |
| 24 | Cover | 681424 | 1 | |
| 25 | Retaining ring | 681425 | 1 |
| Item | Part Name | Part No. |
| 15 | Pin 1505358 | 1505358 |
| Details | |
| Engine model | TD40A |
| Application | Hydraulic Pump Hydraulic Pump, Components Servo Pump and Installation Components |
