Pin 466401

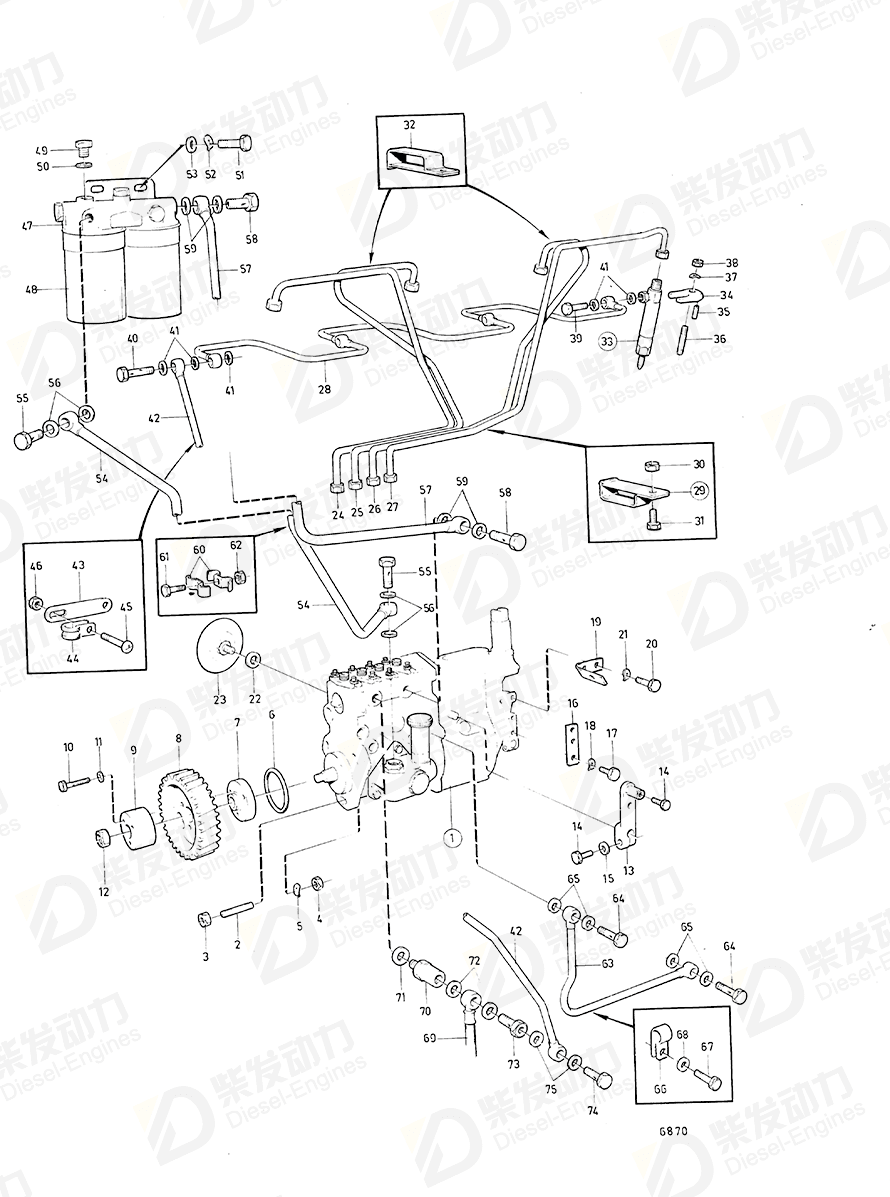

| No. | Part Name | Part Number | Qty | Description |
| 1 | Injection pump | 4881119 | 1 | |
| 2 | Stud | 953261 | 3 | |
| 3 | Hexagon nut | 955835 | 3 | |
| 4 | Hexagon nut | 955827 | 3 | AQ115A MOXXXX/86909-., Repl by 1pc 840539 bracket (8 holes), 9PCS 941907 6PCS 9552 97, 2pcs 955298. |
| 5 | Spring washer | 942336 | 3 | |
| 6 | O-ring | 1698556 | 1 | |
| 7 | Hub | 4804764 | 1 | |
| 8 | Gear | 4804556 | 1 | See group 2C |
| 9 | Ring | 785750 | 1 | |
| 10 | Hexagon screw | 970954 | 3 | L=60mm, (955324) |
| 11 | Washer | 15219 | 3 | |
| 13 | Lever | 4770510 | 1 | Replaced by 1pc 207711-lever,1pc 955891-lever and 1pc 329728-retainer |
| 14 | Hexagon screw | 955637 | 2 | |
| 15 | Washer | 955893 | 1 | |
| 16 | Lever | 4939282 | 1 | |
| 17 | Hexagon screw | 955271 | 2 | |
| 18 | Spring washer | 941906 | 2 | |
| 19 | Anchorage | 4939275 | 1 | |
| 20 | Hexagon screw | 955269 | 2 | For 1570594 |
| 21 | Spring washer | 941906 | 2 | |
| 22 | Gasket | 969011 | 1 | |
| 23 | Pressure equalizer | 477173 | 1 | (466398) |
| 24 | Delivery pipe | 4804748 | 1 | |
| 25 | Delivery pipe | 4804749 | 1 | |
| 26 | Delivery pipe | 4804750 | 1 | |
| 27 | Delivery pipe | 4804751 | 1 | |
| 28 | Leak-off pipe | 4804582 | 1 | |
| 29 | Clamp | 4780054 | 1 | |
| 30 | Cross recessed screw | 956092 | 1 | (241793) |
| 31 | Hexagon nut | 955781 | 1 | |
| 32 | Clamp | 4786764 | 2 | |
| 33 | Injector | 4880894 | 4 | |
| 34 | Yoke | 469797 | 4 | (466399) |
| 35 | Pin | 466401 | 4 | |
| 36 | Stud | 466400 | 4 | |
| 37 | Spring washer | 942336 | 4 | |
| 38 | Lock nut | 971086 | 4 | (961992) |
| 39 | Hollow screw | 74033 | 3 | |
| 40 | Hollow screw | 74034 | 1 | D42A PP spec. 16053, 867638. |
| 41 | Gasket | 947620 | 9 | (233321) |
| 42 | Fuel line | 4804603 | 1 | |
| 44 | Clamp | 121563 | 1 | |
| 45 | Cross recessed screw | 956094 | 1 | |
| 46 | Hexagon nut | 955781 | 1 | |
| 47 | Filter housing | 471172 | 1 | Repl by 1676832 |
| 48 | Fuel filter | 466987 | 2 | (243004) |
| 49 | Plug | 960630 | 3 | Replaced by 1 PC 843512,1 ST 191026. |
| 50 | Gasket | 969011 | 3 | |
| 51 | Hexagon screw | 940162 | 2 | MO-XXXXX/105194 |
| 52 | Spring washer | 942336 | 2 | |
| 53 | Washer | 940097 | 2 | |
| 54 | Fuel line | 4804599 | 1 | |
| 55 | Hollow screw | 25167 | 2 | |
| 56 | Gasket | 969011 | 4 | |
| 57 | Fuel line | 4804601 | 1 | |
| 58 | Hollow screw | 25167 | 2 | |
| 59 | Gasket | 969011 | 4 | |
| 60 | Spring washer | 941905 | 2 | Replaced by 1306630, AQ125A USA MO-7545816/XXXX. AQ125A MO-7546500/XXXX. |
| 61 | Cross recessed screw | 956094 | 1 | |
| 62 | Hexagon nut | 955781 | 1 | |
| 63 | Oil pipe | 4804757 | 1 | |
| 64 | Hollow screw | 48634 | 2 | |
| 65 | Gasket | 947281 | 4 | |
| 66 | Clamp | 940374 | 1 | |
| 67 | Hexagon screw | 955511 | 1 | TD CO gear |
| 68 | Washer | 955893 | 1 | |
| 69 | Fuel hose | 4774660 | 1 | |
| 70 | Overflow valve | 35096 | 1 | |
| 71 | Gasket | 969011 | 1 | |
| 72 | Gasket | 969011 | 2 | |
| 73 | Hollow screw | 16496 | 1 | |
| 74 | Hollow screw | 74033 | 1 | |
| 75 | Gasket | 947620 | 2 | (233321) |
| Item | Part Name | Part No. |
| 35 | Pin 466401 | 466401 |
| Details | |
| Engine model | D70CHC D70CRC TD45B TD60B TD60D TD60D-83 TD70CHC TD70CRC TD70G TD70G-83 TID60D TID60DG TID70G |
| Application | Fuel Pipes-Fuel Injectors Spec.867578 Fuel System Fuel System: A Fuel System: B Fuel System: C Fuel System: D |
