Pin 950543

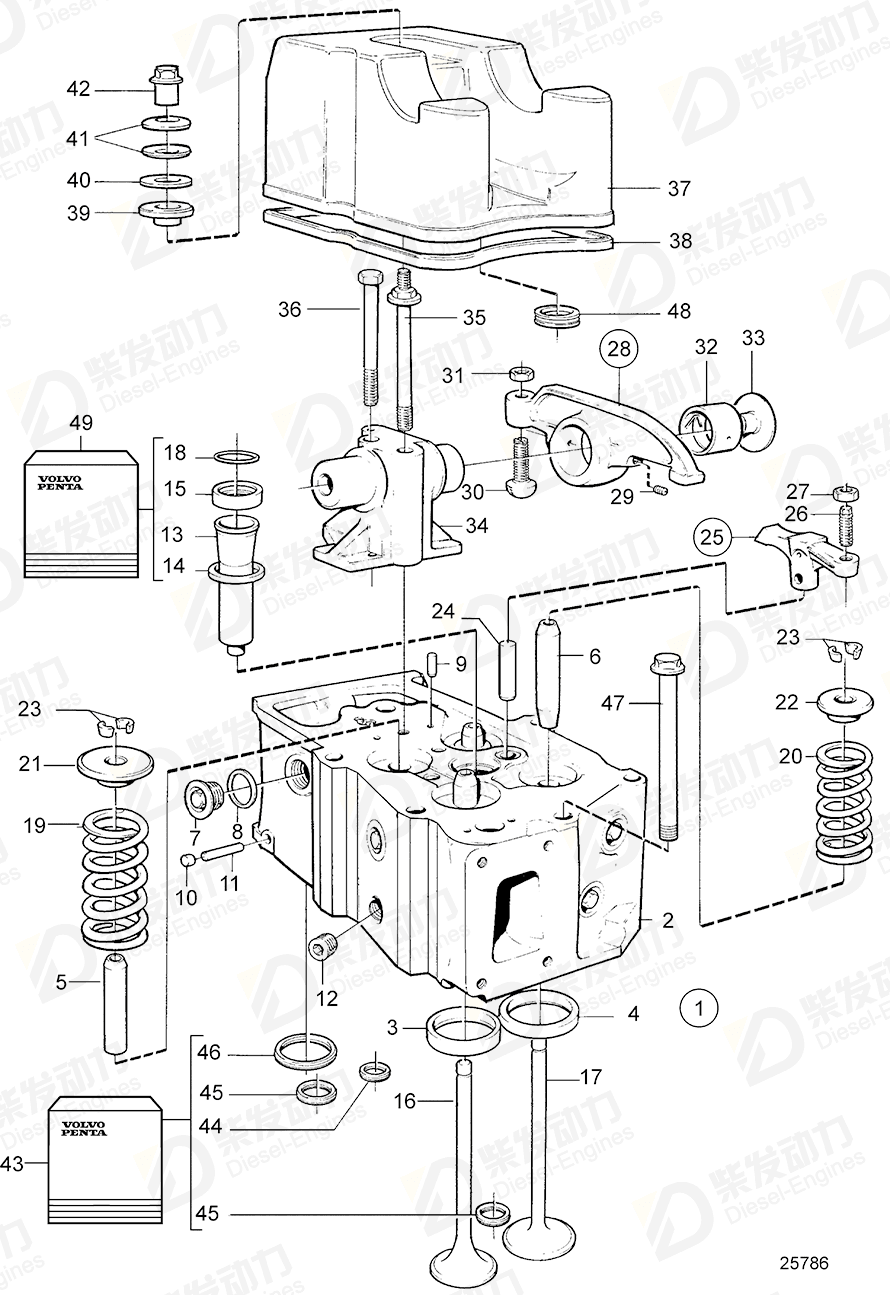

| No. | Part Name | Part Number | Qty | Description |
| 1 | Cylinder head | 3803288 | 6 | SNXXXXXXXXXX/14387- |
| 3 | Valve seat, exhaust | 1556149 | 12 | Std |
| 3 | Valve seat, exhaust | 1556333 | 12 | O.S=0,20mm |
| 4 | Valve seat, intake | 1556148 | 12 | Std |
| 4 | Valve seat, intake | 1556332 | 12 | O.S=0,20mm |
| 5 | Valve guide, exhaust | 20355015 | 12 | (1556604) |
| 6 | Valve guide, intake | 20355012 | 12 | (1556607) |
| 7 | Plug | 1556989 | 24 | (1556860) |
| 8 | Gasket | 468463 | 24 | |
| 9 | Pin | 950543 | 12 | |
| 10 | Plug | 955077 | 6 | |
| 11 | Pin | 1543492 | 6 | |
| 12 | Plug | 3964715 | 12 | (1543941) |
| 13 | Copper sleeve kit, fuel injector | 276836 | 6 | See group 99 |
| 13 | Nozzle sleeve | 1543223 | 6 | |
| 14 | Sealing ring | 1543225 | 6 | |
| 15 | Ring | 1543606 | 6 | |
| 16 | Exhaust valve | 863702 | 12 | |
| 17 | Inlet valve | 1556813 | 12 | |
| 18 | O-ring | 1543574 | 6 | |
| 19 | Valve spring, exhaust | 1543870 | 12 | |
| 20 | Valve spring, intake | 1543872 | 12 | |
| 21 | Valve spring washer, exhaust | 1543866 | 12 | |
| 22 | Valve spring washer, intake | 1543046 | 12 | |
| 23 | Valve collet | 1543078 | 48 | |
| 24 | Pin | 1556073 | 12 | |
| 25 | Valve caliper | 1556167 | 12 | |
| 26 | Adjusting screw | 1543368 | 12 | |
| 27 | Hexagon nut | 946911 | 12 | |
| 28 | Rocker arm | 1543441 | 12 | |
| 29 | Nozzle | 1543723 | 24 | |
| 30 | Ball screw | 1543372 | 12 | |
| 31 | Hexagon nut | 946911 | 12 | |
| 32 | Bushing | 1543443 | 12 | |
| 33 | Plug | 1543508 | 12 | |
| 34 | Bearing bracket | 1543476 | 6 | |
| 35 | Flange screw | 1556078 | 6 | |
| 36 | Flange screw | 975105 | 6 | M10x100mm |
| 37 | Valve cover | 1543469 | 6 | |
| 38 | Gasket | 1543581 | 6 | |
| 39 | Damping ring | 1543582 | 6 | |
| 40 | Washer | 1543657 | 6 | |
| 41 | Disc spring | 943819 | 12 | |
| 42 | Cap nut | 1543654 | 6 | |
| 43 | Sealing ring kit, cylinder head | 276924 | 6 | (271085) |
| 44 | Sealing ring | 1543576 | 6 | O.D=22,4mm |
| 45 | Sealing ring | 1543566 | 12 | O.S=32,5mm |
| 46 | Sealing ring | 1543580 | 12 | O.S=54,6mm |
| 47 | Flange screw | 1556956 | 36 | |
| 48 | Sealing ring, injector-valve cover | 1543751 | 6 | |
| 49 | Copper sleeve kit, fuel injector | 276836 | 6 | See group 99 |
| Item | Part Name | Part No. |
| 9 | Pin 950543 | 950543 |
| Details | |
| Engine model | D100A, TD100A D100B D100BHC, D100BRC D120A DH10A DH10A, THD102KD, THD102KB TAD1030G TAD1030GE TAD1030GE, TAD1031GE, TAD1032GE TAD1030P TAD1031GE, TAD1032GE TAD120AHC TAD120BHC TAD120CHC TAD121CHC TAD1230G, TAD1231GE, TAD1232GE TAD1230G, TD1210G, TWD1210G, TWD1211G, TAD1231GE, TAD1232GE TAD1230P, TWD1210P, TWD1211P TAD1630P, TWD1630P TAD1630V, TWD1630V TAD1631G, TAD1631GE TD100AHC, TD100ARC TD100CHC TD100CRC TD100G-87 TD100G-87, TAD1030V, TWD1031VE, TAD1030VE TD1010G, TWD1010G TD1030ME TD1030ME, TWD1030ME TD1030VE, TAD1030V, TWD1031VE TD120A TD120AHC TD120ARC TD120BHC TD120BRC TD120G TD120G, TD120GG TD120GG TD120HP-86, TD121G, TD121G-87, TD121GG, TD121GG-86, TD121GG-87, TD121GGP, TD121GGP-87, TD121GP-87, TD121GPB-87 TD120HP-86, TD121G, TD121GG, TD121GG-86, TD121GGP, TID121K, TID121KG, TID121KP, TID121KGP, TID121LG, TID121LGP, TID121LP TD120HPP TD1210G TD1210G, TWD1210G, TWD1211G TD121CHC TD121CRC TD121G-87, TD121GG-87, TD121GGP-87, TD121GP-87, TD121GPB-87, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG-87, TID121LG UT-87, TID121LGP-87, TID121LP-87, TID121LPB-87 TD121G-87, TWD1210V, TWD1211V, TAD1230V TD121G-87, TWD1210V, TWD1211V, TAD1230V, TWD1230VE, TWD1231VE TD121GP-87 TD121GP-87, TWD1210P, TWD1211P TD164KAE THD102KD, THD102KB TID120FG TID120HPP TID121FG TID121K, TID121KG, TID121KP, TID121K-87, TID121KG-87, TID121KGP, TID121KP-87, TID121KPB-87, TID121L-87, TID121LG, TID121LG-87, TID121LG UT-87, TID121LGP, TID121LGP-87, TID121LP, TID121LP-87, TID121LPB-87 TID162AG, TID162AGP TID162AP, TID162APB TWD1030ME TWD1210G, TWD1211G TWD1230ME TWD1230VE, TWD1231VE TWD1620G TWD1630G, TAD1630G, TAD1630GE |
| Application | Cylinder Block Cylinder Block and Related Parts CYLINDER BLOCK AND RELATED PARTS: A CYLINDER BLOCK AND RELATED PARTS: B Cylinder Block, Earlier Production Cylinder Block: 422960 Cylinder Block: 479650 Cylinder Block: 479752 Cylinder Block: A Cylinder Block: B Cylinder Block: C Cylinder Head Cylinder Head: 1556070 Cylinder Head: 1556150 Cylinder Head: 1556590 Cylinder Head: 1556600 Cylinder Head: A Cylinder Head: B Cylinder Head: C Cylinder Head: D |
Related Products
Tags: Pin, Volvo Penta, 950543
