Pipe 21090006

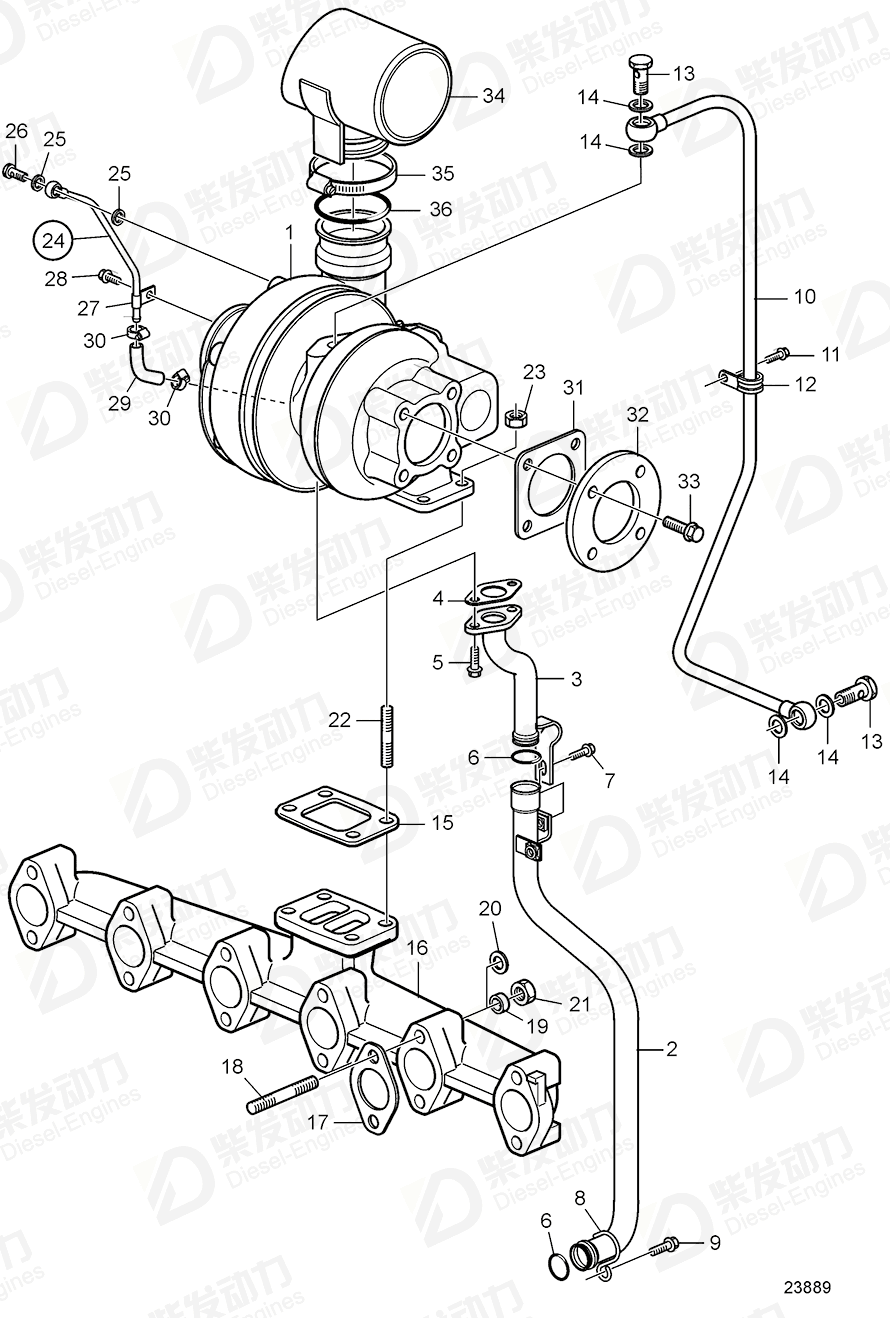

| No. | Part Name | Part Number | Qty | Description |
| 1 | Turbocharger | 3801140 | 1 | With wastegate. |
| 1 | Turbocharger | 3801158 | 1 | |
| 1 | Turbocharger | 20917417 | 1 | |
| 2 | Return line | 20799043 | 1 | |
| 3 | Return line | 20799040 | 1 | |
| 3 | Oil line | 21100925 | 1 | SN5310377483- |
| 4 | Plane gasket | 20405790 | 1 | |
| 5 | Flange screw | 984734 | 2 | |
| 6 | O-ring | 20405822 | 2 | |
| 7 | Flange screw | 20405898 | 1 | |
| 8 | Retainer | 20405789 | 1 | |
| 9 | Flange screw | 20405792 | 1 | |
| 10 | Oil line | 20798726 | 1 | |
| 10 | Oil line | 21100930 | 1 | SN5310377483- |
| 11 | Flange screw | 20405792 | 1 | |
| 12 | Clamp | 20450987 | 1 | |
| 13 | Hollow screw | 25167 | 2 | |
| 14 | Sealing ring | 21022795 | 4 | |
| 15 | Gasket | 20559835 | 1 | |
| 16 | Exhaust pipe | 20464423 | 1 | |
| 17 | Gasket | 20557208 | 6 | |
| 18 | Stud | 20405587 | 12 | |
| 18 | Stud | 20575919 | 12 | |
| 19 | Spacer sleeve | 20847865 | 12 | |
| 20 | Washer | 20799731 | 12 | |
| 21 | Nut retainer | 20505959 | 12 | (20405593) |
| 22 | Stud | 20799733 | 4 | |
| 23 | Hexagon nut | 20412308 | 4 | |
| 24 | Pipe | 21090006 | 1 | |
| 25 | Sealing ring | 20971248 | 2 | |
| 26 | Hollow screw | 888767 | 1 | |
| 27 | Hose clamp | 21090008 | 1 | |
| 28 | Flange screw | 20405898 | 1 | |
| 29 | Hose | 21090005 | 1 | L=215mm |
| 30 | Hose clamp | 20405568 | 2 | |
| 31 | Gasket | 20405969 | 1 | |
| 32 | Flange | 20405916 | 1 | |
| 33 | Flange screw | 20405874 | 4 |
| Item | Part Name | Part No. |
| 24 | Pipe 21090006 | 21090006 |
| Details | |
| Engine model | TAD650VE, TAD660VE TAD750VE, TAD760VE |
| Application | Exhaust Manifold and Turbocharger. High Mounted Turbo -SN10520359 Exhaust Manifold and Turbocharger. High Mounted Turbo SN10520360- Exhaust Manifold and Turbocharger. High Mounted Turbo. Exhaust Outlet Front SN-10958883 Exhaust Manifold and Turbocharger. Low Mounted Turbo Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front SN10570847- Exhaust Manifold and Turbocharger. Low Mounted Turbo. Exhaust Outlet Front. Charge Air Upwards. |
Related Products
Tags: Pipe, Volvo Penta, 21090006
