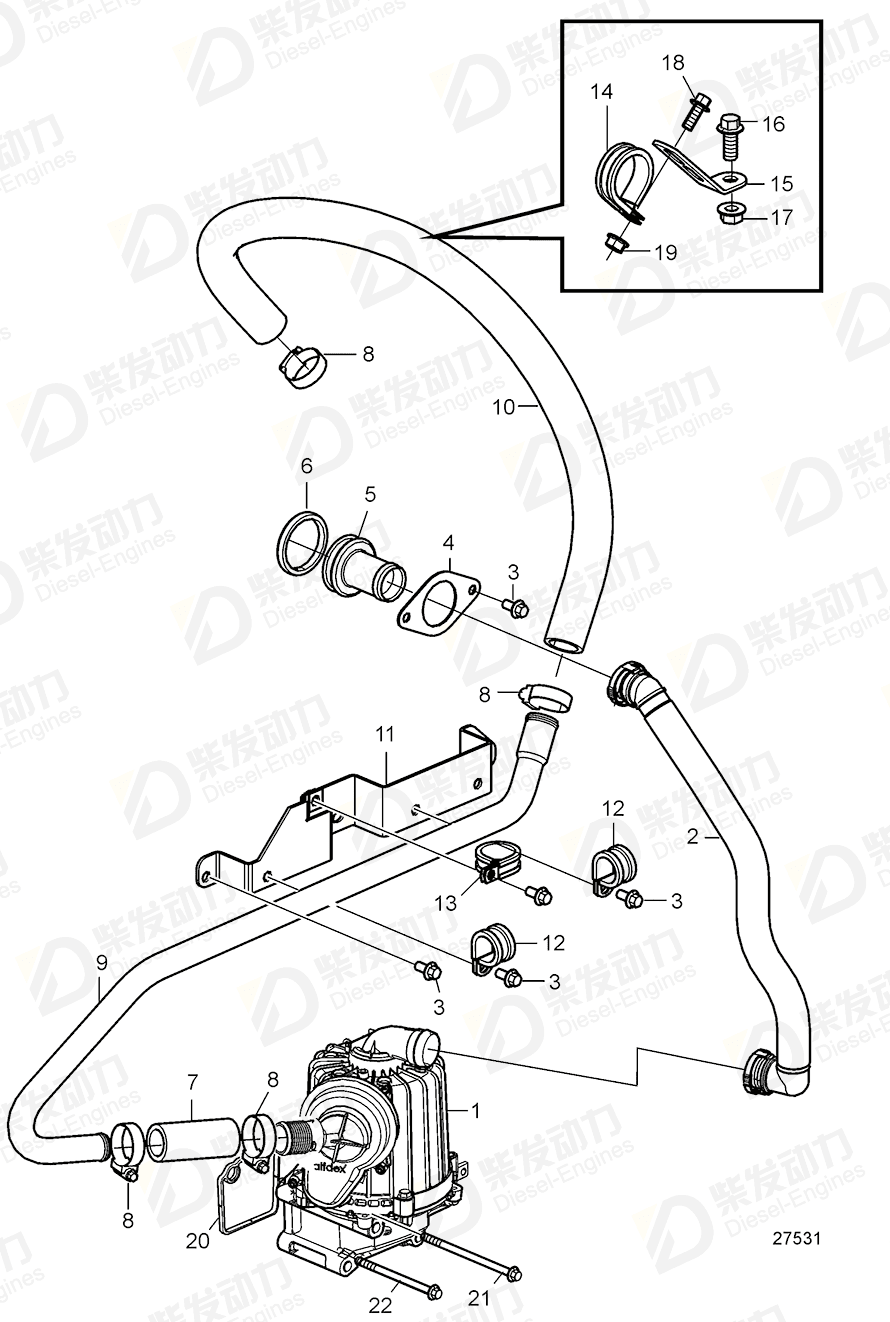

Pipe 21866004
| No. | Part Name | Part Number | Qty | Description |
| 1 | Separator | 21524001 | 1 | |
| 2 | Pipe | 21718395 | 1 | |
| 3 | Flange screw | 984733 | 8 | |
| 4 | Flange | 20519944 | 1 | |
| 5 | Adapter | 21681585 | 1 | |
| 6 | Sealing ring | 20723207 | 1 | |
| 7 | Hose | 20580933 | 1 | |
| 8 | Hose clamp | 994560 | 4 | |
| 9 | Pipe | 21866004 | 1 | |
| 10 | Hose | 942707 | 1 | L=700mm |
| 11 | Bracket | 21865927 | 1 | |
| 12 | Clamp | 947827 | 2 | 25,4mm |
| 13 | Clamp | 949997 | 1 | |
| 14 | Clamp | 941976 | 1 | |
| 15 | Bracket | 965577 | 1 | |
| 16 | Flange screw | 984753 | 1 | |
| 17 | Flange nut | 990941 | 1 | |
| 18 | Flange screw | 984734 | 1 | |
| 19 | Flange nut | 990940 | 1 | |
| 20 | Gasket | 20532891 | 1 | |
| 21 | Flange screw | 984748 | 2 | |
| 22 | Flange screw | 984744 | 2 |
| Item | Part Name | Part No. |
| 9 | Pipe 21866004 | 21866004 |
| Details | |
| Engine model | TAD1643VE-B TAD1650VE-B, TAD1651VE TAD1670VE, TAD1671VE, TAD1672VE |
| Application | Crankcase Ventilation, Closed |
