Pipe 22185749

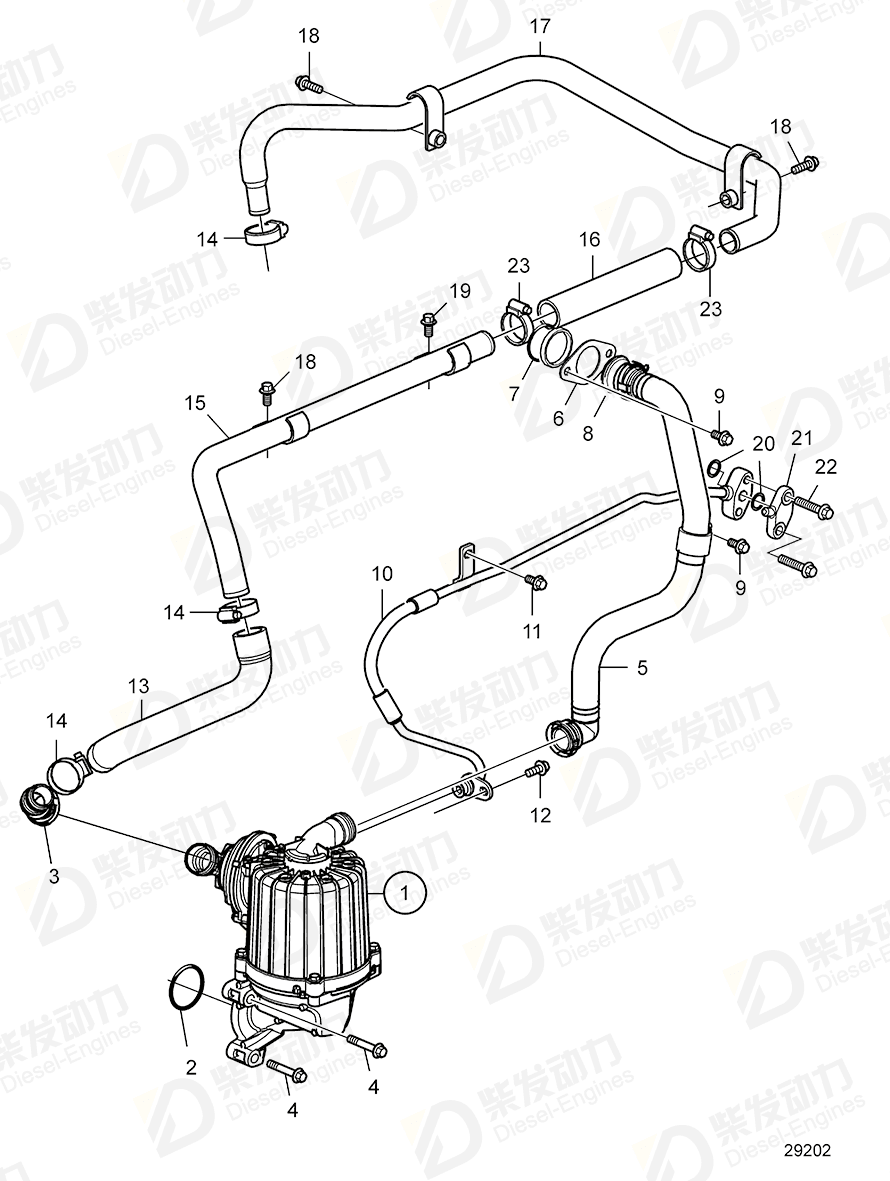

| No. | Part Name | Part Number | Qty | Description |
| 1 | Separator | 21679520 | 1 | |
| 2 | Gasket | 20866262 | 1 | |
| 3 | Quick connecting kit | 21615911 | 1 | |
| 4 | Flange screw | 994385 | 3 | L=45mm |
| 5 | Pipe | 21831557 | 1 | |
| 6 | Flange | 21725057 | 1 | |
| 7 | Adapter | 22116011 | 1 | |
| 8 | Sealing ring | 22194880 | 1 | |
| 9 | Flange screw | 984733 | 3 | |
| 10 | Pressure hose | 22177423 | 1 | |
| 11 | Flange screw | 994383 | 1 | |
| 12 | Flange screw | 984734 | 1 | |
| 13 | Hose | 3847764 | 1 | |
| 14 | Hose clamp | 994560 | 3 | |
| 15 | Pipe | 22187541 | 1 | |
| 16 | Hose | 22218504 | 1 | |
| 17 | Pipe | 22185749 | 1 | |
| 18 | Flange screw | 984735 | 3 | |
| 19 | Flange screw | 984753 | 1 | |
| 20 | O-ring | 968007 | 2 | |
| 21 | Flange plate | 20735587 | 1 | |
| 22 | Flange screw | 984738 | 2 | |
| 23 | Hose clamp | 994562 | 2 | Spec. 9882, 9961., (951793) |
| Item | Part Name | Part No. |
| 17 | Pipe 22185749 | 22185749 |
| Details | |
| Engine model | TAD1140VE, TAD1141VE, TAD1142VE TAD1150VE, TAD1151VE, TAD1152VE TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Crankcase Ventilation, Closed |
