Pipe 22189561

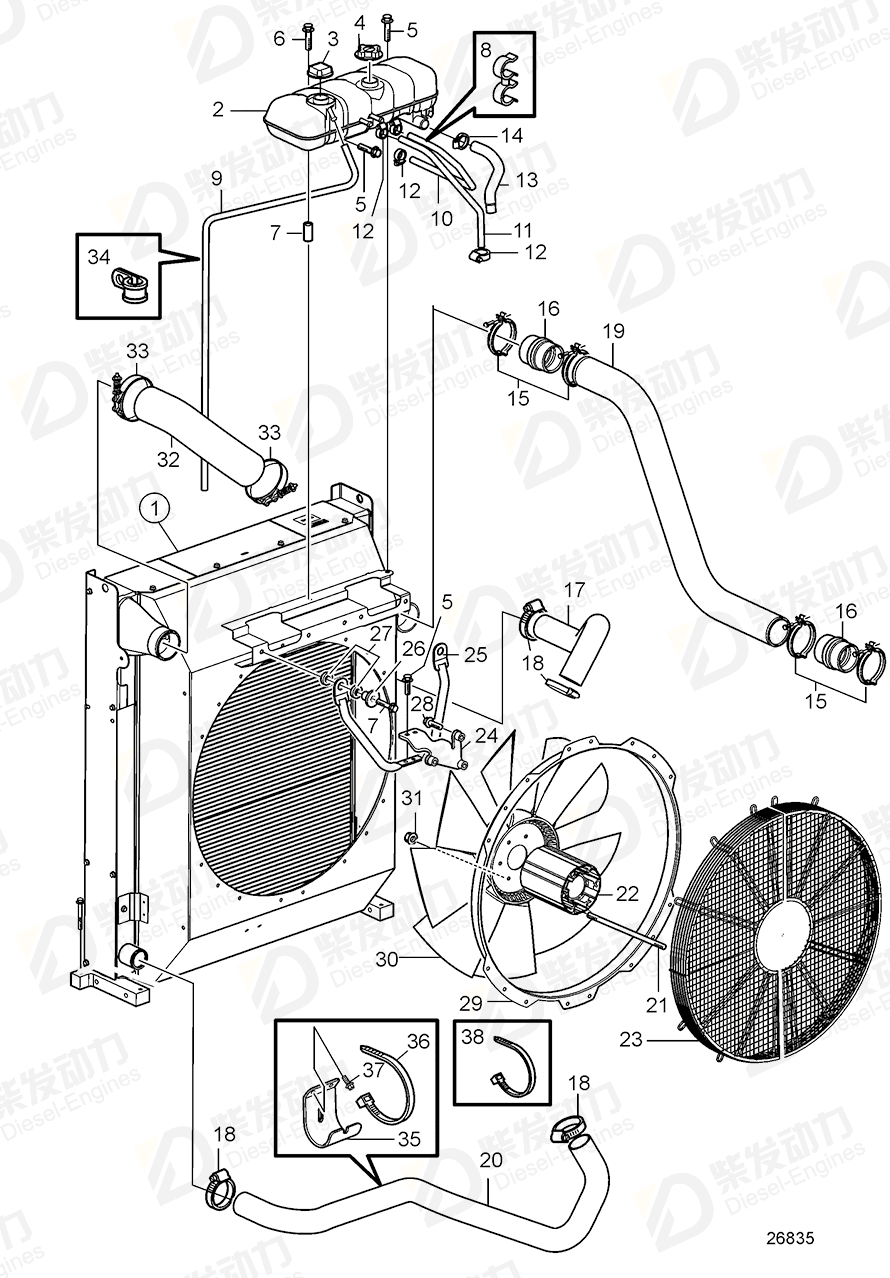

| No. | Part Name | Part Number | Qty | Description |
| 2 | Expansion tank | 1674916 | 1 | |
| 3 | Pressure cap | 1674083 | 1 | |
| 4 | Filler cap | 1674922 | 1 | |
| 5 | Flange screw | 984753 | 4 | |
| 6 | Flange screw | 984757 | 7 | |
| 7 | Spacer sleeve | 855289 | 1 | |
| 8 | Retainer | 9205207 | 1 | |
| 9 | Rubber hose | 943367 | 1 | L=1700mm |
| 10 | Rubber hose | 943367 | 1 | L=1700mm |
| 11 | Rubber hose | 943367 | 1 | L=1700mm |
| 12 | Hose clamp | 994556 | 5 | |
| 13 | Hose | 21852544 | 1 | |
| 14 | Hose clamp | 994561 | 2 | |
| 15 | Hose clamp | 865575 | 4 | |
| 16 | Charge air hose | 865127 | 2 | |
| 17 | Hose | 22191103 | 1 | |
| 18 | Hose clamp | 994565 | 4 | |
| 19 | Pipe | 22189561 | 1 | |
| 20 | Hose | 22028543 | 1 | |
| 21 | Stud | 981590 | 6 | |
| 22 | Fan hub | 3837740 | 1 | |
| 23 | Fan guard | 21851234 | 2 | |
| 24 | Bracket | 21852547 | 1 | |
| 25 | Brace | 21942270 | 1 | |
| 26 | Spacer sleeve | 22085505 | 2 | |
| 27 | Rubber bushing | 866857 | 4 | |
| 28 | Flange screw | 984755 | 3 | |
| 29 | Fan ring | 21851231 | 1 | |
| 30 | Fan | 3827492 | 1 | Pusher type. |
| 31 | Flange nut | 990941 | 6 | |
| 32 | Hose | 22168438 | 1 | TAD136xVE, TAD137xVE |
| 32 | Hose | 22168440 | 1 | TAD134xVE |
| 33 | Hose clamp | 20435760 | 2 | |
| 34 | Clamp | 942810 | 2 | |
| 35 | Bracket | 22035419 | 2 | |
| 36 | Cable tie | 980464 | 1 | |
| 37 | Flange screw | 984734 | 1 | |
| 38 | Cable tie | 948211 | 1 |
| Item | Part Name | Part No. |
| 19 | Pipe 22189561 | 22189561 |
| Details | |
| Engine model | TAD1340VE, TAD1341VE, TAD1342VE, TAD1343VE, TAD1344VE, TAD1345VE, TAD1360VE, TAD1361VE, TAD1362VE, TAD1363VE, TAD1364VE, TAD1365VE TAD1350VE TAD1351VE, TAD1352VE, TAD1353VE TAD1352VE TAD1360VE TAD1361VE TAD1363VE TAD1371VE, TAD1372VE, TAD1373VE, TAD1374VE, TAD1375VE |
| Application | Radiator and Fan. Pusher. HD Radiator and Fan. Suction HD |
