Pipe 22441844

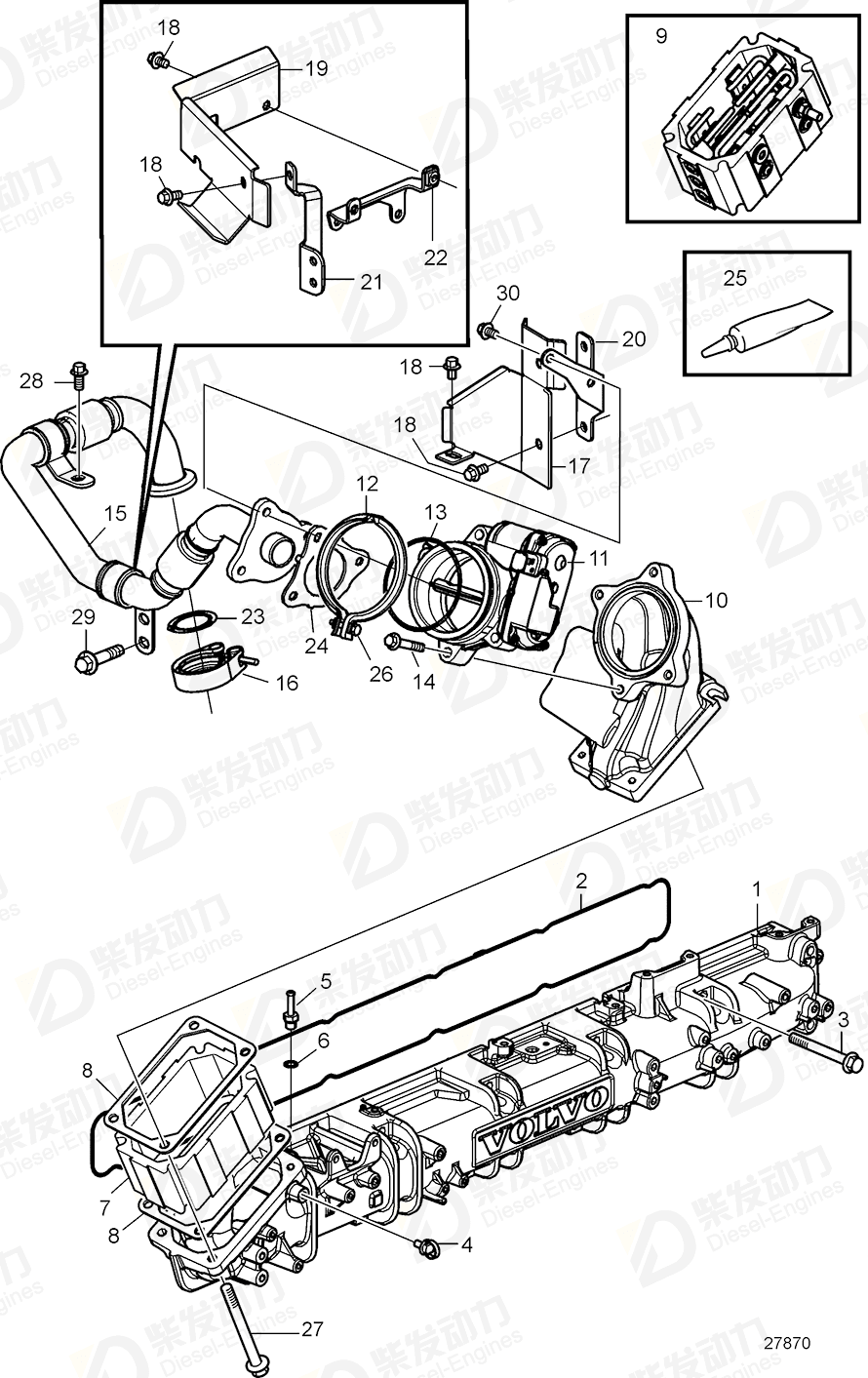

| No. | Part Name | Part Number | Qty | Description |
| 1 | Inlet manifold | 21647366 | 1 | |
| 2 | Gasket | 20850506 | 1 | |
| 3 | Flange screw | 996457 | 12 | |
| 4 | Cable tie | 980881 | 1 | |
| 5 | Hose nipple | 945713 | 1 | |
| 6 | Gasket | 947281 | 1 | |
| 7 | Intermediate housing | 21734948 | 1 | |
| 8 | Plane gasket | 3979639 | 2 | |
| 10 | Mixing chamber | 21857649 | 1 | |
| 11 | Throttle | 22130353 | 1 | |
| 12 | V-clamp | 1676424 | 1 | |
| 13 | O-ring | 948980 | 1 | |
| 14 | Flange screw | 984739 | 4 | |
| 15 | Pipe | 22372144 | 1 | SN-7011347213 |
| 15 | Pipe | 22441844 | 1 | SN7011347214- |
| 16 | V-clamp | 20504406 | 1 | |
| 17 | Heat shield | 21725019 | 1 | |
| 18 | Flange screw | 984732 | 6 | |
| 19 | Heat shield | 21725017 | 1 | |
| 20 | Bracket | 21725011 | 1 | |
| 21 | Bracket | 22401506 | 1 | |
| 22 | Bracket | 22244172 | 1 | |
| 23 | Gasket | 20495666 | 1 | |
| 24 | Gasket | 21724572 | 1 | |
| 25 | Sealant | 1161231 | 1 | 304ml |
| 25 | Sealant | 1161277 | 1 | 20g |
| 26 | Hexagon screw | 994428 | 1 | |
| 27 | Flange screw | 984744 | 4 | |
| 28 | Flange screw | 984734 | 1 | |
| 29 | Flange screw | 984733 | 2 | |
| 30 | Flange screw | 984735 | 3 |
| Item | Part Name | Part No. |
| 15 | Pipe 22441844 | 22441844 |
| Details | |
| Engine model | TAD1170VE, TAD1171VE, TAD1172VE |
| Application | Inlet Manifold, Air Intake Left Side Inlet Manifold, Air Intake Left Side, forward |
| Specification | |
| Descriptions | SN7009347214- SN7011347214- |
